Flat voice and data plate with dust cover for 1 AMP® RJ45 connector ivory Simon 82

REFERENCE NO.: 82005-31

R.P.: Price on request

PACKAGING: 5Units

Variables de unidades de obras ---> -false-false

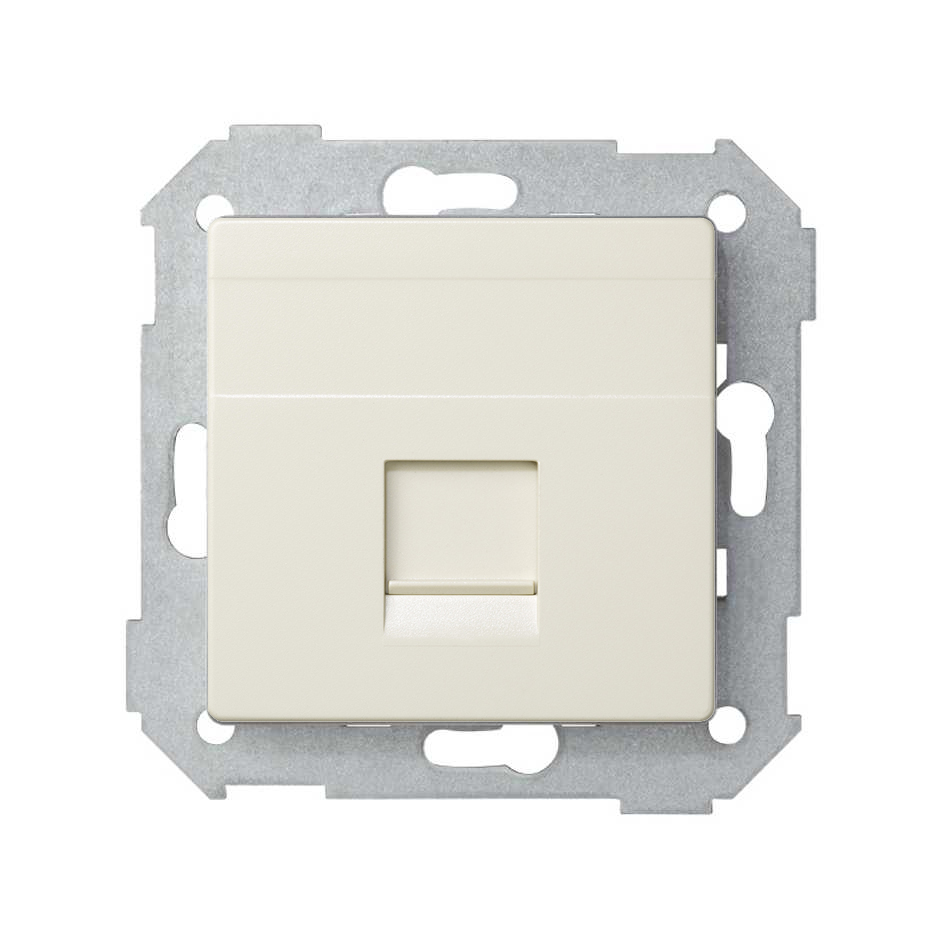

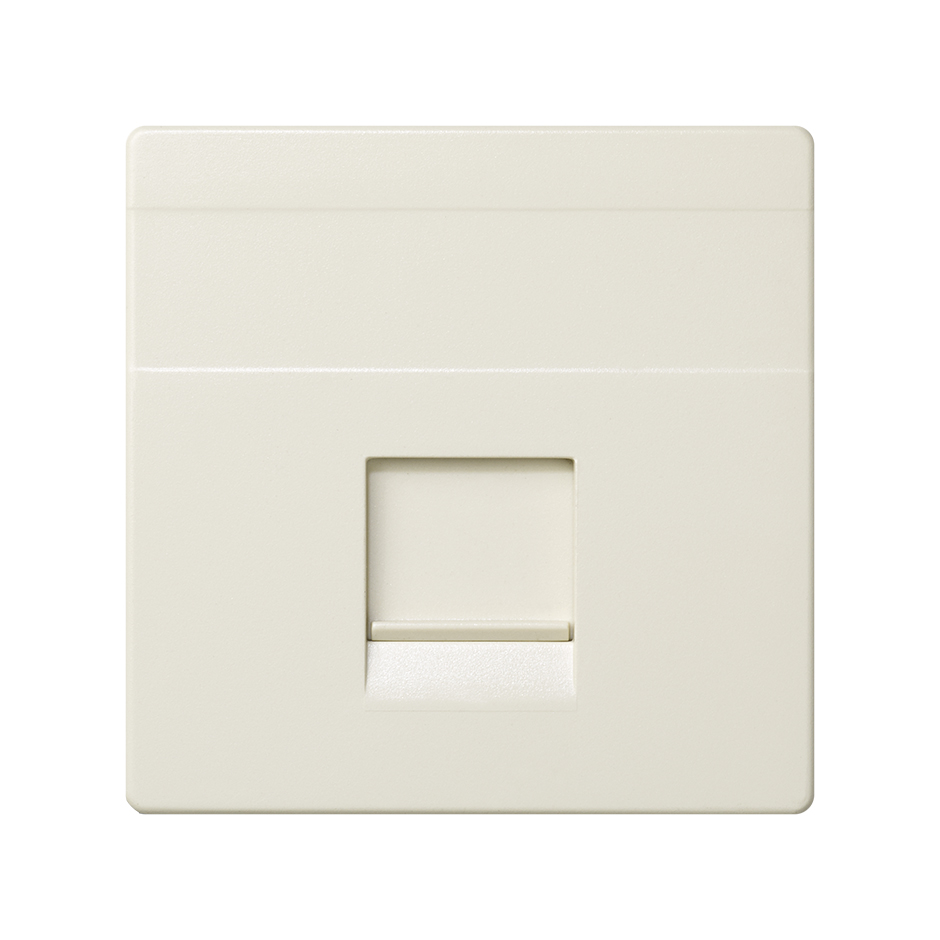

Flat voice and data plate Simon 82 ivory front view


This image represents the combination of different references

Flat voice and data plate Simon 82 ivory packaging

82005-31-placa-voz-datos-plana-con-guardapolvo-1-rj45-amp-marfil-simon-82-frontal_5.jpg

SERIES: Simon 82 FINISH: Ivory MATERIAL: Plastic FORMAT: RJ45 DIMENSIONS: 55x55 mm RJ sockets

75528-39

75540-39

75541-39

75544-39

Product description

A plate must be safe without losing an innovative design that differentiates it from the rest of the competition. These two premises are fulfilled by the flat voice and data plate with dust cover for a connector in ivory colour of the Simon 82 series. This is a type of flat base plate, compatible with AMP connectors and includes an adapted RJ-45 module with a simple connector. Thanks to its dimensions of 55x55 mm, it is a plate suitable for surface and flush mounting, having been its components made of thermoplastic materials. The advantages of this product are endless: It is easy to clean, just a soft cloth slightly moistened in soapy water, it has a very competitive price, unmatched by other similar items; and has a range of minimum and maximum temperatures of -25 º to 50 º C, respectively, although the recommended range is 5º to 40º C. Impossible more for less.

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: Ivory

Format: RJ45

Plate type: Flat

Number of connectors: 1

Compatible with connectors: AMP

Dust shutter: Yes

RJ45 adaptor module: Included

Indicator function: No

Symbol: No

No. of possible elements: 1 element

Compatibility: Simon 75 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Plate

Remarks: Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2011/65/UE RoHS + EN 50581:2012

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 81.000

Wide: 82.000

Depth: 90.000

Box volume: 0.598

Box volume measurement unit: CDM

Net weight of box: 0.195

Unit weight of box: KGM

EAN code: 8421053072257

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No
