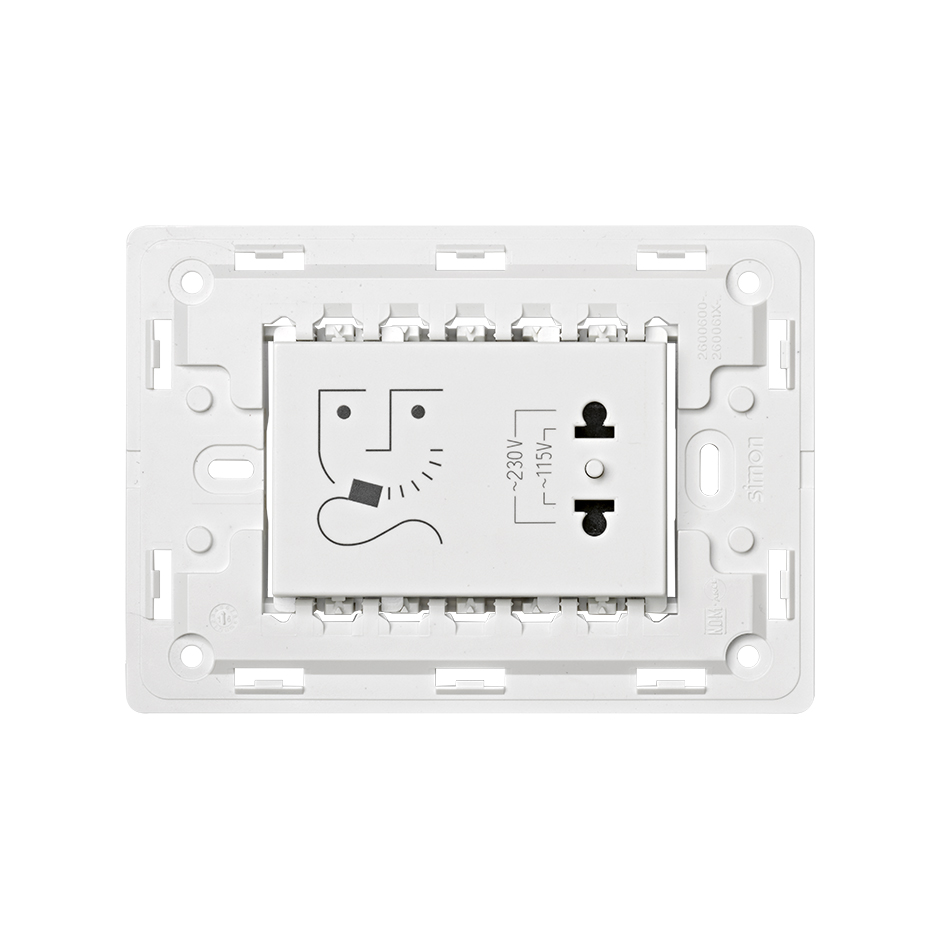

Shaver socket outlet 3 modules white Simon 82
Simon 82 Detail
Simon 82 Nature
Simon 82
-
Compatibility
Simon 82 mechanisms
-
Remarks
It is recommended to choose a frame of the same colour as the selected mechanism.
-
Finish
White
-
Material
Plastic
-
Packaging contents
Mechanism
-
Market available
CE
-
Cable section admitted (mm)
2,5 mm
-
Intensity (A)
16 A
-
IP Rating
IP20
-
Number of possible elements
1 element
-
Operating temperature range (ºC)
5 - 40 ºC
-
Storage temperature range (ºC)
-25 - 50 ºC
-
Type of mechanism
Insertion
-
Version
Single
-
Voltage (V~)
115/230 V~
-
Dimensions (mm)
120 x 85
-
Installation direction
Vertical and horizontal
-
Installation type
Suitable for surface and flush mounting
-
Type of terminal connection
Screw
-
Maintenance
Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.
-
Product net weight
0.47KGM
-
Product gross weight
0.47KGM
-
Product EAN
8421053198971
-
Packaging quantity
1
-
Packaging height
75MMT
-
Packaging width
88MMT
-
Packaging length
158MMT
-
Packaging volume
1042800MMQ
-
Packaging net weight
0.47KGM
-
Packaging gross weight
0.47KGM
-
Packaging EAN
8421053198971
