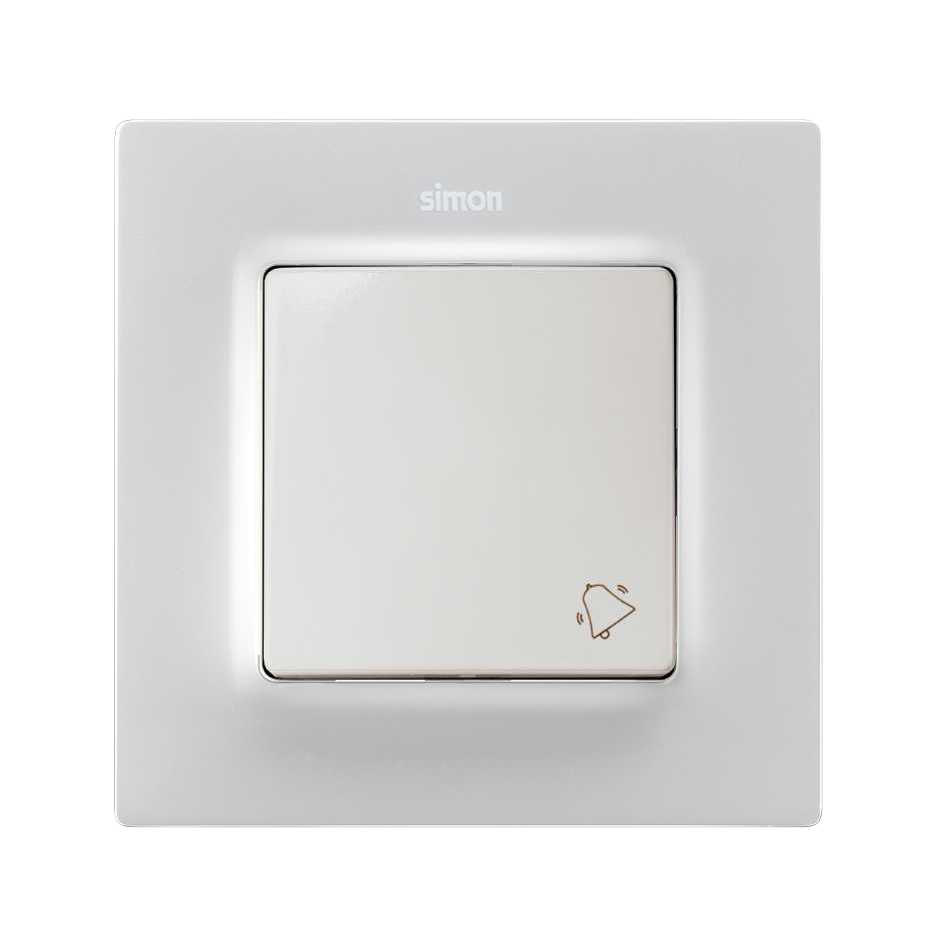

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
8200017-090

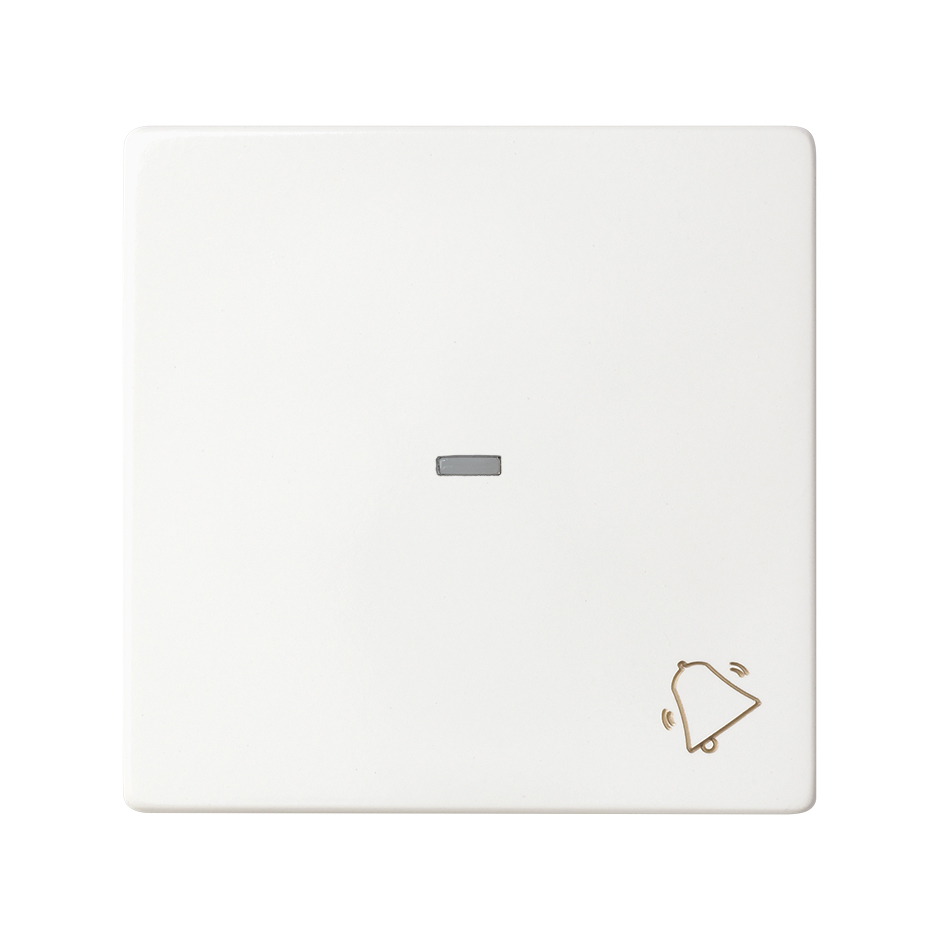

Single rocker for push-button switch with bell Simon 82 Concept

Price/Unit
Price on request
Packaging quantity
10 Units

Available downloads

Technical specifications
8200017-090-datasheet-en.pdf
Product declaration

  1. UES0081.pdf [624KB]

Certificación CE

AENOR 030-002064 20230207.pdf

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82

Simon 82 Concept

Simon 82 Detail

<p class=>Push-button switch 10A 250V~ front view</p>
Ref
75150-39
Push-button switch 10A 250V~ with fast terminal connection system
<p class=>Single-pole switch 10AX 250V~ front view</p>
Ref
75101-39
Single-pole switch 10AX 250V~ with fast terminal connection system
<p class=>Push-button switch 10A 250V~ front view</p>
Ref
7700150-039
Push-button switch 10A 250V~ with 1click® terminal connection system
<p class=>2-way switch 10AX 250V~ front view</p>
Ref
75201-39
2-way switch 10AX 250V~ with fast terminal connection system
<p class=>2-way switch 10AX 250V~ front view</p>
Ref
7700201-039
2-way switch 10AX 250V~ with 1click® terminal connection system
<p class=>Single-pole switch 10AX 250V~ front view</p>
Ref
7700101-039
Single-pole switch 10AX 250V~ with 1click® terminal connection system
Product Information
Downloads
Support
Basic information

  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 7 finishes. It is recommended to choose a frame with the same base colour as the selected rocker.

  • Finish

    Matt white

  • Material

    Thermoplastic

  • Packaging

    Flow pack

  • Packaging contents

    Rocker

Technical information

  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 item

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface or recessed mount

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Guarantee

    3 years

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.019KGM

  • Product gross weight

    0.019KGM

  • Product EAN

    8421053279267

  • Packaging quantity

    10

  • Packaging height

    82MMT

  • Packaging width

    83MMT

  • Packaging length

    223MMT

  • Packaging volume

    1517738MMQ

  • Packaging net weight

    0.19KGM

  • Packaging gross weight

    0.19KGM

  • Packaging EAN

    8421053227978
