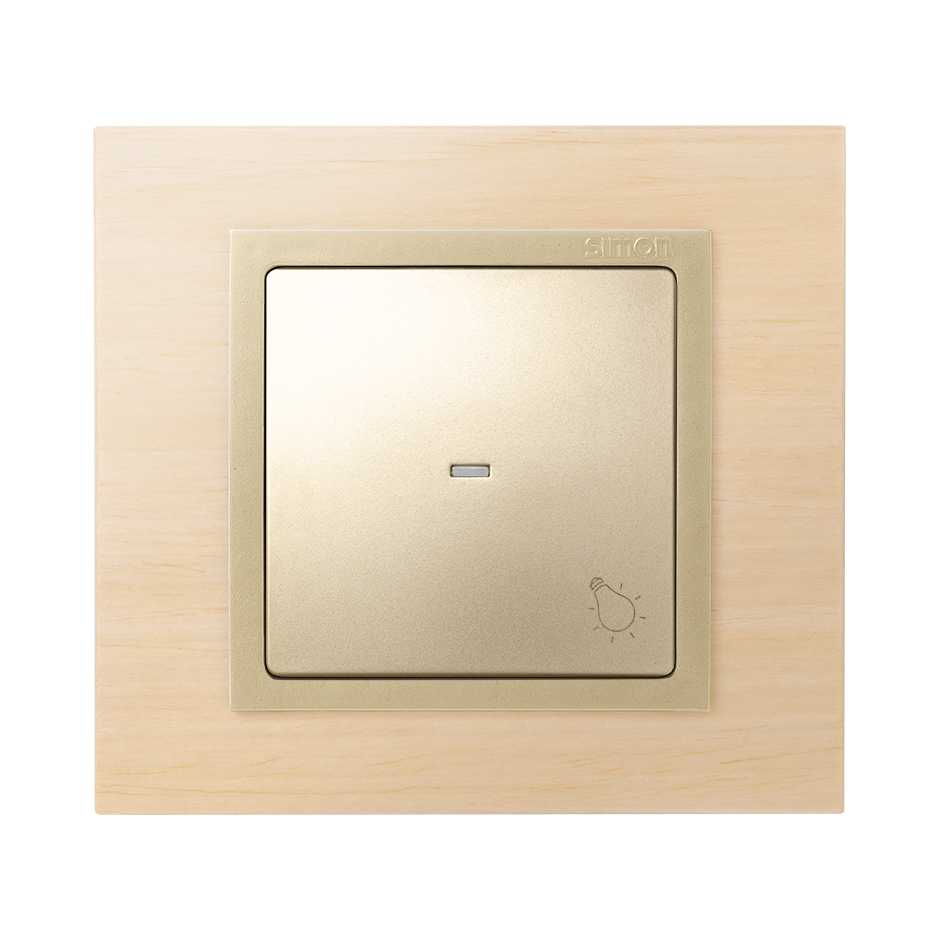

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
8200016-034

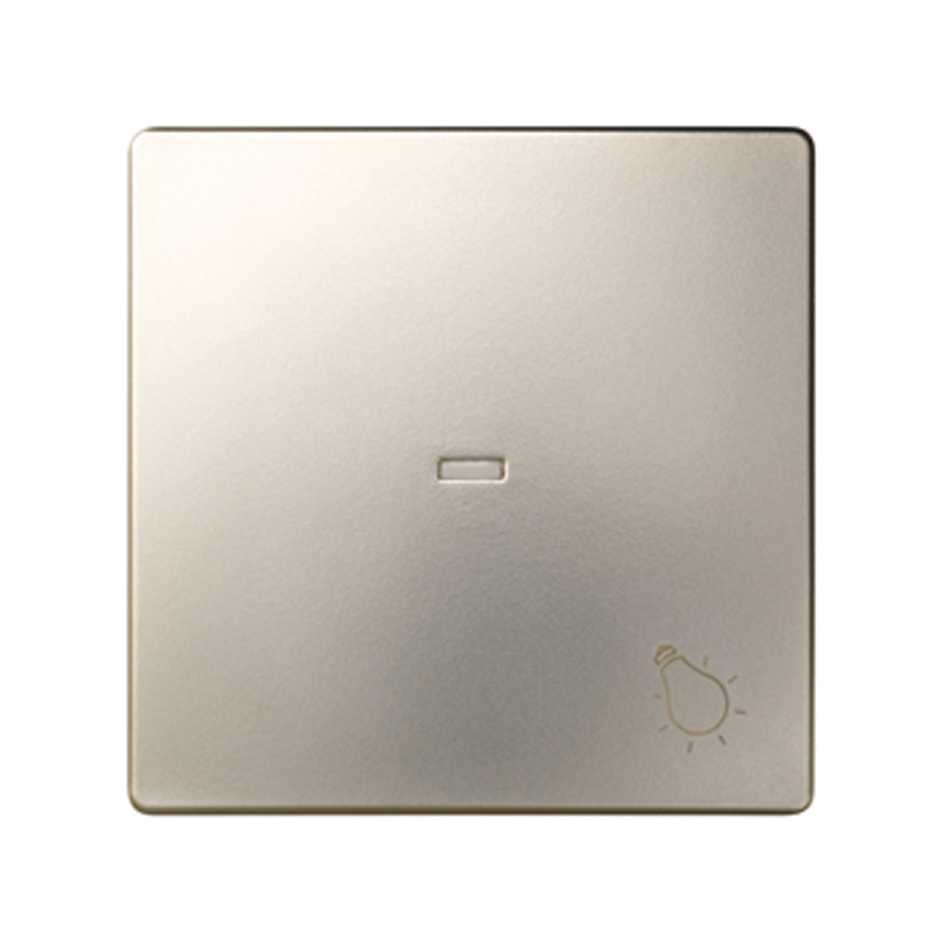

Single rocker with viewer and light symbol for S.77 mechanisms champagne Simon 82

Price/Unit
€7.90
Packaging quantity
5 Units

Available downloads

Data sheet

8200016-034.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

Product Information

In champagne colour, we have the following individual rocker with viewer and light symbol engraving for mechanisms of the Simon 77 series, you can find it in the Simon 82 range, in addition to the ""rockers and covers"" section, six other finishes are available. It is advisable to choose the frame with the same baseboard colour as the rocker selected. The element can be either surface mounted or flush mounted.

The materials used to manufacture the Simon series elements are of high quality, so much so that the metal components are thermoplastic insulated and halogen-free, this makes it to work at maximum performance in wide temperature ranges.

The maintenance of the Simon elements is extremely simple, you will simply have to take a soft and clean cloth and without spraying any type of product you can always leave the component as new. It is recommended not to use corrosive or chlorine-containing liquids to avoid damaging the component.

Basic information
  • Compatibility

    Simon 77 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Champagne

  • Symbol

    Light

  • Material

    Thermoplastic

  • Packaging contents

    Single rocker and fastening bracket

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product net weight

    0.024 KGM

  • Product gross weight

    0.024 KGM

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    0.598 DMQ

  • Packaging net weight

    0.12 KGM

  • Packaging EAN

    8421053079690
