Single rocker with viewer and light symbol for S.77 mechanisms aluminium Simon 82

8200016-033-tecla-individual-con-visor-y-grabado-luz-mecanismos-mando-serie-77-aluminio-simon-82-frontal.jpg

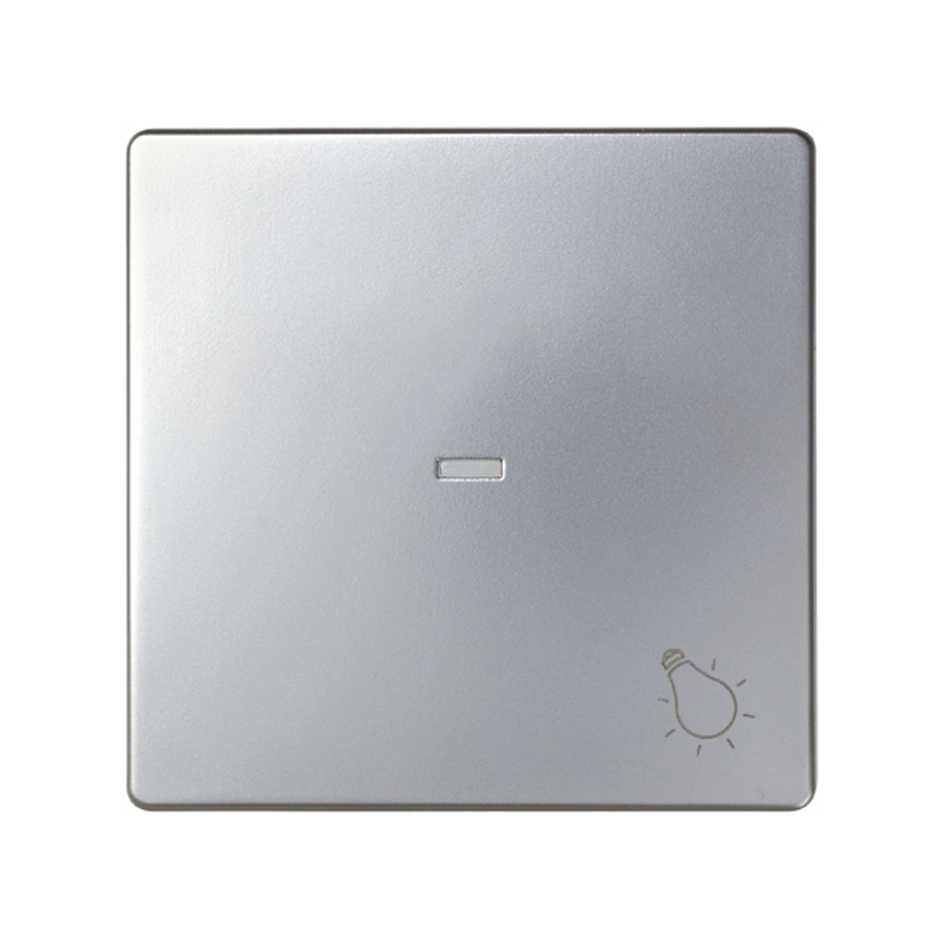

Rocker with viewer and light symbol Simon 82 aluminium front view


This image represents the combination of different references

Rocker with viewer and light symbol Simon 82 aluminium packaging

SERIES: Simon 82 FINISH: Aluminium MATERIAL: Plastic DIMENSIONS: 55x55 mm Switches

7700160-039

Product description

Safety in an electrical system is a non-negotiable element. With it we make sure that everything works properly and avoid any type of accident. This quality is present in the individual Rocker with viewfinder and light symbol in aluminium of the Simon 82 series, which is also compatible with all mechanisms of the Simon 77 series. This piece consists of a signaling function and comes in six finishes. But it has more features. Thanks to its dimensions of 55x55, the rocker can be either surface mounted or flush mounted. It has been developed in compliance with the regulation UNE-EN 60669-1:2002 + A1:2003 + A2:2009 standard with galvanized thermoplastic components, a quality that is not reflected in its price, since we are before the most competitive rocker on the market. And to keep it clean and in perfect condition like the first day you only need to use a soft and dry cloth.

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: Aluminium

Indicator function: Yes

No. of possible elements: 1 element

Compatibility: Simon 77 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Single rocker and fastening bracket

Remarks: Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 20

RAL: Does not have

Manufacturing material: Galvanised thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 81.000

Wide: 82.000

Depth: 90.000

Box volume: 0.598

Box volume measurement unit: CDM

Net weight of box: 0.120

Unit weight of box: KGM

EAN code: 8421053079683

Available in multiple box: No

Available on pallet: No

8200016-033-tecla-individual-con-visor-y-grabado-luz-mecanismos-mando-serie-77-aluminio-simon-82-frontal_2.jpg

Rocker with viewer and light symbol Simon 82 aluminium front view


This image represents the combination of different references

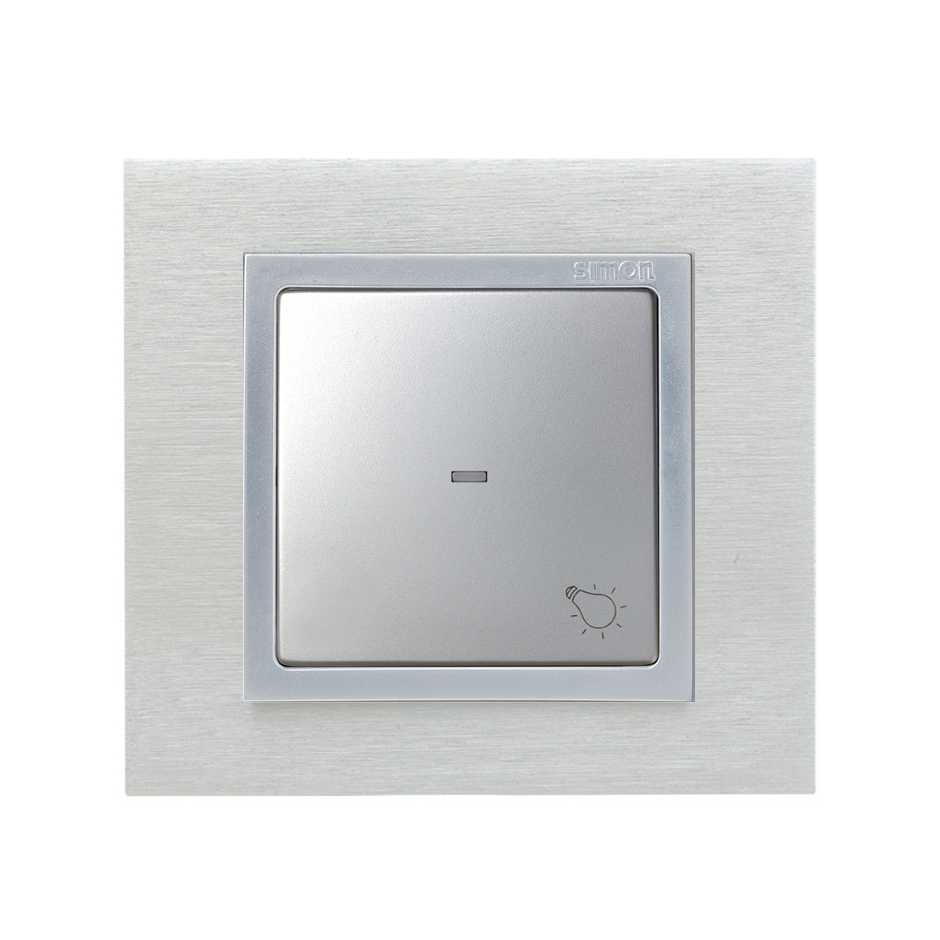

Simon 77 push button, aluminium rocker with light symbol and frame Simon 82 Nature matt stainless steel aluminium interior R.P.: Price on request
