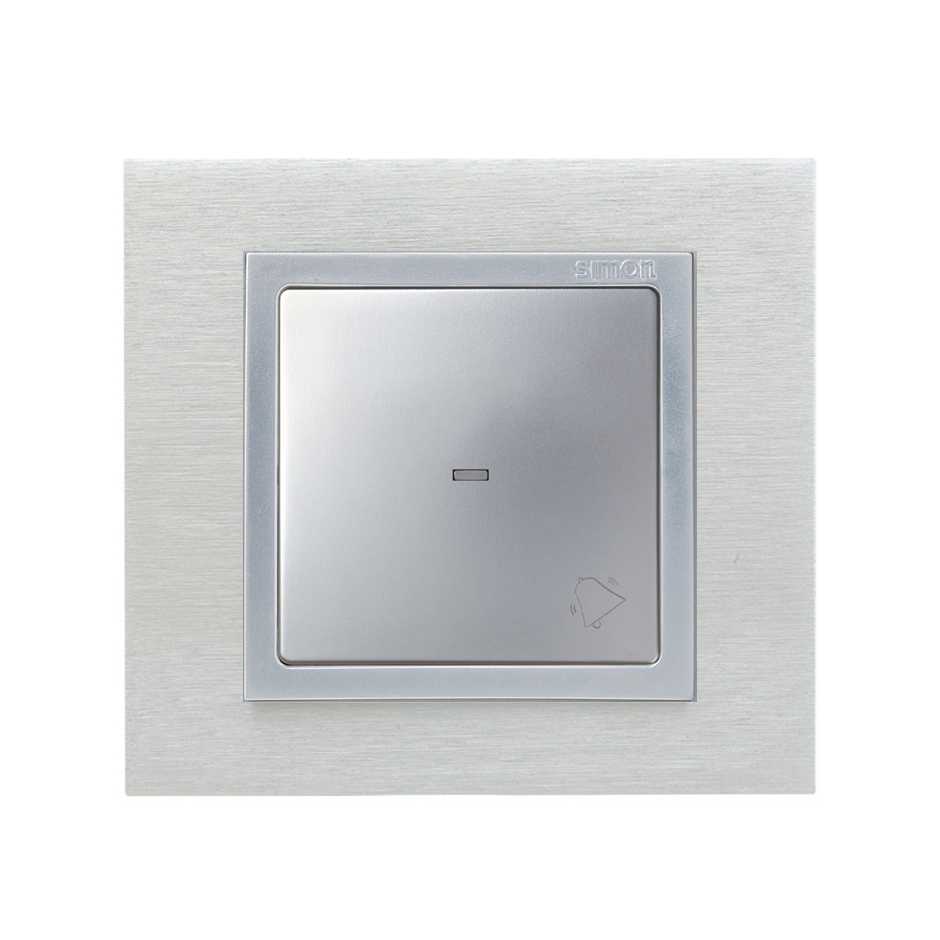

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
8200015-033

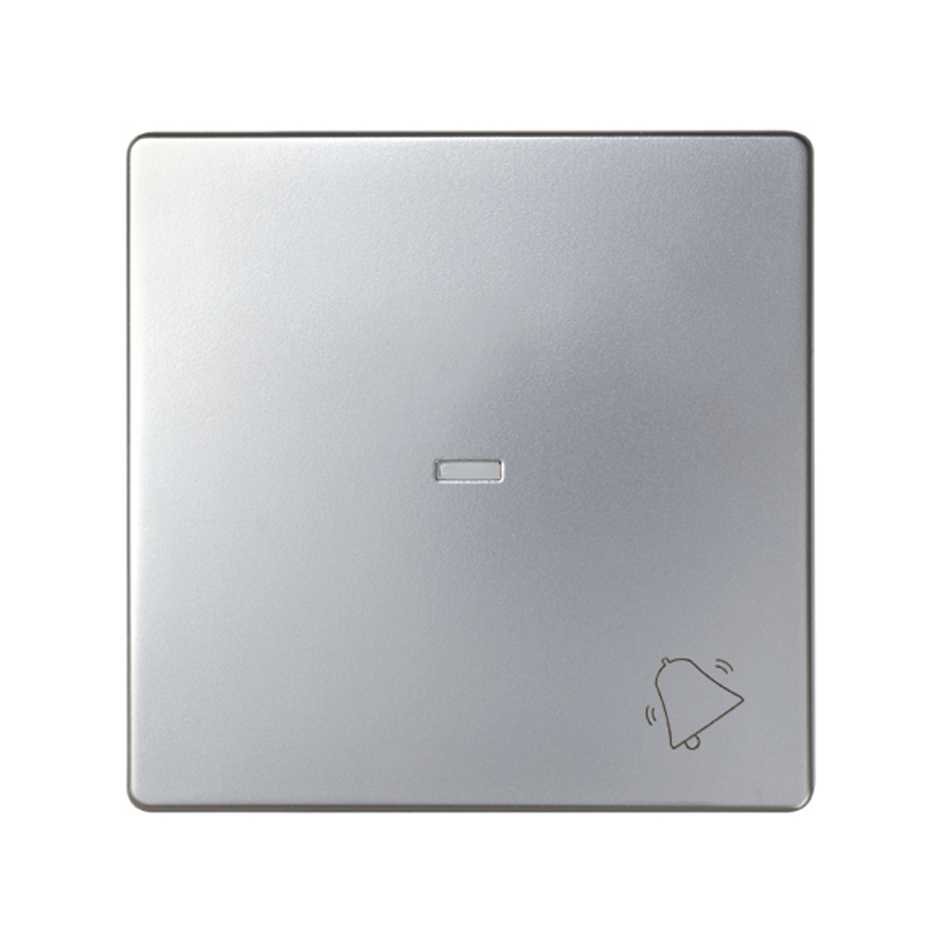

Single rocker with viewer and bell symbol for S.77 mechanisms aluminium Simon 82

Price/Unit
€7.90
Packaging quantity
5 Units

Available downloads

Data sheet

8200015-033.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Nature

Simon 82

Product Information

Individual rocker with viewer and bell engraving for mechanisms of the Simon 77 series in aluminium colour belonging to the Simon 82 range, you can find the component in the ""rockers and covers"" section, you have another six finishes available, we recommend choosing the frame in the same baseboard colour as the rocker chosen to match your home and take advantage of the design and comfort of Simon. With installation suitable for surface or flush mounting, this reduces installation time.

Regulation, complying with the UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009 and allowing us to offer the highest quality components to each of our customers. The materials used to manufacture the Simon series elements are of high quality, so much so that the metallic components are thermoplastic insulation and allow their operation in temperature intervals with a minimum of 5ºC and a maximum of 40ºC.

Basic information
  • Compatibility

    Simon 77 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Aluminium

  • Symbol

    Bell

  • Material

    Plastic

  • Packaging contents

    Single rocker and fastening bracket

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product net weight

    0.024 KGM

  • Product gross weight

    0.024 KGM

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    0.598 DMQ

  • Packaging net weight

    0.12 KGM

  • Packaging EAN

    8421053079638
