Ref
8200013-038

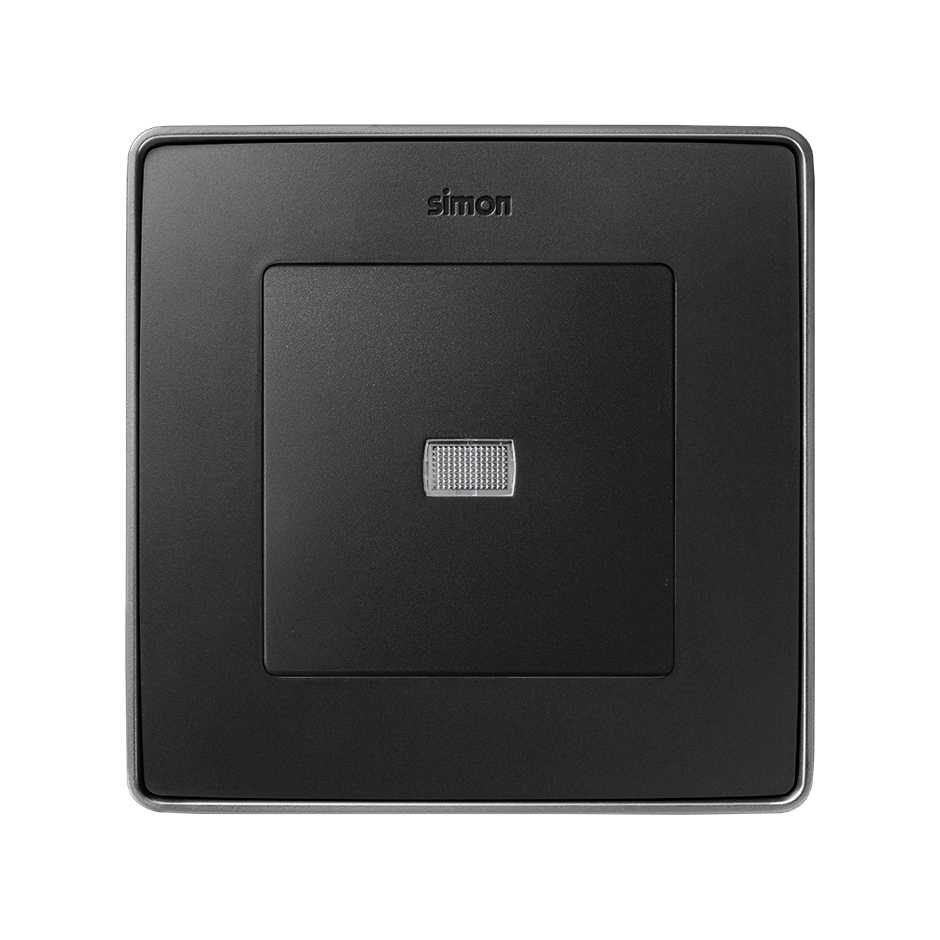

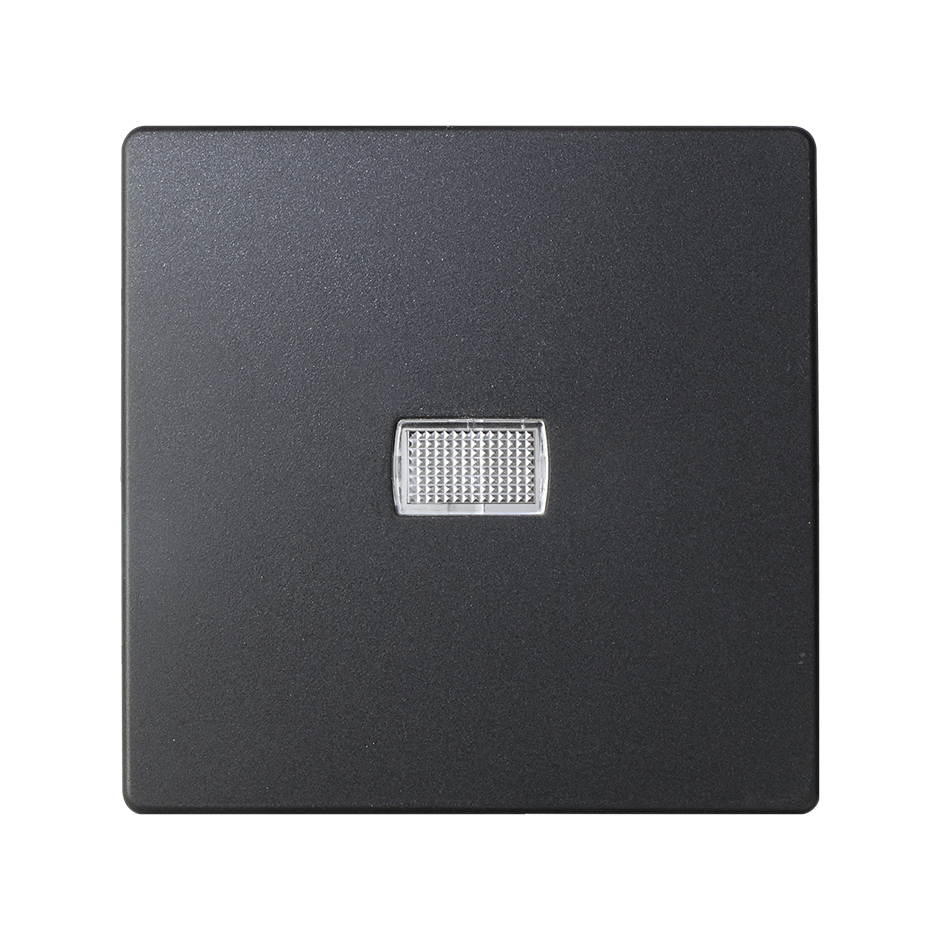

Single rocker for S.77 mechanisms combinable with viewers 82972 and 82982 graphite Simon 82

Price/Unit
€5.29
Packaging quantity
5 Units

Available downloads

Data sheet

8200013-038.pdf

Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Product Information

With the individual rocker with viewer of the Simon 82 collection, you will get the maximum functionality in a design of neutral lines, which are adapted to all types of spaces. The combination of colours and textures of this range, provide a current of ambience minimalist style.

This rocker with viewer, with finishes in graphite and its viewer can be combined with the 82972 and 82982 visors references to play with the colour and texture that adapt to any room.

Compatible with the mechanisms of Simon 77, its installation both recessed and surface-mounted, does not require stripping or braiding of wire to enjoy the mechanism in three simple steps: Insert, tighten and operate. It has a size of 55 x 55 mm, ideal for spaces compact.

With the thermoplastic and raw material, reaches a temperature range of 5 to 40 ° C and maximum temperatures of -25 and 50 ºC.

Basic information
  • Compatibility

    Simon 77 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    Graphite

  • Symbol

    Without engravings

  • Material

    Plastic

  • Packaging contents

    Single rocker and fastening bracket

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product net weight

    0.019 KGM

  • Product gross weight

    0.019 KGM

  • Product EAN

    8421053256633

  • Packaging quantity

    5

  • Packaging height

    81 MMT

  • Packaging width

    82 MMT

  • Packaging length

    90 MMT

  • Packaging volume

    0.598 DMQ

  • Packaging net weight

    0.095 KGM

  • Packaging gross weight

    0.095 KGM

  • Packaging EAN

    8421053079850
