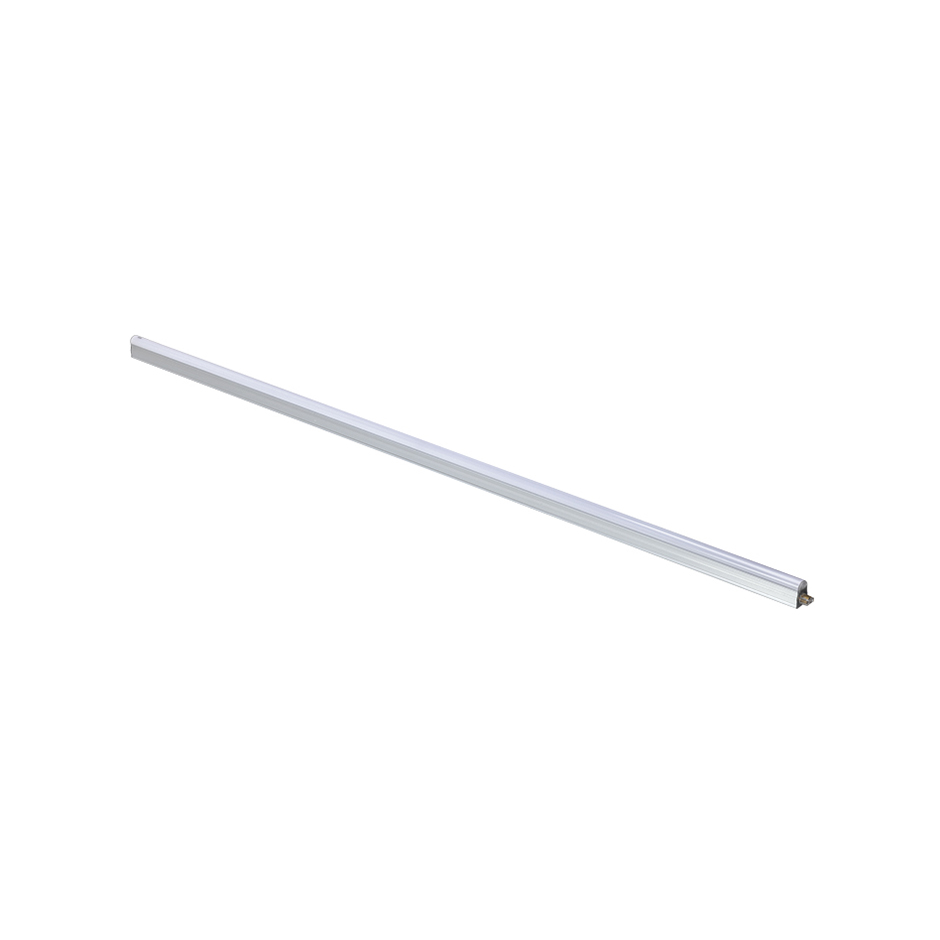

Ledline 815 NW 1200 mm perspective view

Ledline 815 NW 1200 mm perspective view

Ref
81531033-984

Ledline 815 NW 1200 mm

Price/Unit
€65.52
Hasta fin de existencias
Packaging quantity
1 Unit

Available downloads

Ficha técnica
81531033-984-datasheet-en.pdf
Installation manual

  1. HI_ledline 815.pdf [1015KB]

Product declaration

  1. UES0071_10.pdf [307KB]

Ask for advice
Outstanding Features
Series
Simon 815
Model
Linear lighting
Range
815
Series Compatibility

Simon 815

Ledline 815 WW 1200 mm perspective view
Ref
81531033-983
Ledline 815 WW 1200mm
Ledline 815 NW 600mm perspective view
Ref
81530033-984
Ledline 815 NW 600mm
Información de Producto
Soporte

Product Information

This LEDLINE with neutral colour temperature it corresponds to the series Simon 815. It is characterized by a slimline design and easy to install, which makes it perfect to highlight the architectural projects in which it is integrated.

The Terminal LED has a light output 1500 lm / 18 W and a service life of up to 35000 hours. In terms of its main features, mentioning that it is a piece in aluminium colour and has a weight of 0,300 kg, it also, the Terminal LED is suitable for flush mounting, being especially recommended for places such as corridors, in cabinets or racks.

In addition to fit perfectly with the projects, offers the minimum visual impact, so it is an ideal complement suitable for lighting ambience, coving or furniture. In terms of the temperature of installation, it is advisable to do it in environments that are among the -15 and 40ºC.

Basic information

  • Lighting Description

    SIMON Ledline 815, 1200 mm long for surface mounting, with LED technology and fitted with a polycarbonate diffuser, 120° General photometric distribution,. Electronic control gear built into the luminaire, with ON/OFF control. Body made of high-conductance aluminium for optimum LED cooling. Lumens available 1500 lm for NW and total luminaire consumption of 18 W (actual system efficiency of 84 lm/W). CRI>80. Luminaires for interconnecting in series up to a total power of 150 W. Mains voltage 230 V AC 50/60 Hz. Lumen maintenance L70 >35,000 h at 25 °C. Luminaire dimensions: 1200x33x22 mm. IP20. Luminaire weight 0.300 kg. Auminium finish. Photobiological safety: Exempt group. CE marking.

  • Model

    Linear lighting

  • Range

    815

  • Application

    Ambient lighting , Alcove lighting , Furniture lighting

  • Remarks

    Luminaires for interconnecting up to a maximum of 150W

  • Packaging contents

    1 unit

Technical information

  • Frequency (Hz)

    50 - 60 Hz

  • IP Rating

    IP20

  • Operating temperature range (ºC)

    -15 - 40 ºC

  • Power supply (V~)

    230 V~

  • Dimensions (mm)

    1200 x 33 x 22

  • Weight (kg)

    0.3

Lighting Information

  • CRI

    80

  • Colour temperature (k)

    3900 K

  • Colour type

    NW

  • Control

    On/Off

  • Electrical class

    Type 1

  • L70 (ºC)

    35,000 h at 25 ºC

  • Light beam aperture angle (ºC)

    120º

  • Lighting efficiency (lm/w)

    84 lm/W

  • Lúmenes (lm)

    1500 lm

  • Optics

    General

  • Photobiological classification

    Exempt category

  • Power (W)

    18 W

  • Service life

    30.000 h

Installation and maintenance

  • Installation type

    Surface

  • Type of terminal connection

    Screw

Regulation

  • Guarantee

    3 years 30,000 h

Logistics Information

  • Product net weight

    0.388 KGM

  • Product gross weight

    0.388 KGM

  • Packaging quantity

    1

  • Packaging height

    25 MMT

  • Packaging width

    35 MMT

  • Packaging length

    670 MMT

  • Packaging volume

    0.586 DMQ

  • Packaging net weight

    0.388 KGM

  • Packaging gross weight

    0.388 KGM

  • Packaging EAN

    8421053122440
