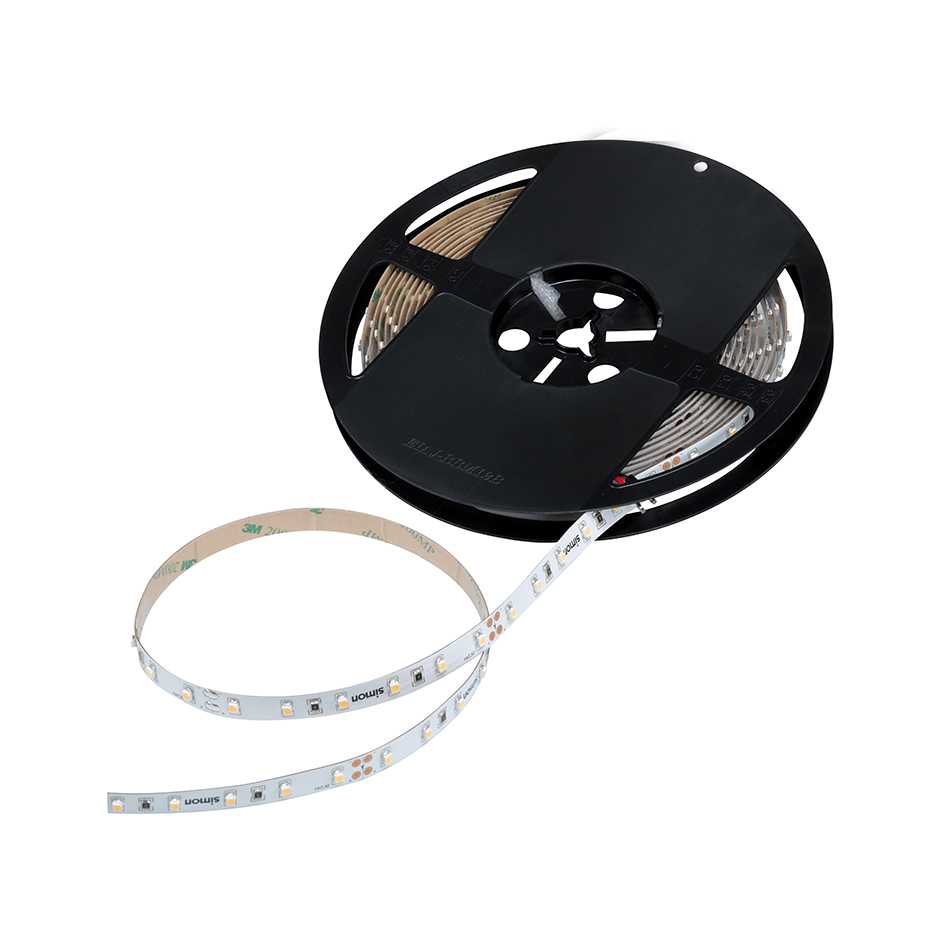

Perspective view LedFlex 810.38 4000 K IP20

Ref
81038000-984

LedFlex 810.38 4000 K IP20

Price/Unit
Price on request
Packaging quantity
1 Unit

Available downloads

Technical specifications
81038000-984-datasheet-en.pdf
Installation manual

  1. HI Ledflex 810 IP20_2.pdf [1MB]

Product declaration

  1. UES0069_2.pdf [405KB]

Photometry

  1. 81038000-984-photometry.ldt [25KB]

  2. 810_2.zip [413KB]

Do you need advice?
Outstanding Features
Series
Simon 810
Model
LEDFLEX and hardware 810
Range
810
Series Compatibility

Simon 810

<p class=>Perspective view LedFlex 810.62 2700 K IP65 240 LED/m</p>
Ref
81062100-982
LedFlex 810.62 2700 K IP65 240 LED/m
<p class=>Perspective view LedFlex 810.52 4000 K IP20 5 mm</p>
Ref
81052000-984
LedFlex 810.52 4000 K IP20 5 mm
<p class=>Perspective view LedFlex 810.37 RGB + 2700 K IP65</p>
Ref
81037100-902
LedFlex 810.37 RGB + 2700 K IP65
<p class=>Perspective view 18 W / 24 V power supply</p>
Ref
81090024-139
18 W / 24 V power supply
<p class=>Perspective view LedFlex round hardware</p>
Ref
81000433-039
LedFlex round hardware
<p class=>Perspective view LedFlex surface-mount hardware</p>
Ref
81000133-039
LedFlex surface-mount hardware
Product Information
Downloads
Support
Basic information

  • Lighting Description

    SIMON LedFlex and 810 hardware, LED strip from the 810.38 family for bracket mounting with general photometric distribution (120°). LED strip designed so that it can be trimmed every 6 LEDs, with a density of 120 LEDs/m. Lumens available 2050 lm/m for 4000 K and total consumption of 19.2 W/m. The actual system efficiency is 107 lm/W. Supply voltage: 24 V DC. Lumen maintenance L70 > 30,000 h at 25 °C. The strips are sold in 5 m rolls. IP20. Weight of the 5 metres of strips: 0.1 kg. Photobiological safety: Exempt group. CE marking.

  • Model

    LEDFLEX and hardware 810

  • Range

    810

  • Application

    Indoor decorative lighting , General lighting

  • Packaging contents

    1 unit (5m)

Technical information

  • IP Rating

    IP20

  • Operating temperature range (ºC)

    -20 - 40 ºC

  • Dimensions (mm)

    0.010 x 1.00 x 0.002 m

  • Weight (kg)

    0.1

Lighting Information

  • CRI

    80

  • Colour temperature (k)

    4000 K

  • Colour type

    NW

  • Control

    PWM

  • L70 (ºC)

    30,000 h

  • Light beam aperture angle (ºC)

    120º

  • Lighting efficiency (lm/w)

    106,8 lm/W

  • Lúmenes (lm)

    10250 lm

  • Optics

    General

  • Photobiological classification

    Exempt category

  • Power (W)

    96 W

Installation and maintenance

  • Installation type

    Hardware

Regulation

  • Guarantee

    3 years

Logistics Information

  • Product net weight

    0.16KGM

  • Product gross weight

    0.16KGM

  • Packaging quantity

    1

  • Packaging height

    2MMT

  • Packaging width

    24MMT

  • Packaging length

    25MMT

  • Packaging volume

    1200MMQ

  • Packaging net weight

    0.16KGM

  • Packaging gross weight

    160.2KGM

  • Packaging EAN

    8421053204924
