Slide control regulator graphite Simon 82 Sense

REFERENCE NO.: 8000700-038
R.P.: Price on request
PACKAGING: 1 Unit
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82 Detail y Simon 82 Nature
Range:  Sense
Finish:  Graphite
Intensity:  4 mA
Power supply:  From bus coupler
Type of mechanism:  Touch
Adjustment feedback:  5 monochrome blue LEDs
Feedback with sound:  No
Feedback with vibration :  No
Slide control:  Yes
No. of possible elements:  1 element
Packaging contents:  Slide Control, RJ12 cable and instructions
Remarks:  Auxiliary element. Requires bus coupling unit connection (8000100-039 or 8400100-039) with RJ12 cable (8000701-039)

TECHNICAL INFORMATION

Dimensions:  55x55 mm.
IP rating:  20
RAL:  Does not have
Relative humidity:  From 20 to 85% (without condensation)
Manufacturing material:  Electronic components with halogen-free insulation and thermoplastic trim
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-5:2016

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Installable in flush mount junction box:  Universal
Operating temperature range:  From 0 °C to 45 °C
Storage temperature range:  25 to 70 ºC
Maintenance:  Use a soft cloth slightly dampened with soapy water. Do not use tissues and/or abrasive cleaners containing chlorine

LOGISTIC DATA

GALLERY

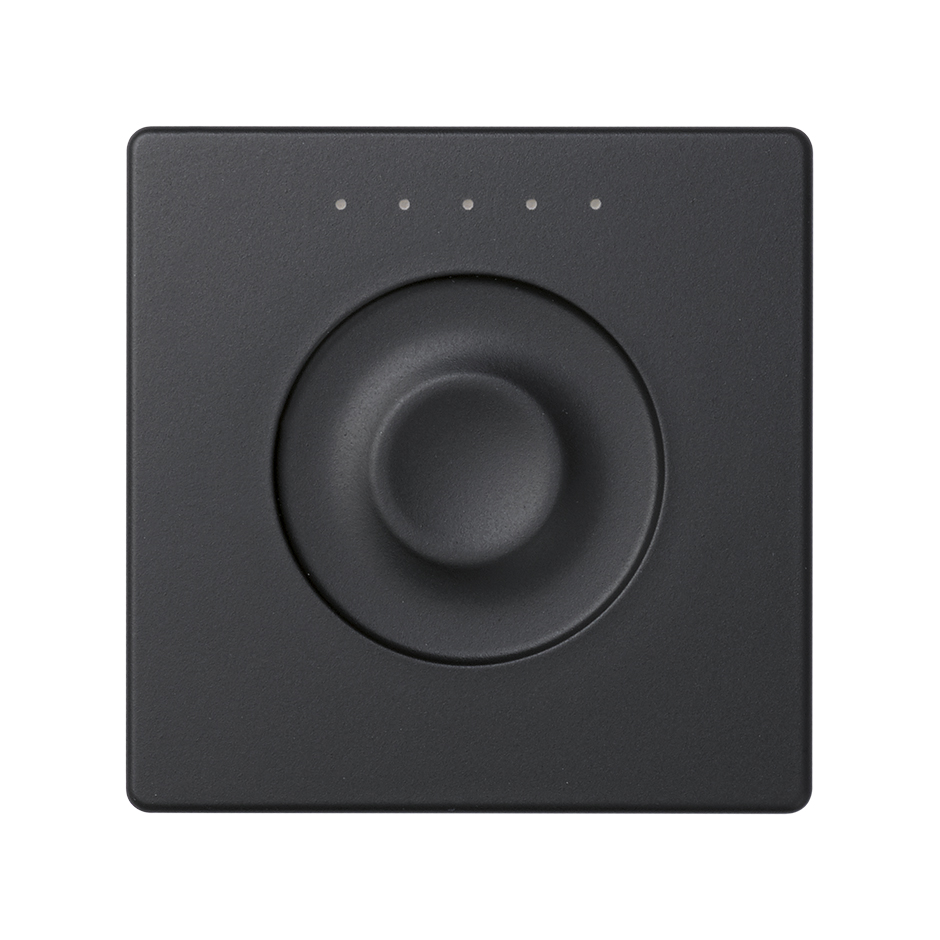

Slide control regulator Simon 82 Sense graphite front view

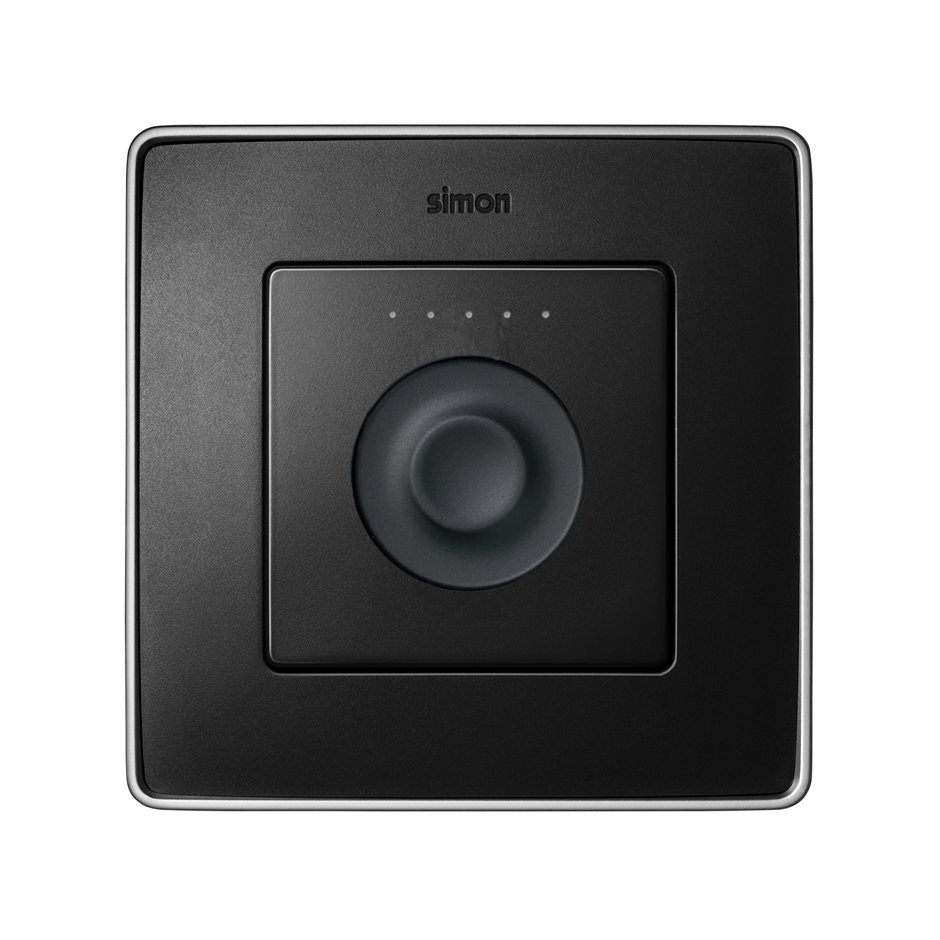

Slide control regulator with frame Simon 82 Detail Select graphite aluminium base front view


INSTALLATION MANUAL

manual
Instruction sheet Slide control regulator graphite Simon 82 Sense DOWNLOAD

PRODUCT DECLARATIONS

manual
UE declaration Slide control regulator graphite Simon 82 Sense DOWNLOAD

MODULAR SOLUTION

Slide Control regulator with frame Simon 82 Detail Select graphite aluminium base R.P.: 0.000 €
8000651-038-solucion-sense&slide-keypad-lon-4b-regular-grafito-select-base-aluminio-simon-82-detail.jpg
LON bus coupling unit with keypad, Slide Control and frame Simon 82 Detail Select graphite aluminium base R.P.: 0.000 €
