Ref
8000661-030

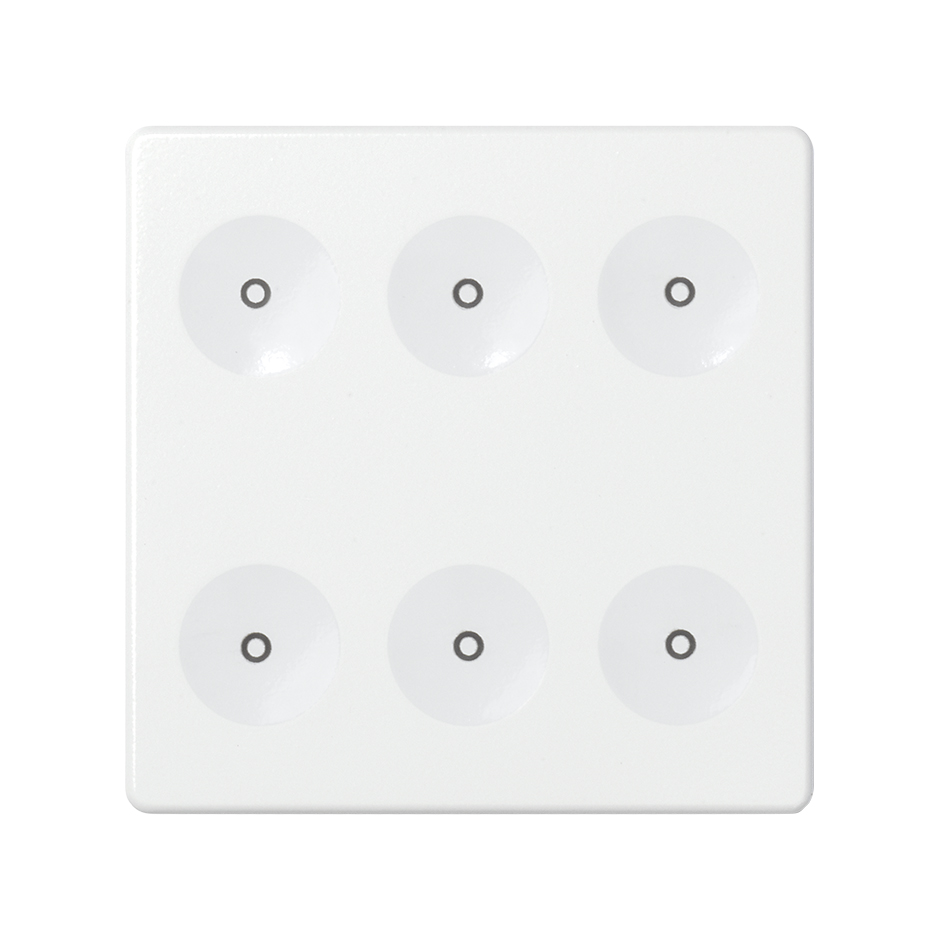

Standard button box 6 functions white Simon 82 Sense

Price/Unit
Price on request
While stocks last
Packaging quantity
1 Unit

Available downloads

Technical specifications
8000661-030-en-datasheet.pdf
Installation manual

  1. 990837.pdf [317KB]

Product declaration

  1. UES0053_4.pdf [75KB]

Do you need advice?
Outstanding Features
Series
Simon Scena
Range
Sense
Series Compatibility

Simon Scena

<p class=></p>
Ref
8900150-039
Bus coupling unit Scena
<p class=></p>
Ref
8200610-029
Frame for 1 element warm white Simon 82 Detail Original
<p class=></p>
Ref
82610-30
Frame for 1 element white Simon 82
<p class=></p>
Ref
8201610-270
Frame for 1 element white beech wood base Simon 82 Detail Select
<p class=></p>
Ref
8201610-245
Frame for 1 element white gold base Simon 82 Detail Select
<p class=></p>
Ref
8201610-244
Frame for 1 element white chrome base Simon 82 Detail Select
<p class=></p>
Ref
8201610-243
Frame for 1 element white aluminium base Simon 82 Detail Select
<p class=></p>
Ref
8200610-230
Frame for 1 element white aluminium base Simon 82 Detail Original
<p class=></p>
Ref
8200610-030
Frame for 1 element white Simon 82 Detail Original
<p class=></p>
Ref
8201610-294
Frame for 1 Element White Champagne Base Simon 82 Detail Select
<p class=></p>
Ref
8201610-291
Frame for 1 Element White Copper Base Simon 82 Detail Select
Product Information
Downloads
Support
Basic information

  • Range

    Sense

  • Compatibility

    Simon Scena

  • Remarks

    Requires installation on Scena bus coupler (8900150-039), LON (8000100-039) or KNX (8400100-039) Allows customization and creation of your own configuration by selecting the required functions using icons from our library. Compatible with frames from the Simon 82 Nature and Simon 82 Detail series.

  • Finish

    White

  • Symbol

    Dot

  • Material

    Thermoplastic

  • Packaging contents

    Keypad and instructions

Technical information

  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    0 - 45 ºC

  • Power supply (V~)

    24 Vdc

  • Type of mechanism

    Touch

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Adjustment feedback

    No

  • Adjustment range (ºC)

    From 0 to 45 °C

  • Bus connection type of terminal connection

    Por inserción

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-5:2016

Logistics Information

  • Product net weight

    0.037KGM

  • Product gross weight

    0.037KGM

  • Product EAN

    8421053128923

  • Packaging quantity

    1

  • Packaging height

    23MMT

  • Packaging width

    57MMT

  • Packaging length

    84MMT

  • Packaging volume

    129.688MMQ

  • Packaging net weight

    0.037KGM

  • Packaging gross weight

    0KGM

  • Packaging EAN

    8421053128923
