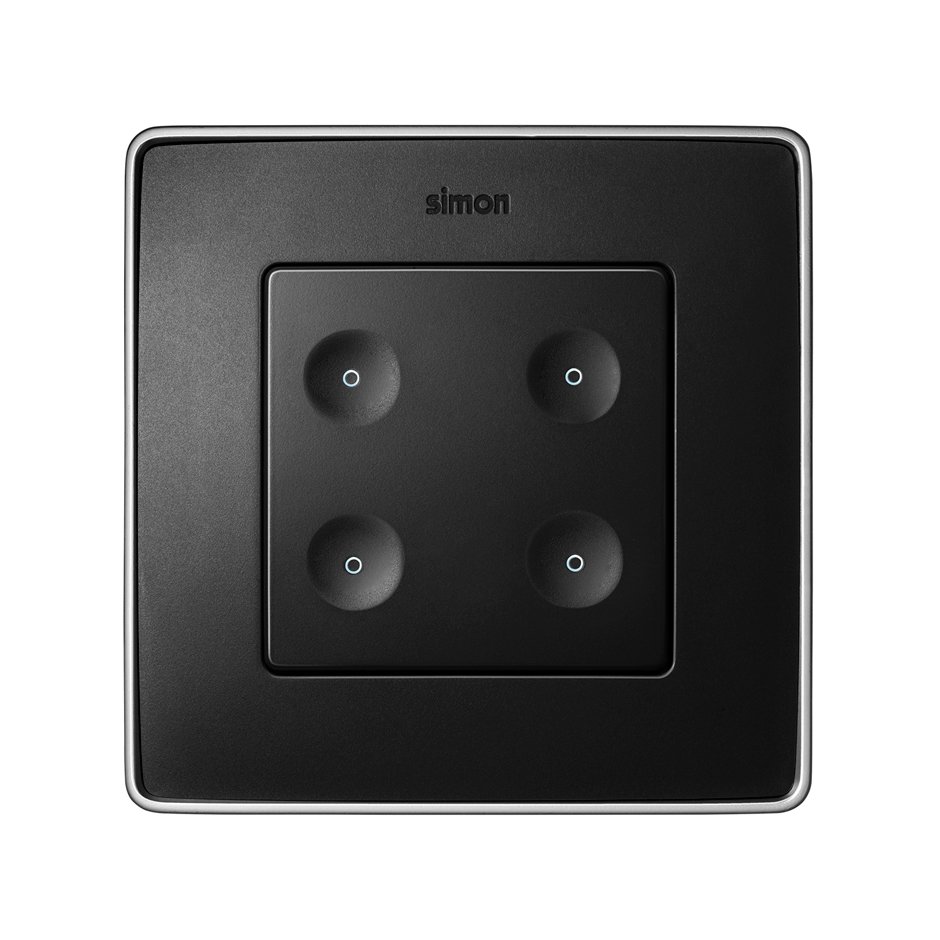

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
8000641-038

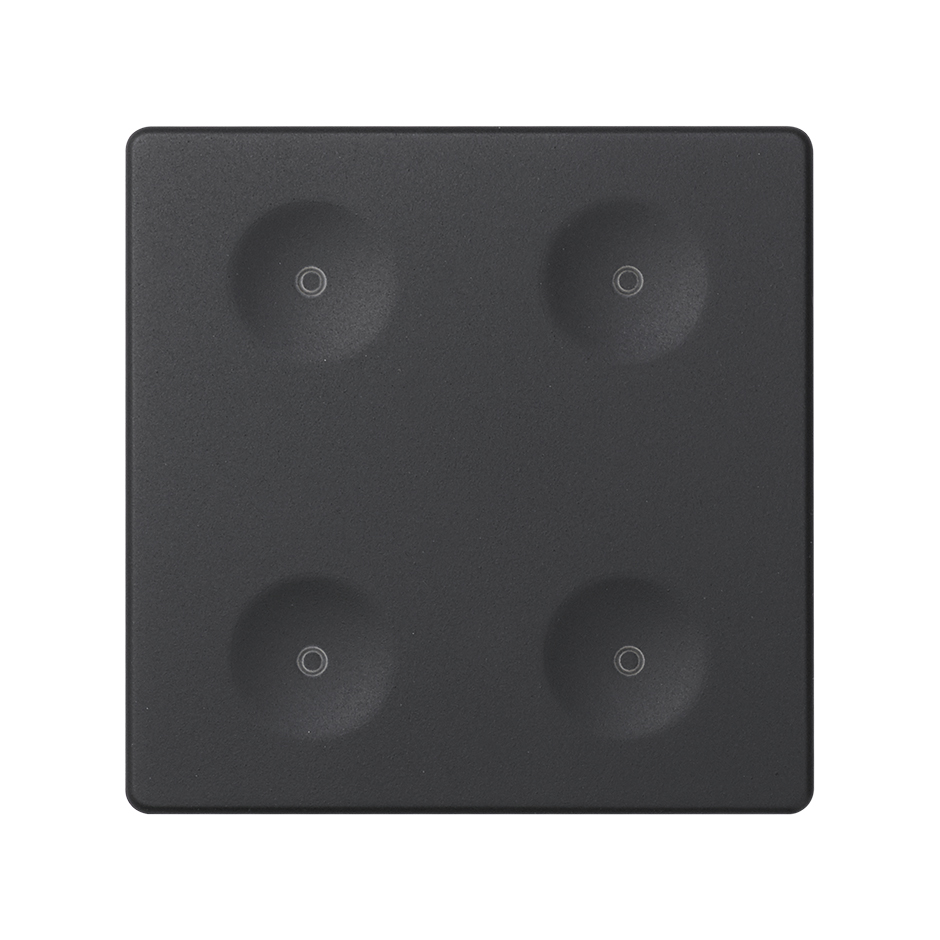

Standard button box 4 functions graphite Simon 82 Sense

Price/Unit
€95.00
Packaging quantity
1 Unit

Available downloads

Data sheet

8000641-038.pdf

Installation manual
Product declaration
Outstanding Features
Series
Simon 82 Sense
Range
Sense
Series Compatibility

Simon Scena

Simon 82 Detail

Simon 82 Sense

Basic information
  • Range

    Sense

  • Remarks

    Requires installation on LON or KNX bus coupling unit (8000100-039 or 8400100-039). Possibility of customising and creating your own configuration by choosing the functions you need from our icon library.

  • Finish

    Graphite

  • Symbol

    Dot

  • Material

    Thermoplastic

  • Packaging contents

    Keypad and instructions

Technical information
  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    0 - 45 ºC

  • Type of mechanism

    Touch

  • Dimensions (mm)

    55 x 55

Installation and maintenance
  • Adjustment feedback

    No

  • Adjustment range (ºC)

    From 0 to 45 °C

  • Cable stripping necessary (mm)

    8 mm

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-5:2016

Logistics Information
  • Product net weight

    0.037 KGM

  • Product gross weight

    0.037 KGM

  • Product EAN

    8421053128572

  • Packaging quantity

    1

  • Packaging height

    23 MMT

  • Packaging width

    57 MMT

  • Packaging length

    84 MMT

  • Packaging volume

    129.688 MMQ

  • Packaging net weight

    0.037 KGM

  • Packaging EAN

    8421053128572
