Custom button box 2 functions for lighting control cold aluminium Simon 82 Sense

REFERENCE NO.: 8000625-093
R.P.: Price on request
PACKAGING: 1 Unit
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82 Detail y Simon 82 Nature
Range:  Sense
Finish:  Cold aluminium
Intensity:  6,2 mA
Power supply:  From bus coupler
No. of functions:  2
Type of mechanism:  Touch
Number of RGB LEDs:  2
Adjustment feedback:  No
Feedback with sound:  Yes
Feedback with vibration :  Yes
Slide control:  No
Temperature probe:  Yes
Adjustment range:  From 0 to 45 °C
No. of possible elements:  1 element
Packaging contents:  Keypad and instructions
Remarks:  Requires installation on LON or KNX bus coupling unit (8000100-039 or 8400100-039). Possibility of customising and creating your own configuration by choosing the functions you need from our icon library.

TECHNICAL INFORMATION

Dimensions:  55x55 mm.
IP rating:  20
RAL:  Does not have
Relative humidity:  From 20 to 85% (without condensation)
Manufacturing material:  Electronic components with halogen-free insulation and metalised thermoplastic trim
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-5:2016

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Operating temperature range:  From 0 °C to 45 °C
Storage temperature range:  25 to 70 ºC
Maintenance:  Use a soft cloth slightly dampened with soapy water. Do not use tissues and/or abrasive cleaners containing chlorine

LOGISTIC DATA

GALLERY

aplicacion-sense-lon-knx-custom-1b-t1-y-2b-t2-con-placa-aluminio-frio-en-dormitorio.jpg

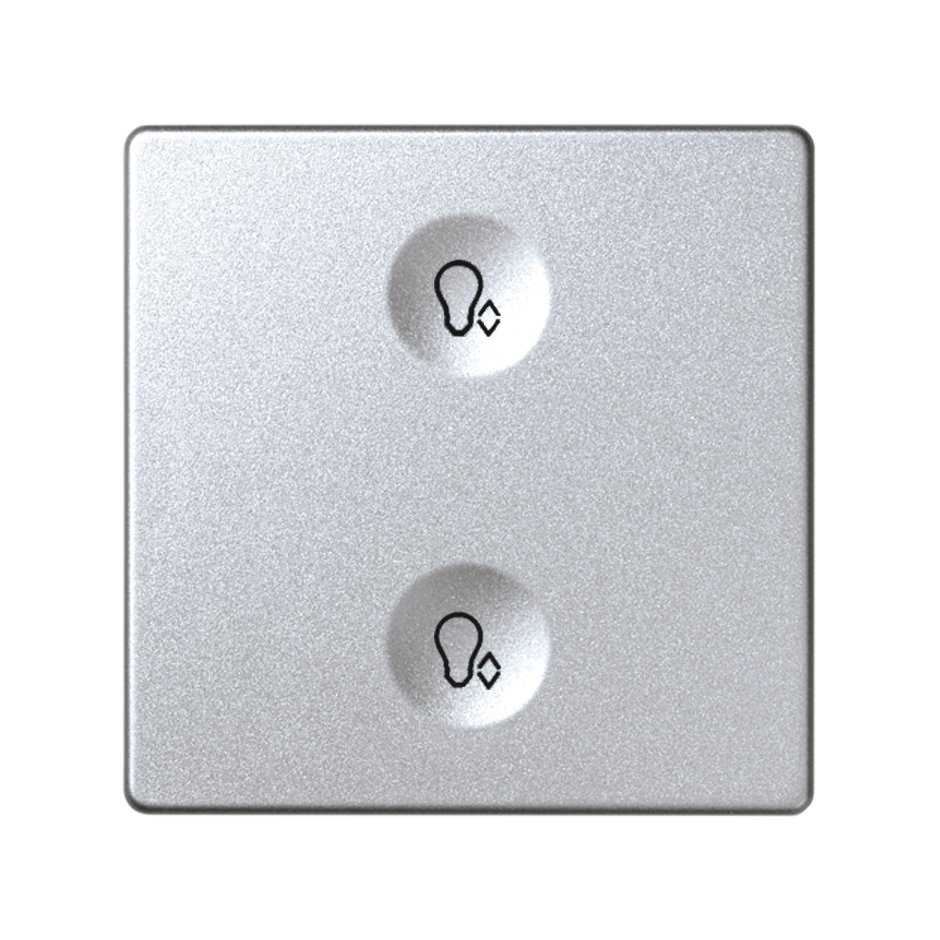

Custom keypad Simon 82 Sense cold aluminium front view

8000625-093-solucion-sense-keypad-2b-custom-t3-aluminio-frio-select-base-cromo-simon-82-detail.jpg

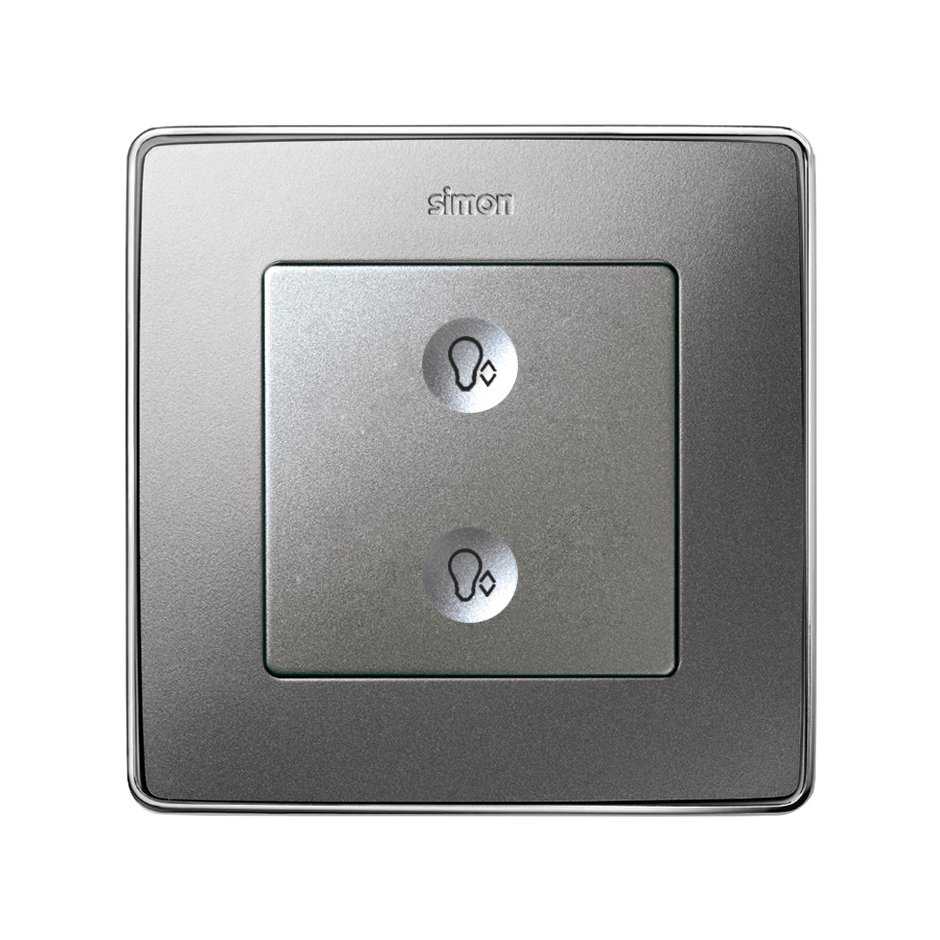

Keypad with frame Simon 82 Detail Select cold aluminium chrome base front view

aplicacion-sense-lon-knx-custom-1b-t1-y-2b-t2-con-placa-aluminio-frio-en-dormitorio.jpg
8000625-093-solucion-sense-keypad-2b-custom-t3-aluminio-frio-select-base-cromo-simon-82-detail.jpg
