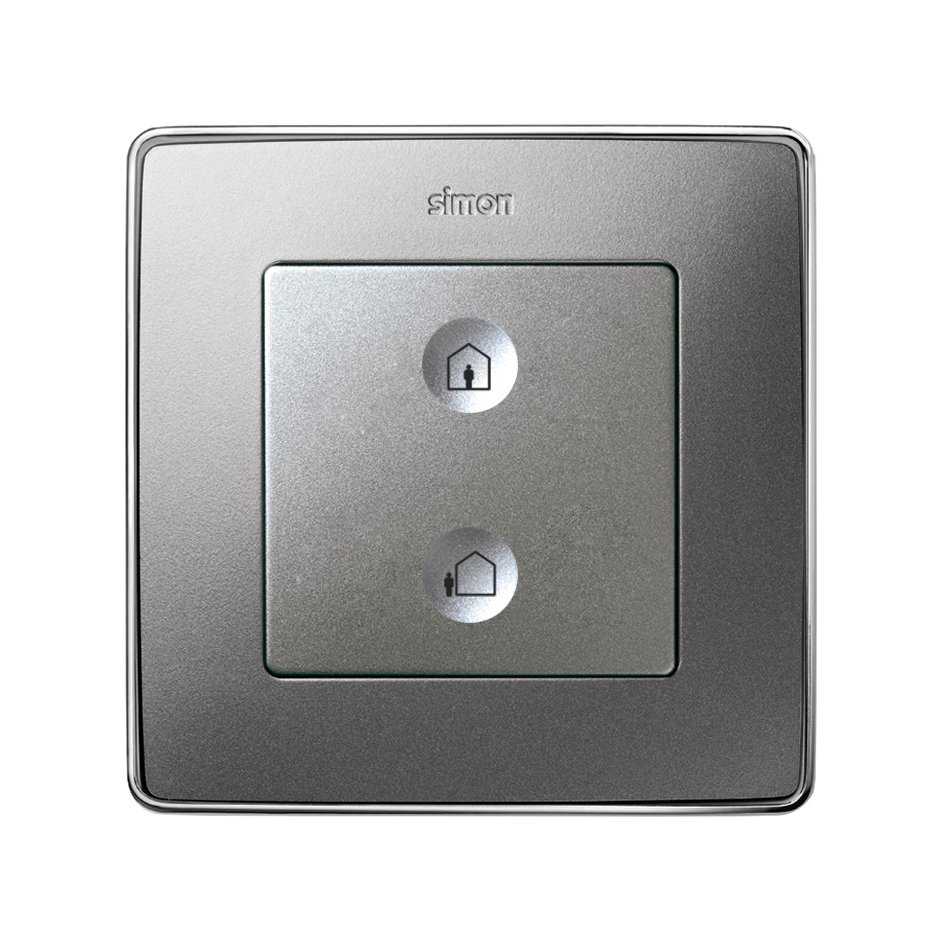

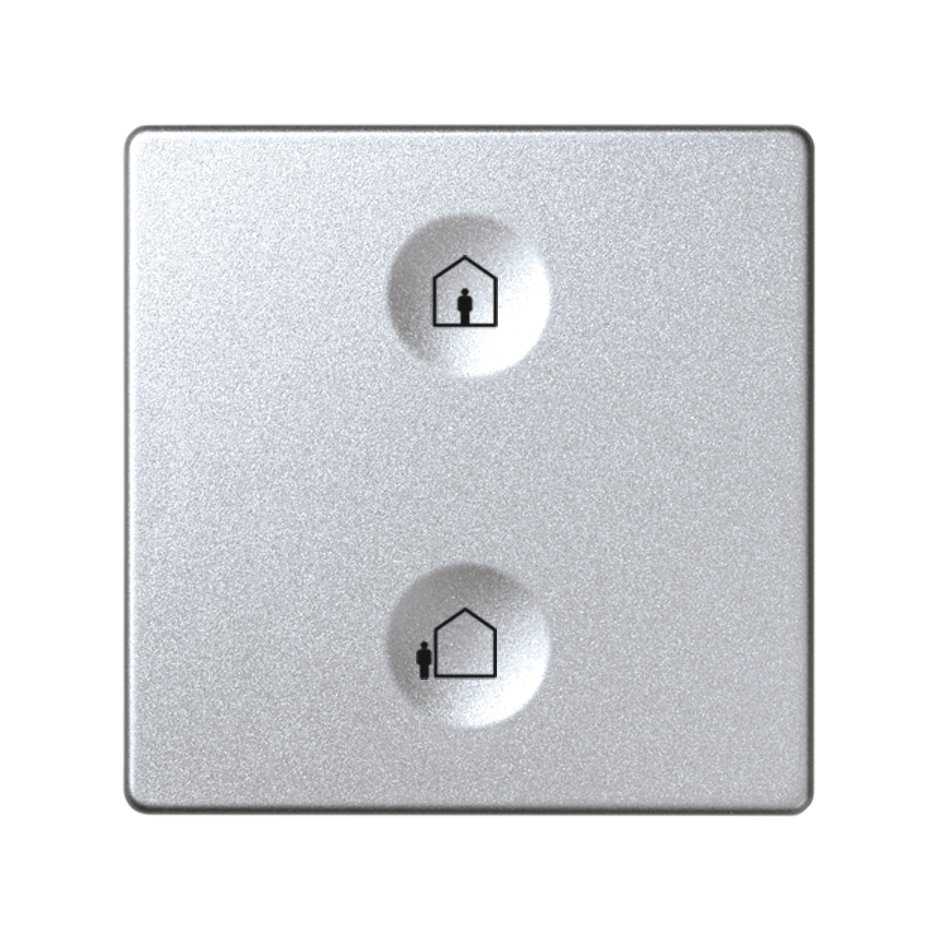

Custom button box 2 wait/enter functions for homes and offices cold aluminium Simon 82 Sense
Simon 82 Detail
Simon 82 Concept
Simon 82 Sense
-
Range
Sense
-
Remarks
Requires installation on LON or KNX bus coupling unit (8000100-039 or 8400100-039). Possibility of customising and creating your own configuration by choosing the functions you need from our icon library.
-
Finish
Matt aluminium
-
Material
Thermoplastic
-
Packaging contents
Keypad and instructions
-
Market available
CE
-
IP Rating
IP20
-
Number of possible elements
1 element
-
Operating temperature range (ºC)
0 - 45 ºC
-
Power supply (V~)
24 Vdc
-
Type of mechanism
Touch
-
Dimensions (mm)
55 x 55
-
Adjustment feedback
No
-
Adjustment range (ºC)
From 0 to 45 °C
-
Installation type
Suitable for surface and flush mounting
-
Type of terminal connection
Fast
-
Maintenance
Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.
-
Regulations
Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-5:2016
-
Product height
77MMT
-
Product width
137MMT
-
Product length
137MMT
-
Product volume
1445213MMQ
-
Product net weight
0.033KGM
-
Product gross weight
0.033KGM
-
Product EAN
8421053128503
-
Packaging quantity
1
-
Packaging height
77MMT
-
Packaging width
137MMT
-
Packaging length
137MMT
-
Packaging volume
129.688MMQ
-
Packaging net weight
0.033KGM
-
Packaging gross weight
0KGM
-
Packaging EAN
8421053128503
