Custom button box 2 wait/enter functions for homes and offices white Simon 82 Sense

REFERENCE NO.: 8000623-030
R.P.: Price on request
PACKAGING: 1 Unit
info_sistemas_compatibles = false Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82 Detail y Simon 82 Nature
Range:  Sense
Finish:  White
Intensity:  6,2 mA
Power supply:  From bus coupler
No. of functions:  2
Type of mechanism:  Touch
Number of RGB LEDs:  2
Adjustment feedback:  No
Feedback with sound:  Yes
Feedback with vibration:  Yes
Slide control:  No
Temperature probe:  Yes
Adjustment range:  From 0 to 45 °C
No. of possible elements:  1 element
Packaging contents:  Keypad and instructions
Remarks:  Requires installation on LON or KNX bus coupling unit (8000100-039 or 8400100-039). Possibility of customising and creating your own configuration by choosing the functions you need from our icon library.

TECHNICAL INFORMATION

Dimensions:  55x55 mm.
IP rating:  20
RAL:  Does not have
Relative humidity:  From 20 to 85% (without condensation)
Manufacturing material:  Electronic components with halogen-free insulation and thermoplastic trim
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-5:2016

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Operating temperature range:  From 0 °C to 45 °C
Storage temperature range:  25 to 70 ºC
Maintenance:  Use a soft cloth slightly dampened with soapy water. Do not use tissues and/or abrasive cleaners containing chlorine

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  1
Box measurement unit:  MM
Height:  273.000
Wide:  74.000
Depth:  84.000
Box volume:  129.688
Box volume measurement unit:  MMQ
Net weight of box:  0.033
Unit weight of box:  KGM
EAN code:  8421053128480
Available in multiple box:  No
Available on pallet:  No

GALLERY


Keypad application in office


Keypad application in office

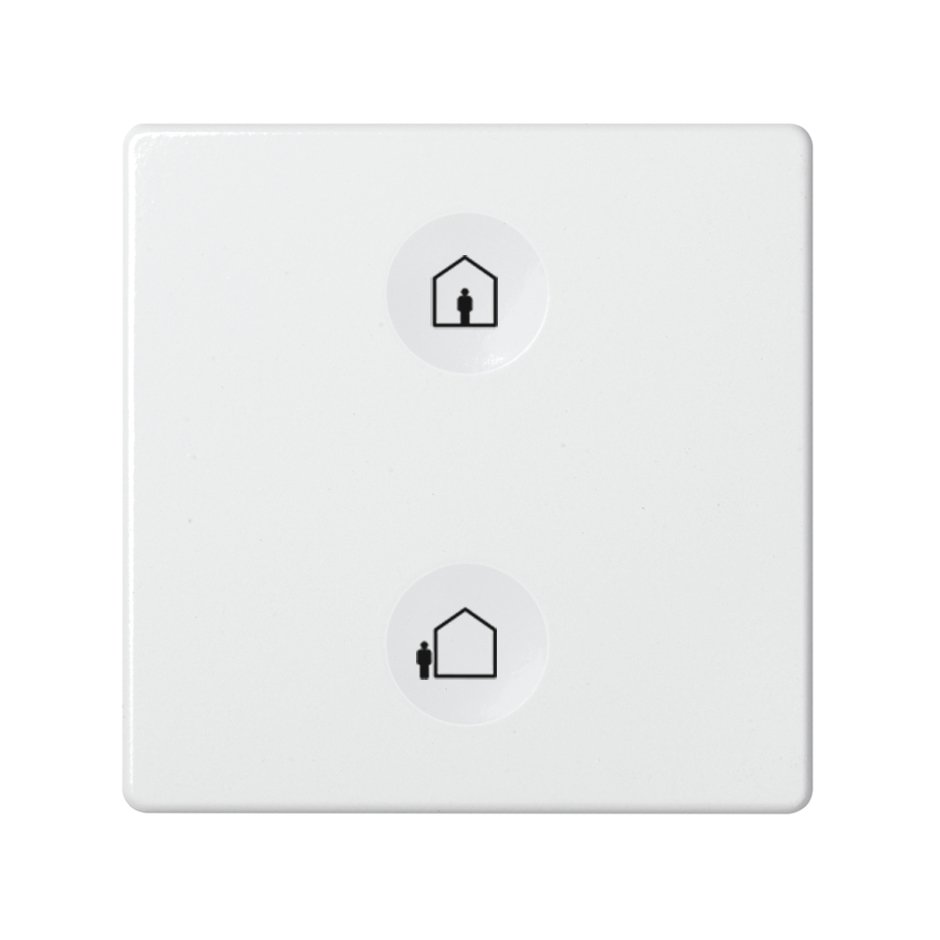

Custom keypad Simon 82 Sense white front view

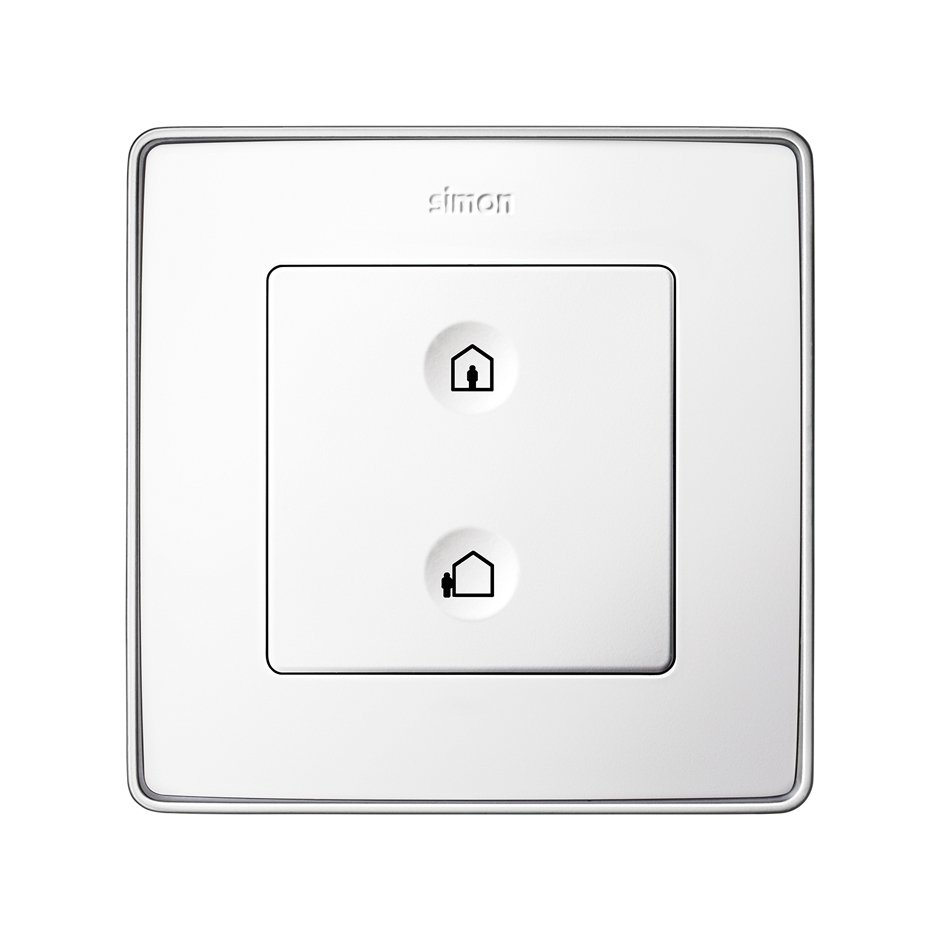

8000623-030-solucion-sense-keypad-2b-custom-t1-blanco-select-base-aluminio-simon-82-detail.jpg

This image represents the combination of different references. Look up our related products.

8000623-030-solucion-sense-keypad-2b-custom-t1-blanco-select-base-aluminio-simon-82-detail.jpg

INSTALLATION MANUAL

manual
Instruction sheet Custom button box 2 wait/enter functions for homes and offices white Simon 82 Sense DOWNLOAD

PRODUCT DECLARATIONS

manual
UE declaration Custom button box 2 wait/enter functions for homes and offices white Simon 82 Sense DOWNLOAD
