Bus coupling unit with LON system

REFERENCE NO.: 8000100-039
R.P.: Price on request
PACKAGING: 1 Unit
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82 Detail y Simon 82 Nature
Range:  Sense
Intensity:  27,6 mA
Power supply:  24 Vcc
Protocol:  LonWorks
Transmission medium:  TP/FT-10 (78kbps)
Programming LED:  Yes
Programming push button:  Yes
No. of possible elements:  1 element
Claw:  Simon 27
Packaging contents:  Coupling unit and instructions

TECHNICAL INFORMATION

No. of inputs:  2
Input type:  Digital, volt-free
Maximum voltage at the input:  24 V DC
Input intensity:  12 mA
Cable section admitted:  From 0.5 to 2.5 mm
Cable stripping necessary:  8 mm
IP rating:  20
RAL:  Does not have
Type of terminal connection:  Screw
Relative humidity:  From 20 to 85% (without condensation)
Manufacturing material:  Electronic components with halogen-free thermoplastic insulation
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  EN 50428; EN 60669; EN 50491-1; EN 50491-2

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Installable in flush mount junction box:  Universal
Recommended assembly height:  1.20 to 1.50 m
Operating temperature range:  From 0 °C to 45 °C
Storage temperature range:  25 to 70 ºC

LOGISTIC DATA

GALLERY


Bus coupling unit LON application in meeting room


Bus coupling unit LON application in lobby

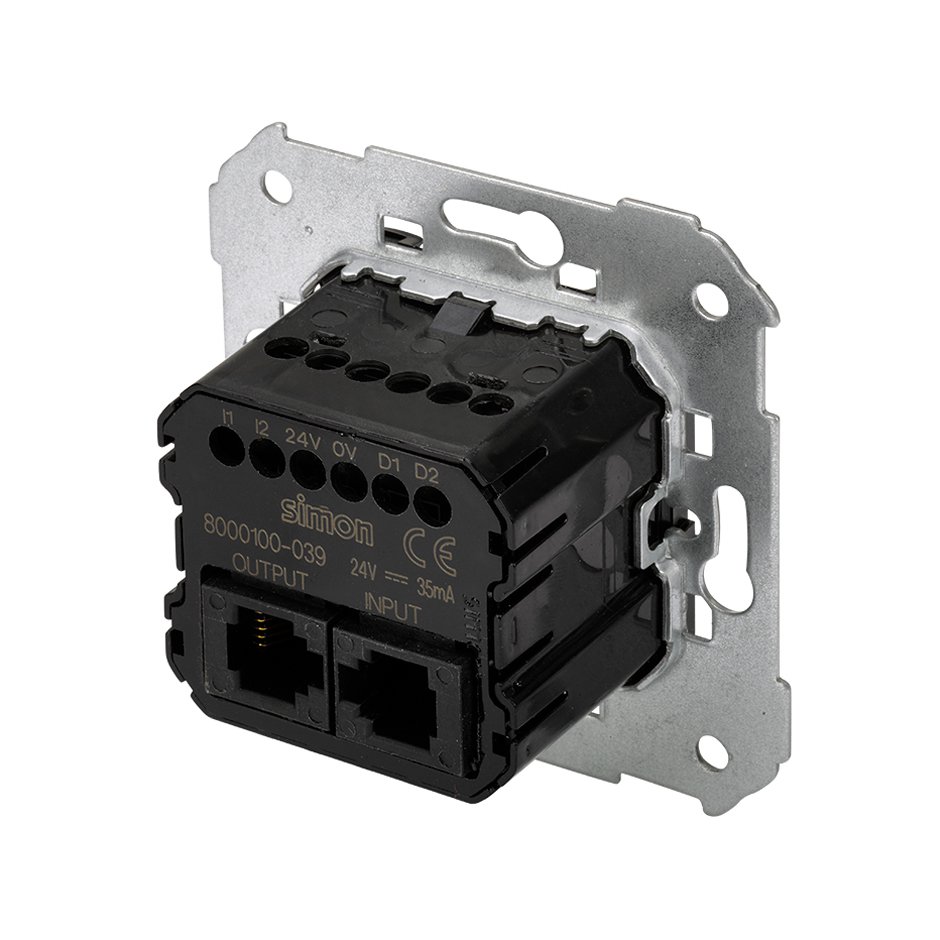

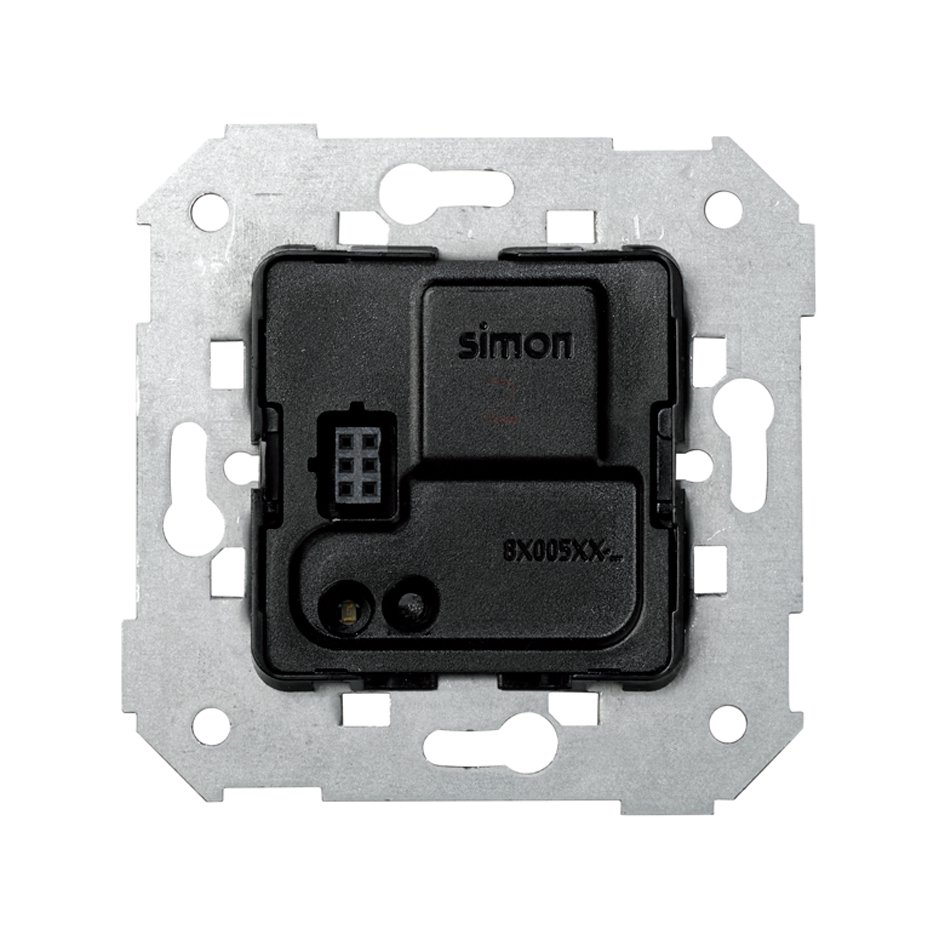

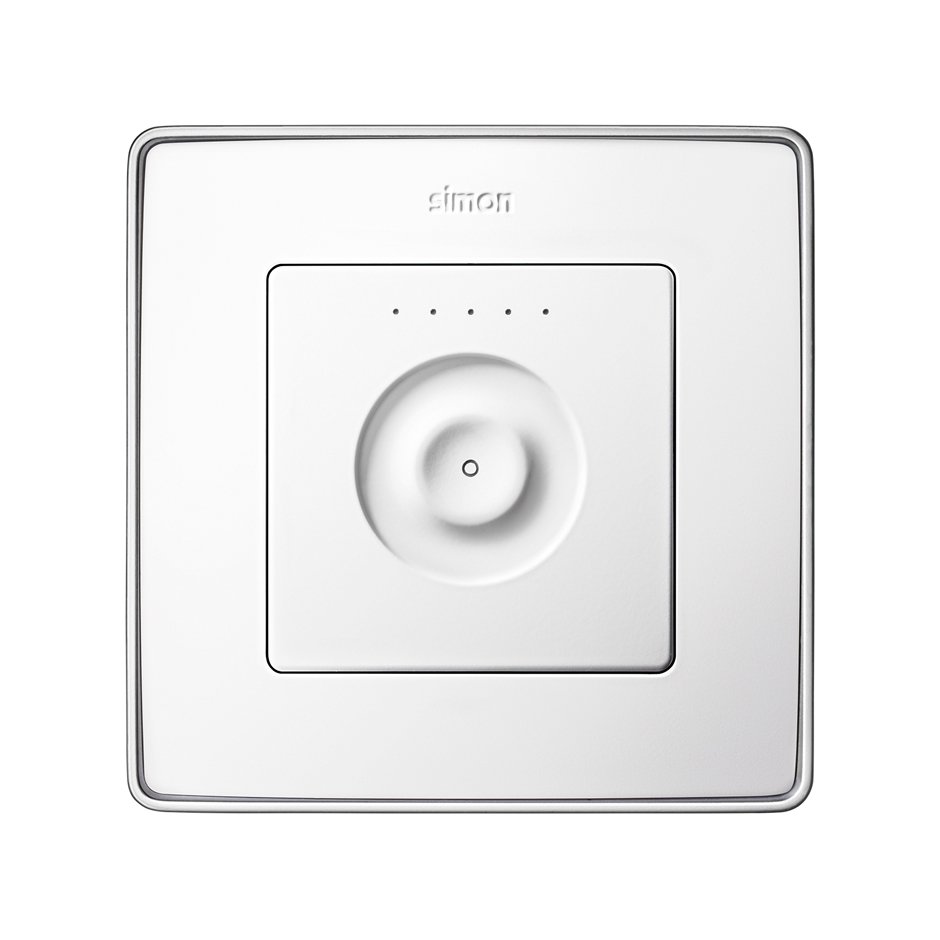

Bus coupling unit LON front view


INSTALLATION MANUAL

manual
Instruction sheet Bus coupling unit with LON system DOWNLOAD

PRODUCT DECLARATIONS

manual
UE declaration Bus coupling unit with LON system DOWNLOAD
