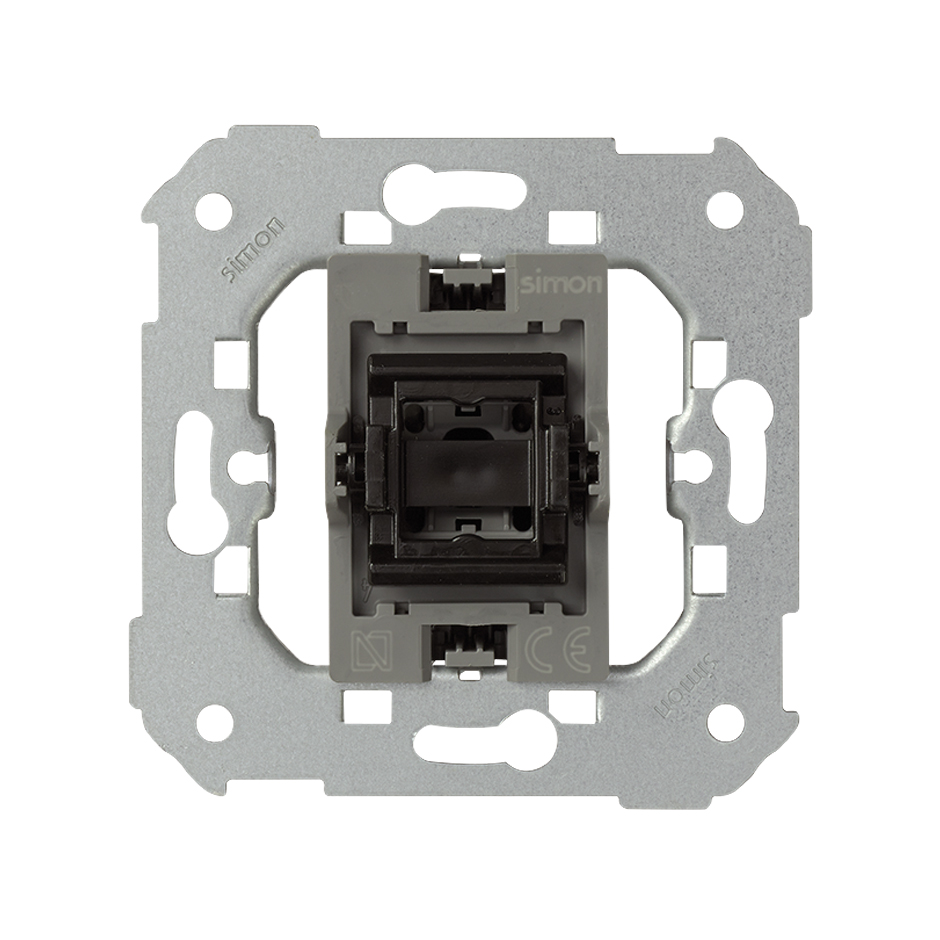

2-way switch 10AX 250V~ with 1click® terminal connection system
REFERENCE NO.:
7700201-039
R.P.:
Price on request
PACKAGING:
10Units
BASIC INFORMATION
No. of possible elements:
1 element
Claw:
Simon 27
Compatibility:
Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames
Packaging contents:
Mechanism and instructions
Remarks:
Possibility of implementing signalling function using cradle blinking and rocker with viewer.
Series:
Simon 77
Version:
Single
Intensity:
10 AX
Voltage:
250 V~
Type of terminal connection:
1 click connection (1 click®)
Type of mechanism:
Pivoting
TECHNICAL INFORMATION
Cable section admitted:
From 1.5 to 2.5 mm
Manufacturing material:
Metallic components with halogen-free thermoplastic insulation
Type of product:
Standard
Market available:
CE
REGULATIONS
Regulations:
Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008 + EN 60998-2-3:2004
INSTALLATION AND MAINTENANCE
Installation type:
Suitable for surface and flush mounting
Installable in flush mount junction box:
Universal
Operating temperature range:
5 to 40 ºC
Storage temperature range:
-25 to 50 ºC
LOGISTIC DATA
Packaging quantity:
10
Box measurement unit:
MM
Height:
83.000
Wide:
165.000
Depth:
221.000
Box volume:
3.027
Box volume measurement unit:
CDM
Net weight of box:
0.620
Gross weight of box:
0.630
Unit weight of box:
KGM
EAN code:
8421053075807
Multiple box packaging quantity:
50
Multiple box packaging quantity measurement unit:
ZCM
Height of multiple box:
0.000
Width of multiple box:
0.000
Depth of multiple box:
0.000
Multiple box volume:
0.000
Net weight of multiple box:
3.100
Gross weight of multiple box:
0.000
Unit weight of multiple box:
KGM
Multiple box EAN code:
8421053082690
