7700112-039

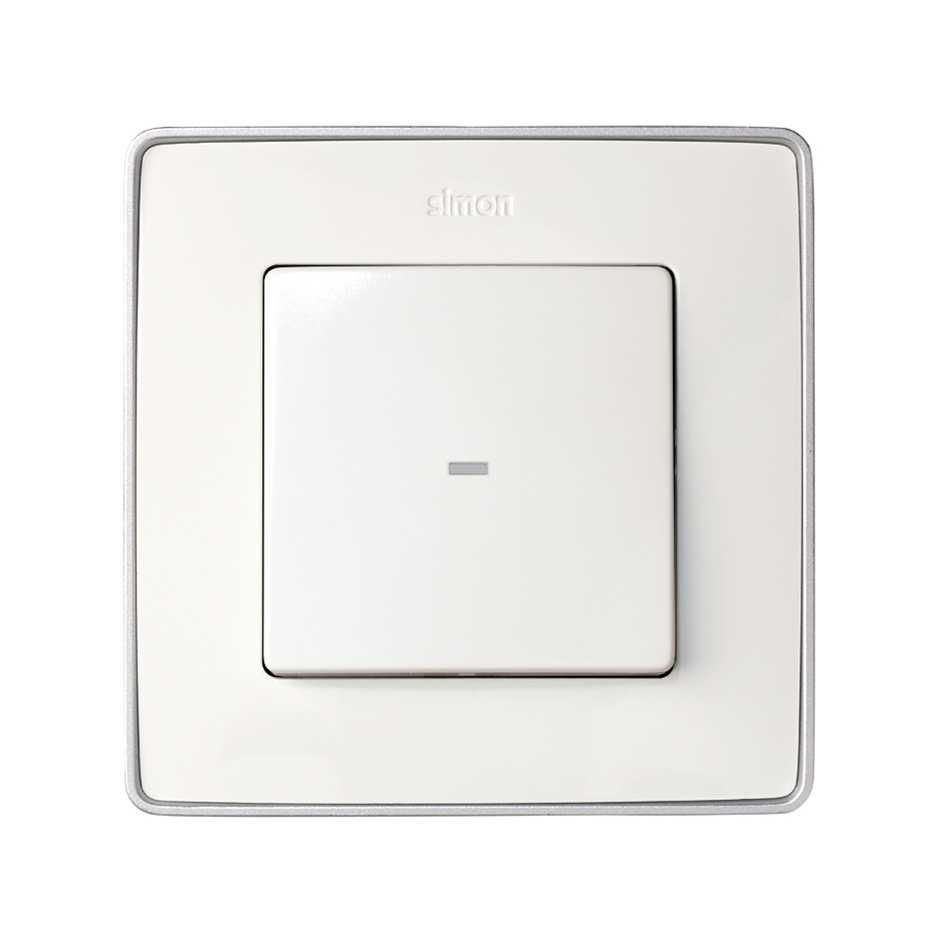

Single-pole switch 16AX 250V~ with built-in pilot light and 1click® terminal connection system

Price/Unit
Price on request
While stocks last
Packaging quantity
5 Units

Available downloads

Technical specifications
7700112-039-en-datasheet.pdf
Drawing files

  1. Esquemas_s31-75-77-82-88.pdf []

Certificates

AENOR 030-002221 20210927.pdf

Do you need advice?
Outstanding Features
Series
Simon 77
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Simon 82 Concept

<p class=></p>
Ref
8200011-093
Single rocker with viewer for S.77 mechanisms cold aluminium Simon 82 Detail
<p class=></p>
Ref
8200013-093
Single rocker for S.77 mechanisms combinable with viewers 82972 and 82982 cold aluminium Simon 82 Detail
<p class=></p>
Ref
8201111-098
Single rocker S.77 mechanisms with viewer Simon 82 Concept
<p class=></p>
Ref
8201111-096
Single rocker S.77 mechanisms with viewer Simon 82 Concept
<p class=></p>
Ref
8201111-090
Single rocker S.77 mechanisms with viewer Simon 82 Concept
<p class=></p>
Ref
8200013-038
Single rocker for S.77 mechanisms combinable with viewers 82972 and 82982 graphite Simon 82
<p class=></p>
Ref
8200013-031
Single rocker for S.77 mechanisms combinable with viewers 82972 and 82982 ivory Simon 82
<p class=></p>
Ref
8200013-030
Single rocker for S.77 mechanisms combinable with viewers 82972 and 82982 white Simon 82
<p class=></p>
Ref
8200011-038
Single rocker with viewer for S.77 mechanisms graphite Simon 82
<p class=></p>
Ref
8200011-031
Single rocker with viewer for S.77 mechanisms Simon 82 ivory
<p class=></p>
Ref
8200011-030
Single rocker with viewer for S.77 mechanisms white Simon 82
<p class=></p>
Ref
8200011-034
Single rocker with viewer for S.77 mechanisms champagne Simon 82
<p class=></p>
Ref
8200011-033
Single rocker with viewer for S.77 mechanisms aluminium Simon 82
<p class=></p>
Ref
8201111-094
Single Rocker with Viewer for Mechanisms S.77 Champagne Simon 82 Concept
Product Information
Support

With a fast installation without the need for terminal connection, Simon 77, Simon offers the single-pole switch with a single click, it will be ready to start to operate. This range of Simon 77, you just need to insert wire, and press the mechanism will be ready.

In addition, it protects the room in case of fire, thanks to its components isolated with halogen-free thermoplastic that allows you to reach a maximum temperature of between -25 and 50 ºC.

This single-pole switch with rocker operation, it includes a signaling function with pilot light of a consumption of 0.55 milliampere (mA) and a cable section cross-section of 1.5 to 2.5 mm

Designed for installation both recessed and surface-mounted, it is compatible with power supplies of 250 Volts, and 16 AX of intensity.

Ease and speed of installation is linked to the functionality, innovation and elegance of the designs Simon 77 to your room to offer the highest quality in its mechanisms electric.

Basic information

  • Compatibility

    Simon 75, Simon 82 Detail, Simon 82 Nature and Simon 82 frames

  • Remarks

    Can be combined with article 7700802-037 if replacing the light indicator.

  • Packaging contents

    Mechanism and instructions

Technical information

  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Consumption indicator (mA)

    0.55 mA

  • Intensity (A)

    16 AX

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance

  • Claw

    Simon 27

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    1 click connection (1 click®)

Regulation

  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008 + EN 60998-2-3:2004

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.065KGM

  • Product gross weight

    0.065KGM

  • Product EAN

    8421053256459

  • Packaging quantity

    5

  • Packaging height

    82MMT

  • Packaging width

    83MMT

  • Packaging length

    223MMT

  • Packaging volume

    1.518DMQ

  • Packaging net weight

    0.325KGM

  • Packaging gross weight

    0KGM

  • Packaging EAN

    8421053080184
