Single-pole switch 10AX 250V~ with 1click® terminal connection system

REFERENCE NO.: 7700101-039

R.P.: Price on request

PACKAGING: 10 Units

Variables de unidades de obras ---> -false-false

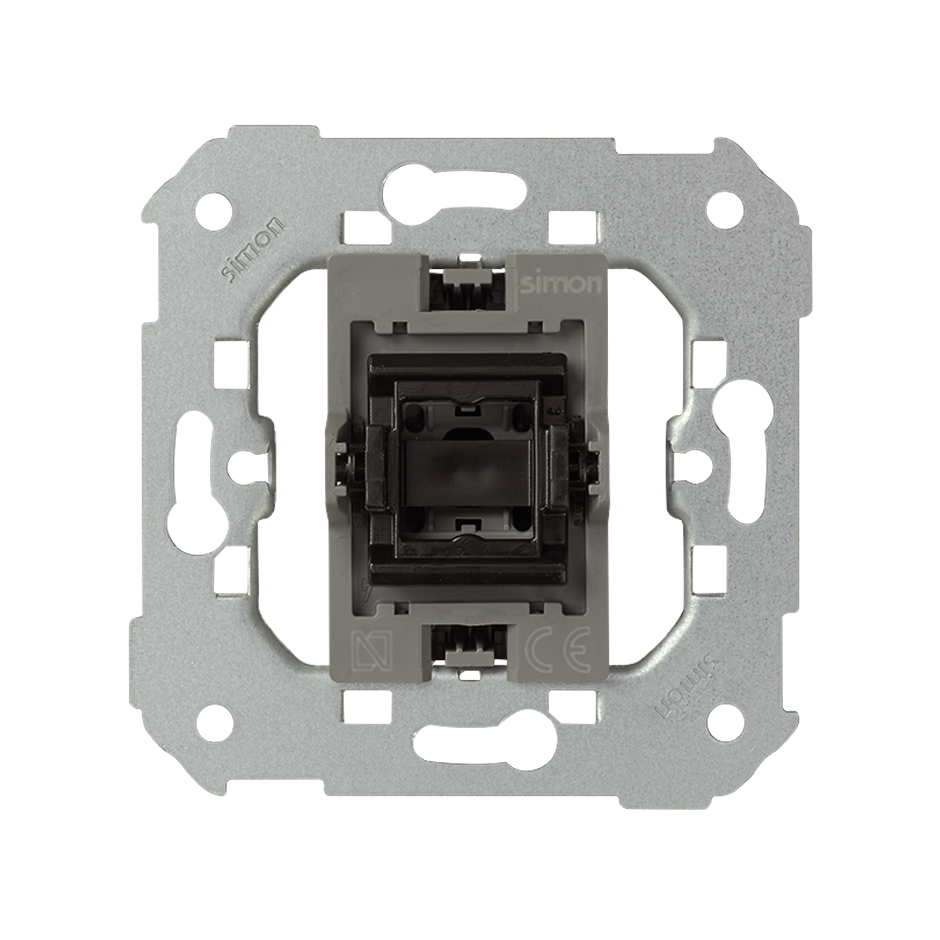

Single-pole switch 10AX 250V~ front view


This image represents the combination of different references


Single-pole switch 10AX 250V~ rear view

Single-pole switch 10AX 250V~ packaging

Solution light indicator for mechanisms

SERIES: Simon 77 INTENSITY: 10 AX TYPE OF TERMINAL CONNECTION: 1 click connection (1 click®) TYPE OF MECHANISM: Pivoting COMPATIBLE SERIES: Simon 82 Detail Simon 82 Nature Simon 82 Simon 75 Simon 88 Rockers

Product description

Single-pole switch with 10 AX current and a voltage of 250V, with 1click ® terminal connection system, belonging to the Simon 77 series. The Simon 77 series offers new mechanisms that allow you to emborn without having to strip or braid the wire and you will not have to use additional tools to place them, so we will reduce the installation time. The Simon 77 mechanisms are fully compatible with Simon 82, Simon 82 Nature, Simon 75 and Simon 88. It has a rocker operation and offers the possibility of implementing signaling function via cradle blinking and rocker with viewer. This switch can be installed in surface-mounted and recessed in a place with a temperature located between 5 and 40ºC, although it can withstand extreme temperatures of -25 to 50ºC, approximately. It supports a cable section of 1.5 to 2.5 mm and has been manufactured with metal components with halogen-free thermoplastic insulation, complying, in addition, in its manufacture, with the regulations UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009, UNE EN 60998-2-3: 2005.

BASIC INFORMATION

Indicator function: No

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

Packaging contents: Mechanism and instructions

Remarks: Possibility of implementing signalling function using cradle blinking and rocker with viewer.

Series: Simon 77

Version: Single

Intensity: 10 AX

Voltage: 250 V~

Type of terminal connection: 1 click connection (1 click®)

Type of mechanism: Pivoting

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Manufacturing material: Metallic components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008 + EN 60998-2-3:2004

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 82.000

Wide: 165.000

Depth: 223.000

Box volume: 3.027

Box volume measurement unit: CDM

Net weight of box: 605.000

Unit weight of box: KGM

EAN code: 8421053075814

Available in multiple box: Yes

Multiple box packaging quantity: 50

Multiple box packaging quantity measurement unit: ZCM

Height of multiple box: 0.000

Width of multiple box: 0.000

Depth of multiple box: 0.000

Multiple box volume: 0.000

Net weight of multiple box: 3025.000

Unit weight of multiple box: KGM

Multiple box EAN code: 8421053082683

Available on pallet: Yes
