Switch for card 5A 230V~ with light indicator and adjustable timing from 0 seconds to 10 minutes

REFERENCE NO.: 75558-39

R.P.: Price on request

PACKAGING: 1Unit

Variables de unidades de obras ---> -false-false

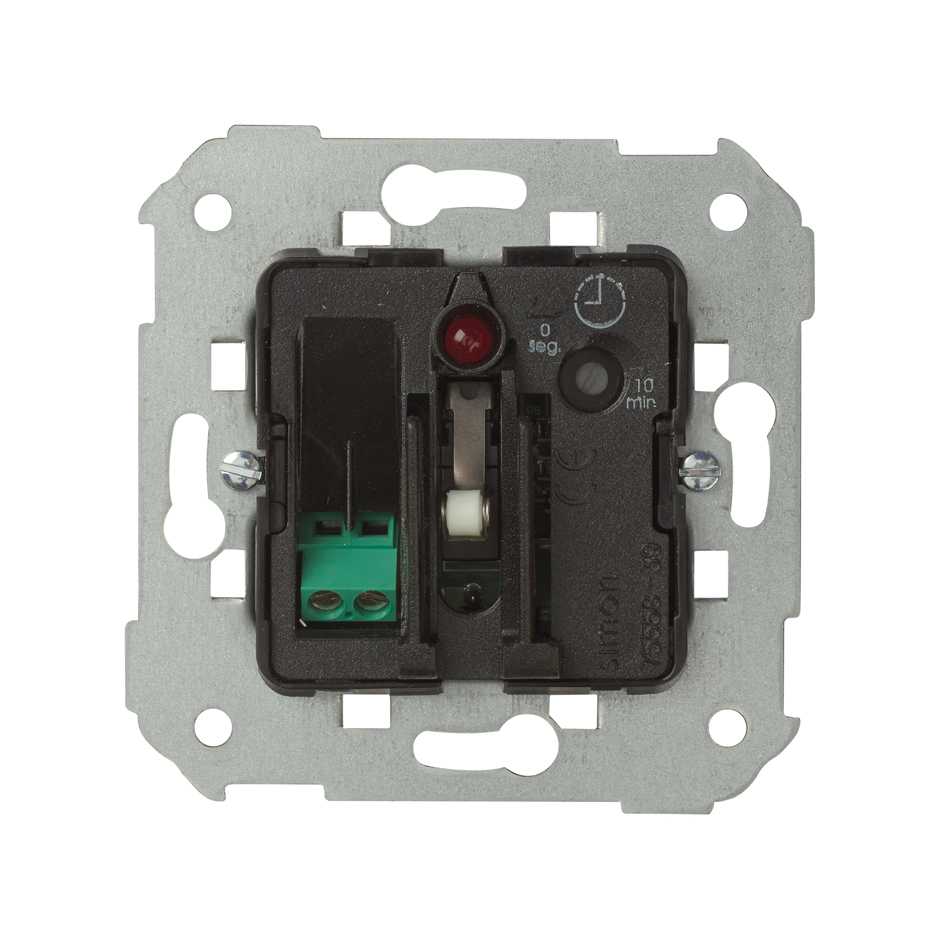

Card switch 5A 230V~ front view


This image represents the combination of different references

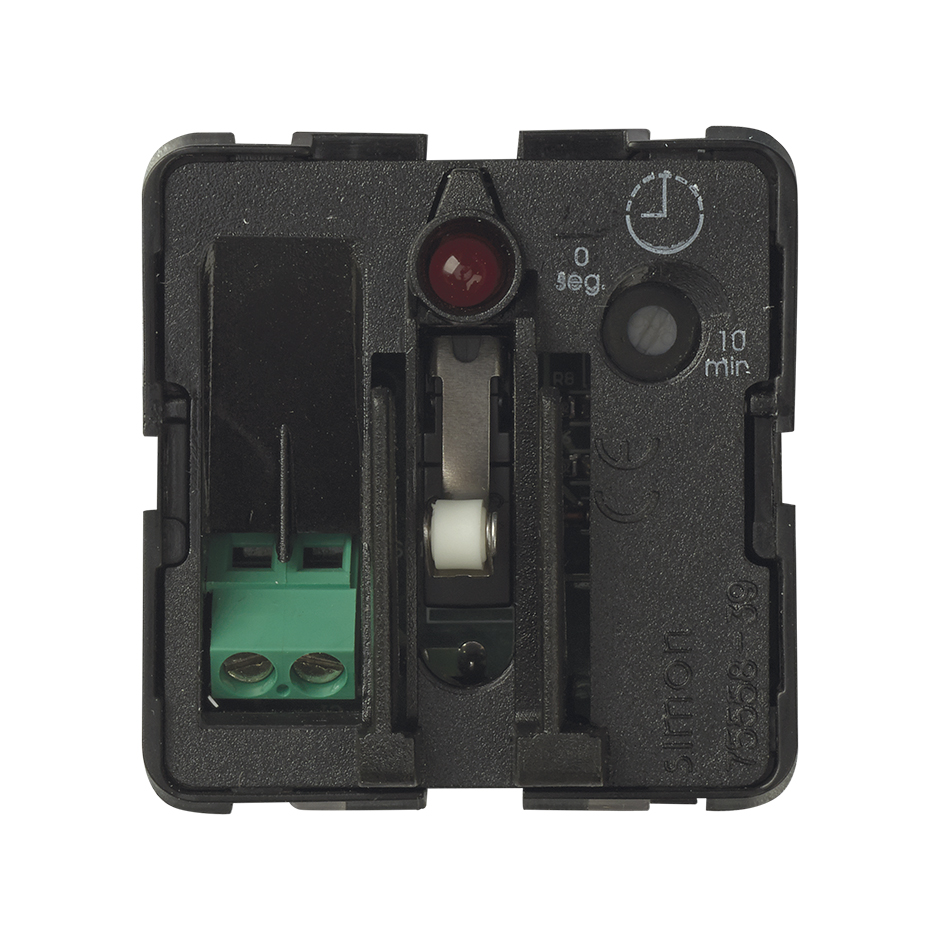

Card switch 5A 230V~ rear view

Card switch 5A 230V~ packaging


SERIES: Simon 82 INTENSITY: 5 A TYPE OF TERMINAL CONNECTION: Screw TYPE OF MECHANISM: Card Covers

82078-93

82078-60

82078-68

82078-61

82078-63

82078-64

Product description

With timing adjustable between 0 seconds and 10 minutes, this switch for card 5A and 230V belongs to the range of special control mechanisms of the Simon 82 series, it is also valid for the 88 series. Includes indicator light with 1 mA consumption. It is suitable both for surface or flush mounting and is made of metal components with halogen-free thermoplastic insulation. Its operation is of the tilting type. The system flush-mounted that includes is to tornillo.Hay to keep in mind that the wire is 1.0 to 1.5 mm and the stripping of the wire required to perform successful connection is 10 mm. Simon 82 represents the essence of a new design concept represented by pure lines and an extra-flat profile. Balance and simplicity adapted to the latest market trends.

BASIC INFORMATION

Indicator function: Yes

Consumption indicator: 1 mA

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Frames Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations, Simon 44 Aqua, Simon 75, Simon 82 Detail, Simon 82 Nature and Simon 82

Packaging contents: Mechanism and instructions

Remarks: It is recommended to protect the faston connectors with a heat shrink sleeve.

Series: Simon 82

Intensity: 5 A

Voltage: 250 V~

Type of terminal connection: Screw

Type of mechanism: Card

Disconnection timer: 0 seconds to 10 minutes

TECHNICAL INFORMATION

Cable section admitted: From 1.0 to 1.5 mm

Cable stripping necessary: 10 mm

IP rating: 20

Manufacturing material: Metal components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

Frequency: 50Hz

REGULATIONS

Regulations: UNE-EN 61058-1:2004 + A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 1

Box measurement unit: MM

Height: 57.000

Wide: 76.000

Depth: 76.000

Box volume: 329232.000

Box volume measurement unit: MMQ

Net weight of box: 0.090

Unit weight of box: KGM

EAN code: 8421053058381

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No


Card switch application in hotel

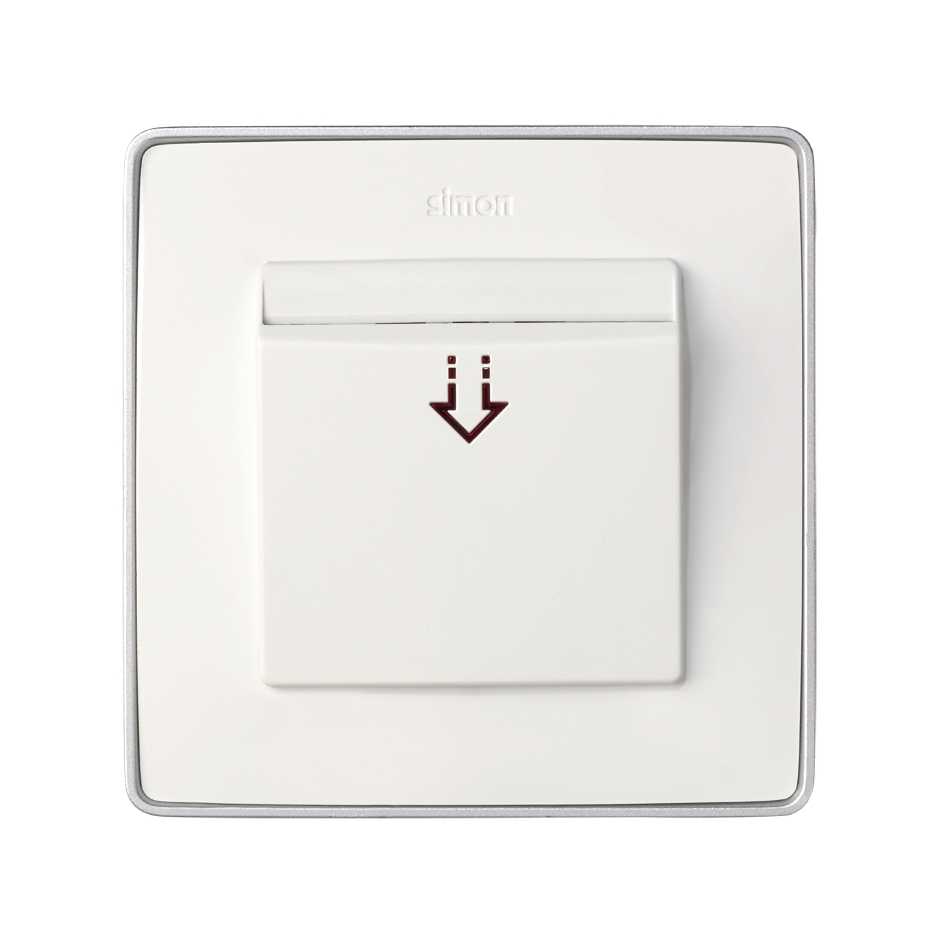

Card switch 5A 230V~ front view


This image represents the combination of different references
