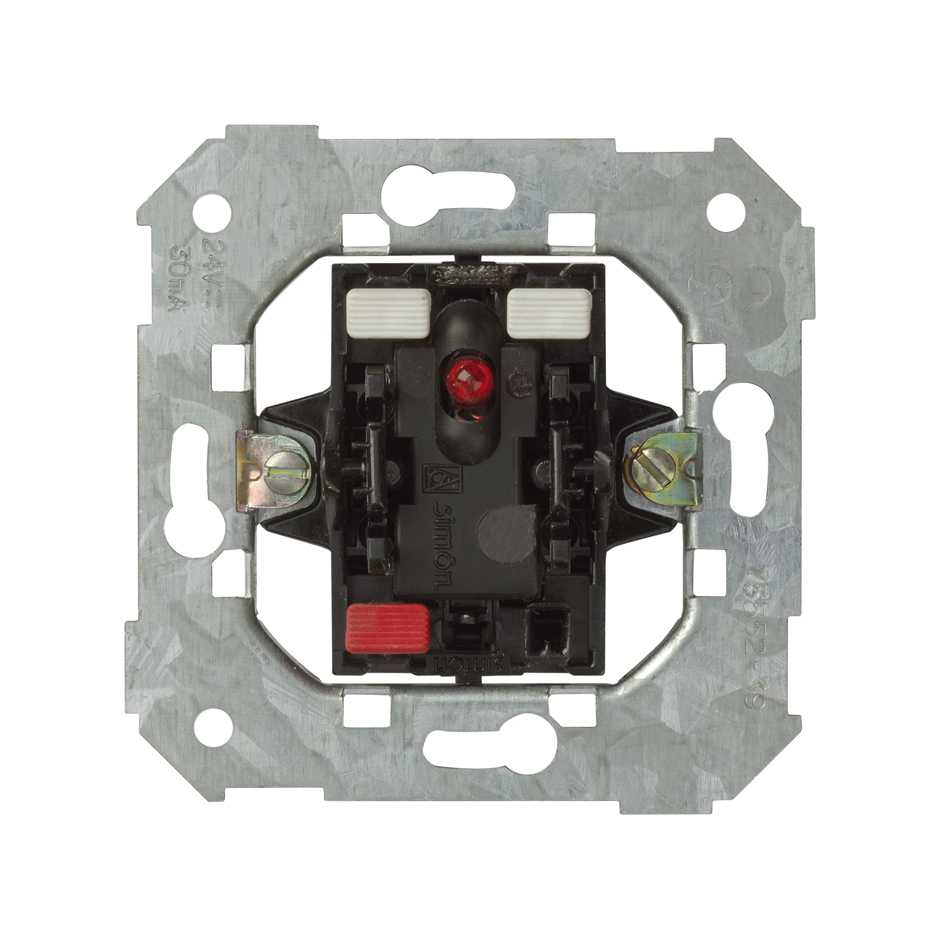

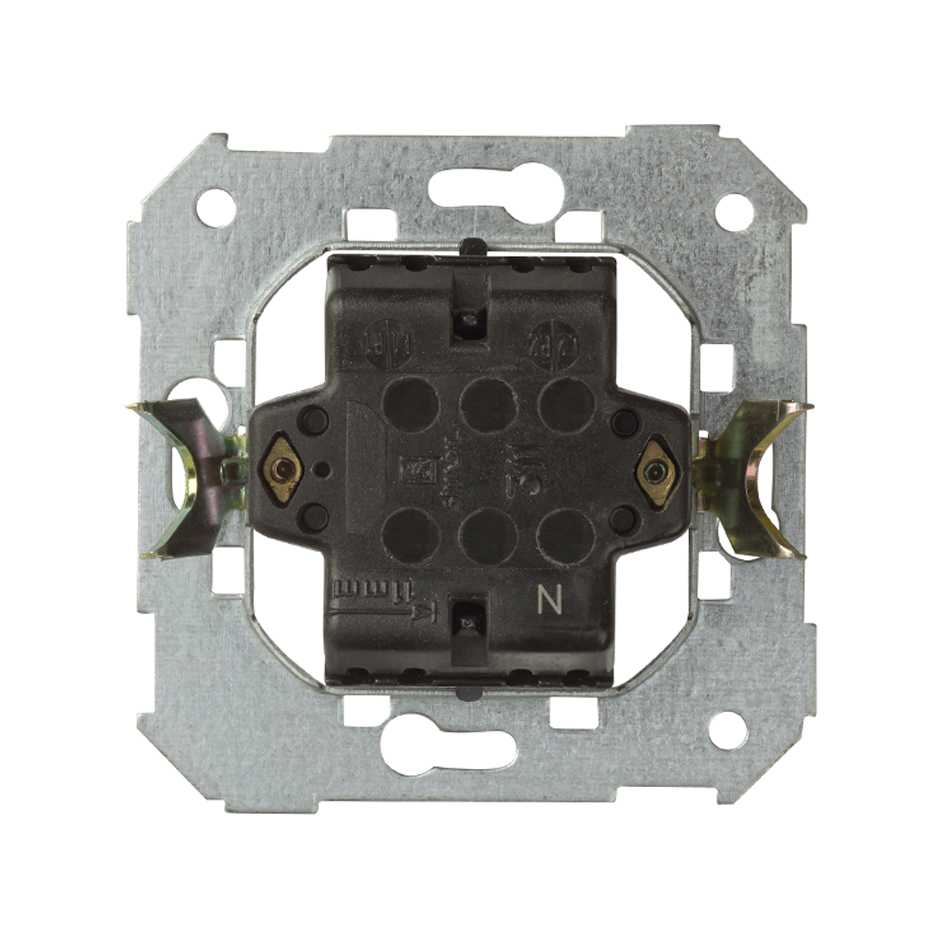

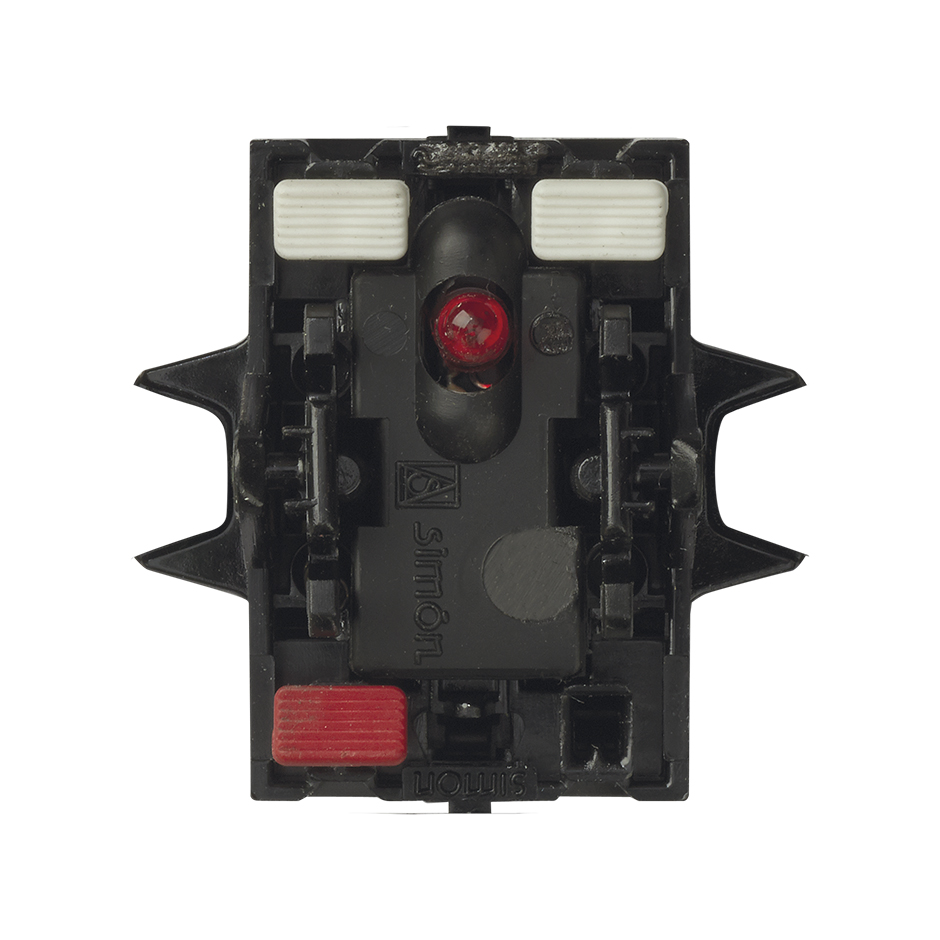

Push-button switch 10A 24V~ with built-in red LED and fast terminal connection system
REFERENCE NO.:
75552-39
R.P.:
Price on request
PACKAGING:
10Units
BASIC INFORMATION
Indicator function:
Yes
Consumption indicator:
1 mA
No. of possible elements:
1 element
Claw:
Simon 27
Compatibility:
Simon 75, Simon 82 Detail, Simon 82 Nature and Simon 82 frames
Packaging contents:
Mechanism
Series:
Simon 75
Version:
Single
Intensity:
10 А
Voltage:
24 V~
Type of terminal connection:
Fast
Type of mechanism:
Pivoting
TECHNICAL INFORMATION
Cable section admitted:
From 1.5 to 2.5 mm
Cable stripping necessary:
11 mm
IP rating:
20
Manufacturing material:
Metallic components with halogen-free thermoplastic insulation
Type of product:
Standard
Market available:
CE
REGULATIONS
Regulations:
Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008
INSTALLATION AND MAINTENANCE
Installation type:
Suitable for surface and flush mounting
Installable in flush mount junction box:
Universal
Operating temperature range:
5 to 40 ºC
Storage temperature range:
-25 to 50 ºC
LOGISTIC DATA
Available in display box:
Yes
Packaging quantity:
10
Box measurement unit:
MM
Height:
82.000
Wide:
165.000
Depth:
223.000
Box volume:
3017190.000
Box volume measurement unit:
MMQ
Net weight of box:
0.730
Unit weight of box:
KGM
EAN code:
8421053029336
Available in multiple box:
No
Multiple box measurement unit:
MM
Multiple box packaging quantity measurement unit:
UN
Multiple box volume measurement unit:
MM3
Unit weight of multiple box:
KG
Available on pallet:
No
GALLERY
MODULAR SOLUTION

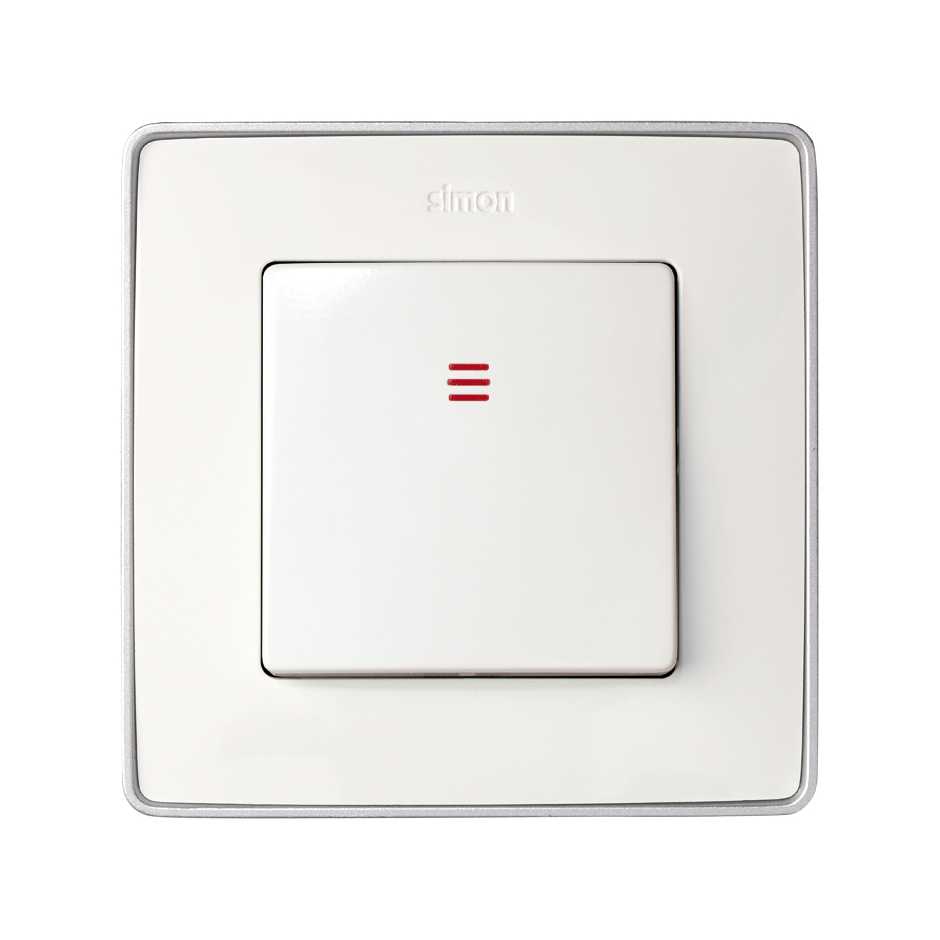

Push button and red LED with rocker and frame Simon 82 Detail Select white aluminium base
R.P.:
Price on request
REFERENCE NO.: 8201610-243
R.P.:
Price on request
Frame for 1 element white aluminium base Simon 82 Detail Select
Push button and red LED with rocker and frame Simon 82 Detail Original ivory
R.P.:
Price on request
REFERENCE NO.: 8200610-031
R.P.:
Price on request
Frame for 1 element ivory Simon 82 Detail Original
Push button and red LED with rocker and frame Simon 82 Detail Select graphite aluminium base
R.P.:
Price on request
REFERENCE NO.: 82011-38
R.P.:
Price on request
Single rocker for switches with light graphite Simon 82
REFERENCE NO.: 8201610-240
R.P.:
Price on request
Frame for 1 element graphite aluminium base Simon 82 Detail Select
Push button and red LED with rocker and frame Simon 82 Detail Select cold aluminium chrome base
R.P.:
Price on request
REFERENCE NO.: 8201610-093
R.P.:
Price on request
Frame for 1 element cold aluminium chrome base Simon 82 Detail Select
Push button and red LED with aluminium rocker and frame Simon 82 Nature matt stainless steel aluminium interior
R.P.:
Price on request
REFERENCE NO.: 82011-33
R.P.:
Price on request
Single rocker for switches with light aluminium Simon 82
Push button and red LED with champagne rocker and frame Simon 82 Nature maple champagne interior
R.P.:
Price on request
REFERENCE NO.: 82011-34
R.P.:
Price on request
Single rocker for switches with light champagne Simon 82
