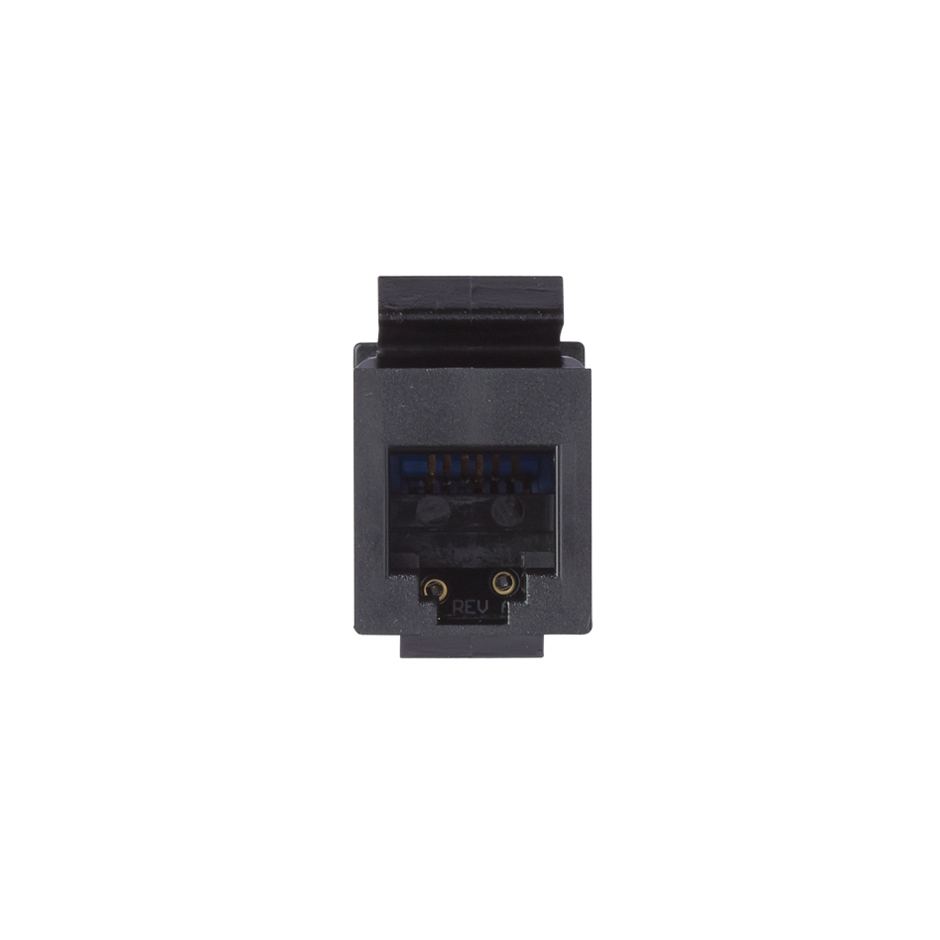

Telephone connector category 3 front view

This image represents the combined solution of different references

Telephone connector category 3 packaging

Telephone connector category 3 front view

This image represents the combined solution of different references

Telephone connector category 3 packaging

Ref
75528-39

Telephone connector with 6 category-3 connections

Price/Unit
Price on request
Discontinued
Packaging quantity
5 Units

Available downloads

Technical specifications
75528-39-datasheet-en.pdf
Product declaration

  1. UES0027.pdf [313KB]

Do you need advice?
Outstanding Features
Series
Simon 75
Series Compatibility

Simon 82

Simon 82 Nature

Simon 82 Detail

Simon 28

Simon 82 Centralizaciones

Simon 27 Scudo

Simon 31

Simon 88

Simon 73 Loft

Simon Aqua

<p class=></p>
Ref
82006-93
Flat voice and data plate with dust cover for 2 AMP® RJ45 connectors cold aluminium Simon 82 Detail
<p class=></p>
Ref
82005-93
Flat voice and data plate with dust cover for 1 AMP® RJ45 connector cold aluminium Simon 82 Detail
<p class=></p>
Ref
82579-38
Angled voice and data plate with dust cover for 2 RJ45 connectors graphite Simon 82
<p class=></p>
Ref
82579-31
Angled voice and data plate with dust cover for 2 RJ45 connectors graphite Simon 82
<p class=></p>
Ref
82579-30
Angled voice and data plate with dust cover for 2 RJ45 connector white Simon 82
<p class=></p>
Ref
82578-38
Angled voice and data plate with dust cover for 1 RJ45 connector graphite Simon 82
<p class=></p>
Ref
82578-31
Angled voice and data plate with dust cover for 1 RJ45 connector ivory Simon 82
<p class=></p>
Ref
82578-30
Angled voice and data plate with dust cover for 1 RJ45 connector white Simon 82
<p class=></p>
Ref
82006-38
Flat voice and data plate with dust cover for 2 AMP® RJ45 connectors graphite Simon 82
<p class=></p>
Ref
82006-31
Flat voice and data plate with dust cover for 2 AMP® RJ45 connectors ivory Simon 82
<p class=></p>
Ref
82006-30
Flat voice and data plate with dust cover for 2 AMP® RJ45 connectors white Simon 82
<p class=></p>
Ref
82005-38
Flat voice and data plate with dust cover for 1 AMP® RJ45 connector graphite Simon 82
<p class=></p>
Ref
82005-31
Flat voice and data plate with dust cover for 1 AMP® RJ45 connector ivory Simon 82
<p class=></p>
Ref
82005-30
Flat voice and data plate with dust cover for 1 AMP® RJ45 connector white Simon 82
<p class=></p>
Ref
82006-34
Flat voice and data plate with dust cover for 2 AMP® RJ45 connectors champagne Simon 82
<p class=></p>
Ref
82006-33
Flat voice and data plate with dust cover for 2 AMP® RJ45 connectors aluminium Simon 82
<p class=></p>
Ref
82005-34
Flat voice and data plate with dust cover for 1 AMP® RJ45 connector champagne Simon 82
<p class=></p>
Ref
82005-33
Flat voice and data plate with dust cover for 1 AMP® RJ45 connector aluminium Simon 82
Product Information
Downloads
Support

Six-pin, Category 3 telephone connector, a valid RJ11 female connector compatible with the series: Simon 27, Simon 31, Simon 73, Simon 75, Simon 82 and Simon 88. This telephone connector belongs to the sockets category, TV / RJ / Multimedia, the type of terminal connection is by insertion, with wire cross-section between 0.3 and 0.5 mm, thus complying the regulation IEC 14709: 1997.

The telephone connector is made of halogen-free metal components with thermoplastic insulation, offering maximum performance in temperatures between 5ºC and 40ºC. It has six pins and two wires for connection.

The RJ11 connector will allow you to obtain a unique quality in telephone connections, as it is designed to offer the maximum design and above all to meet all the needs in electronic components for each of the customers who obtain it.

Basic information

  • Compatibility

    Frames Simon 28, Simon 31, Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88

  • Packaging contents

    RJ12 connector

Technical information

  • Market available

    CE

  • Number of connectors

    1

  • Number of contacts

    6

  • Number of wires

    2

  • Cable section admitted (mm)

    From 0,3 to 0,5 mm

  • Connector type

    RJ11

  • Format

    RJ

  • IP Rating

    IP20

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Type of mechanism

    Insertion

Installation and maintenance

  • Installable in flush mount junction box

    Universal

  • Type of terminal connection

    Insertion

Regulation

  • Regulations

    Directive 2011/65/UE RoHS + EN 50581:2012

Logistics Information

  • Product volume

    597780MMQ

  • Product net weight

    0.015KGM

  • Product gross weight

    0.015KGM

  • Product EAN

    8421053017227

  • Packaging quantity

    5

  • Packaging height

    81MMT

  • Packaging width

    82MMT

  • Packaging length

    90MMT

  • Packaging volume

    1517738MMQ

  • Packaging net weight

    0.075KGM

  • Packaging gross weight

    0.075KGM

  • Packaging EAN

    8421053017227
