75526-35

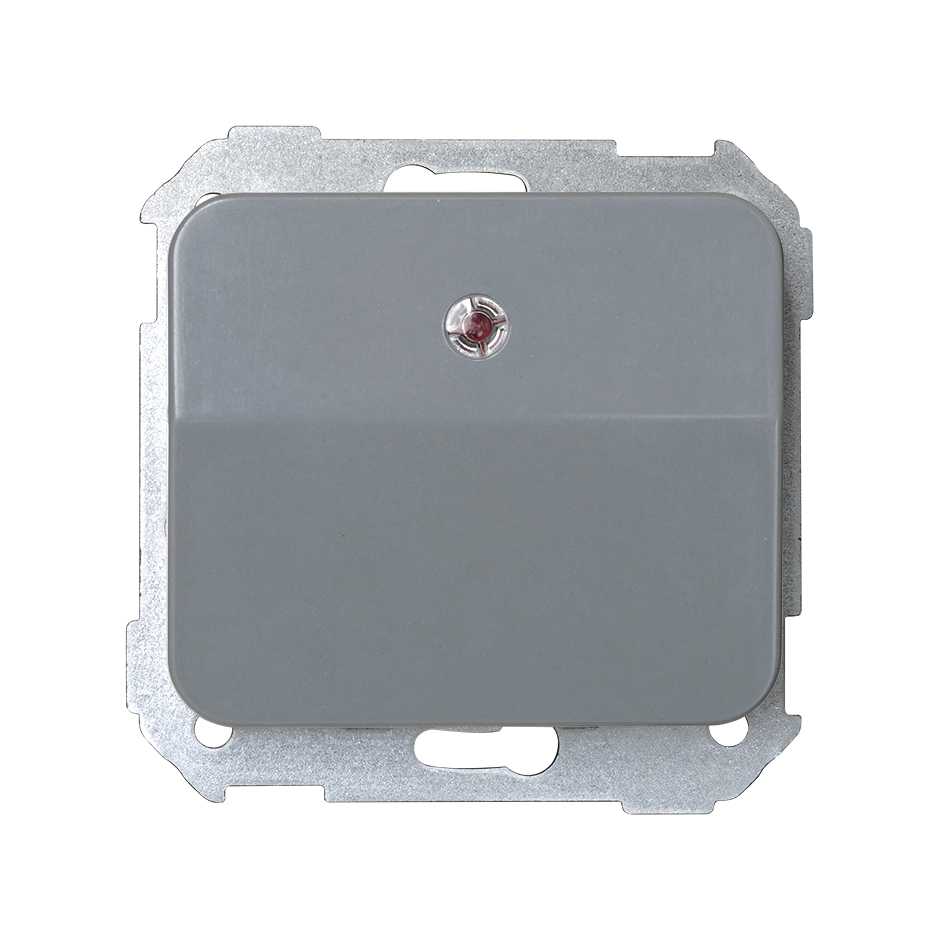

2-way switch for card with 1 micro switch and light indicator 250V~ grey Simon 75

Price/Unit
€34.06
Discontinued
Packaging quantity
5 Units

Available downloads

Data sheet

75526-35.pdf

Product declaration
Outstanding Features
Series
Simon 75
Series Compatibility

Simon 75

Simon 82 Concept

Product Information

2-way switch for card with 1 microswitch and indicator light has a current of 6 A and a voltage of 250 V~, comes in grey colour, it belongs to the wide and extensive range of products of the Simon 75 brand. Fast terminal connection and works with card. It is recommended the installation combined with a contactor / relay. If this is not the case, the maximum current of the 2-way switch is 6º (inductive 2A), it is very important when position, place the frame to know that the tabs of the same. It has a signal function with a consumption of 1 mA, for its installation it will suffice to apply pressure or place on the surface, the wire is 0.5 mm, the material of manufacture is to socket of metal components with halogen-free insulation and thermoplastic trims that are designed to reach temperatures that can oscillate without any inconvenience between 5 and 40º, and can support up to a maximum of between -25 and 50º C. Complies with the regulation UNE-EN 60669-1: 1996 + 60669-2-1: 2002 + 60669-2-3: 1999. For hygiene, clean with a soft, dry cloth, do not use abrasive cloths and / or abrasive cleaners containing chlorine.

Basic information
  • Compatibility

    Simon 75 frames

  • Remarks

    A contactor must be installed at the output of the mechanism. If this is not done, the maximum current of the switch is 10 A resistive (1.5 A inductive). It is recommended to protect the faston connectors with a heat shrink sleeve.

  • Finish

    Grey

  • Packaging contents

    Mechanism and cover

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    0,5 mm

  • Consumption indicator (mA)

    1 mA

  • Frequency (Hz)

    50 Hz

  • Intensity (A)

    10 (1,5 ind.) A

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Power supply (V~)

    250 V~

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Card

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Installable in flush mount junction box

    Universal

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Faston

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + + EN 61058:2002 + EN 61058:2002 A2:2008 + EN 61058-2-1:2011

Logistics Information
  • Product volume

    1517738 MMQ

  • Product net weight

    0.08 KGM

  • Product gross weight

    0.08 KGM

  • Packaging quantity

    5

  • Packaging height

    82 MMT

  • Packaging width

    83 MMT

  • Packaging length

    223 MMT

  • Packaging volume

    3017190 MMQ

  • Packaging net weight

    0.4 KGM

  • Packaging gross weight

    0.4 KGM

  • Packaging EAN

    8421053017968
