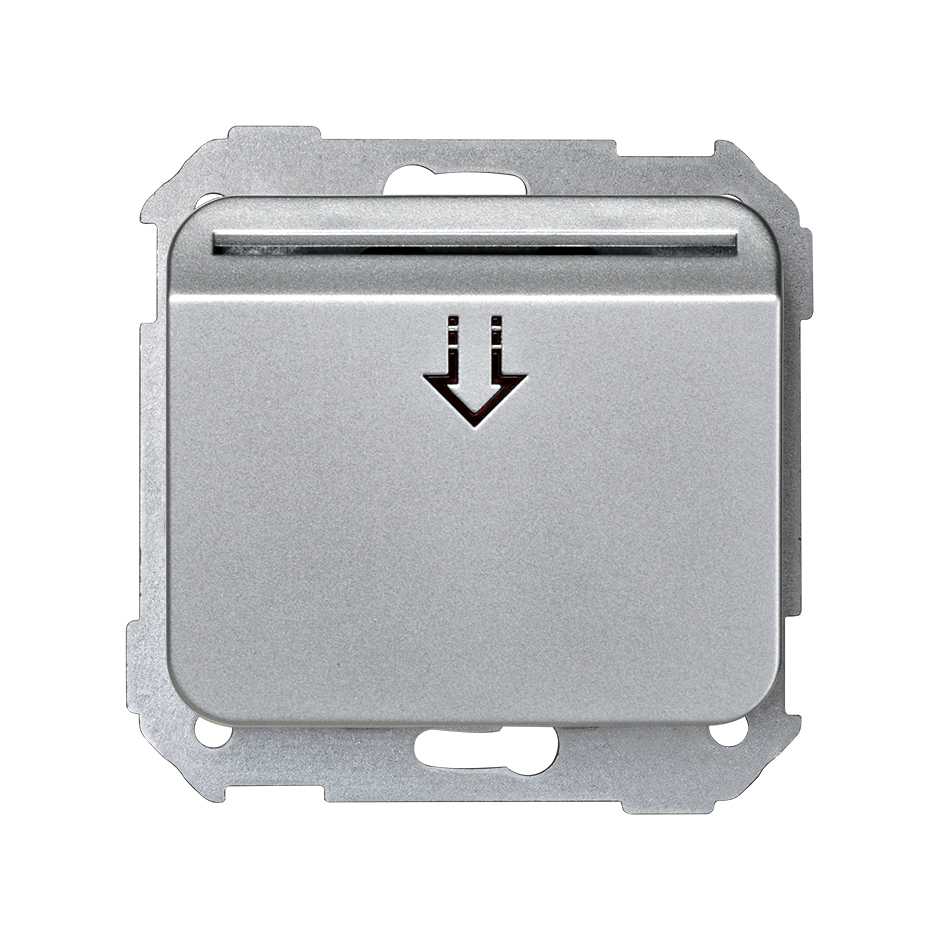

2-way card switch 1 micro switch 6A 250V~ built-in light Simon 75 aluminium front view

Ref
75526-33

2-way switch for card with 1 micro switch and light indicator 250V~ aluminium Simon 75

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
75526-33-datasheet-en.pdf
Product declaration

  1. UES0016.pdf [616KB]

Do you need advice?
Outstanding Features
Series
Simon 75
Series Compatibility

Simon 75

Simon 82 Concept

<p class=>Frame Simon 75 aluminium front view</p>
Ref
75610-33
Frame for 1 element aluminium Simon 75
Product Information
Downloads
Support

This Simon 75 series includes multiple options of design, thanks to all the combinations of colours (different finishes for rockers, parts pieces and frames) and also of shapes, as it has a rectangular design that adapts to two different shapes.

A 2-way switch is a switch that the 2-way switch, each time a detached circuit, connected to another. That ’ s why for Simon are all important.

This 2-way switch for card with 1 microswitch and indicator light (its code is the 75526-33) resists elements up to 6 Amps and 250 Volt. Its finish is in aluminium.

As far as its installation is concerned, we recommend that you do in combination with a contactor / relay. If not makes this way, remember that the maximum current of the 2-way switch is 6 Amps (2nd inductive). In terms of the installation of the frame, remember to break the flanges.

Basic information

  • Compatibility

    Simon 75 frames

  • Remarks

    A contactor must be installed at the output of the mechanism. If this is not done, the maximum current of the switch is 10 A resistive (1.5 A inductive). It is recommended to protect the faston connectors with a heat shrink sleeve.

  • Finish

    Aluminium

  • Packaging contents

    Mechanism and cover

Technical information

  • Market available

    CE

  • Cable section admitted (mm)

    0,5 mm

  • Consumption indicator (mA)

    1 mA

  • Frequency (Hz)

    50 Hz

  • Intensity (A)

    10 (1,5 ind.) A

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Power supply (V~)

    250 V~

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Card

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance

  • Installable in flush mount junction box

    Universal

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Faston

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + + EN 61058:2002 + EN 61058:2002 A2:2008 + EN 61058-2-1:2011

Logistics Information

  • Product volume

    1517738MMQ

  • Product net weight

    0.075KGM

  • Product gross weight

    0.075KGM

  • Packaging quantity

    5

  • Packaging height

    82MMT

  • Packaging width

    83MMT

  • Packaging length

    223MMT

  • Packaging volume

    3017190MMQ

  • Packaging net weight

    0.375KGM

  • Packaging gross weight

    0.375KGM

  • Packaging EAN

    8421053017951
