R/TV+SAT modular signal socket outlet intermediate

REFERENCE NO.: 75467-69

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

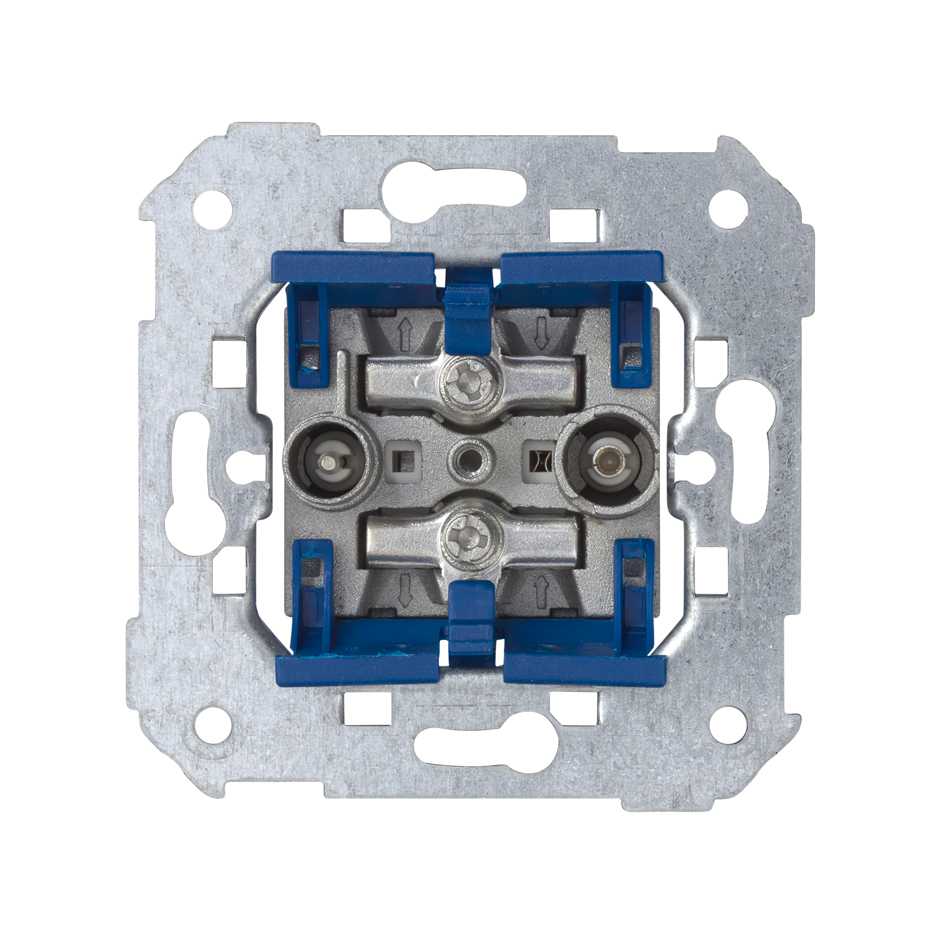

R/TV+SAT modular signal socket outlet intermediate front view

This image represents the combination of different references

R/TV+SAT modular signal socket outlet intermediate packaging


SERIES: Simon 75 FORMAT: R/TV+SAT CONNECTOR TYPE: IEC TYPE: Intermediate Plates

82097-93

82097-30

82097-31

82097-33

82097-34

82097-38

Product description

There are many ways to receive the television signal on the multiple devices that exist today. Regardless of the system we choose, the important thing is to receive a perfect TV signal that does not have the uncomfortable signal cuts. To meet this objective, we have the modular signal input for the intermediate R-TV + SAT formats of the Simon 75 series, its features make it one of the most complete signal sockets in the industry: Screw connection, insertion operation, based on IEC 9.5 mm Ø connectors, section of wire from 6 to 8 mm and stripping of 7 mm wire it has two IEC-type connections and is a mechanism made for universal enclosure made of metal components with halogen-free thermoplastic insulation of the highest quality. Finally, it is an input compatible with DTT (Digital Terrestrial Television) and has different combinations for the layout of the wire.

BASIC INFORMATION

Series: Simon 75

Version: Single

Format: R-TV+SAT

Type: Intermediate

Connector type: IEC

Number of connectors: 2

Type of terminal connection: Screw

Type of mechanism: Insertion

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Frames Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations, Simon 28, Simon 31, Simon 44 Aqua, Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88

Packaging contents: R/TV+SAT socket and instruction sheet

Remarks: Using IEC 9.5 mm connectors. Ø

TECHNICAL INFORMATION

Cable section admitted: From 6 to 8 mm

Cable stripping necessary: 8 mm

IP rating: 20

Number of contacts: 2

Number of wires: 2

Manufacturing material: Metal components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50083-2:2012 + EN 50581:2012

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 82.000

Wide: 165.000

Depth: 223.000

Box volume: 3017190.000

Box volume measurement unit: MMQ

Net weight of box: 1.130

Unit weight of box: KGM

EAN code: 8421053060391

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No
