R/TV+SAT modular signal socket outlet modular single

REFERENCE NO.: 75466-69

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

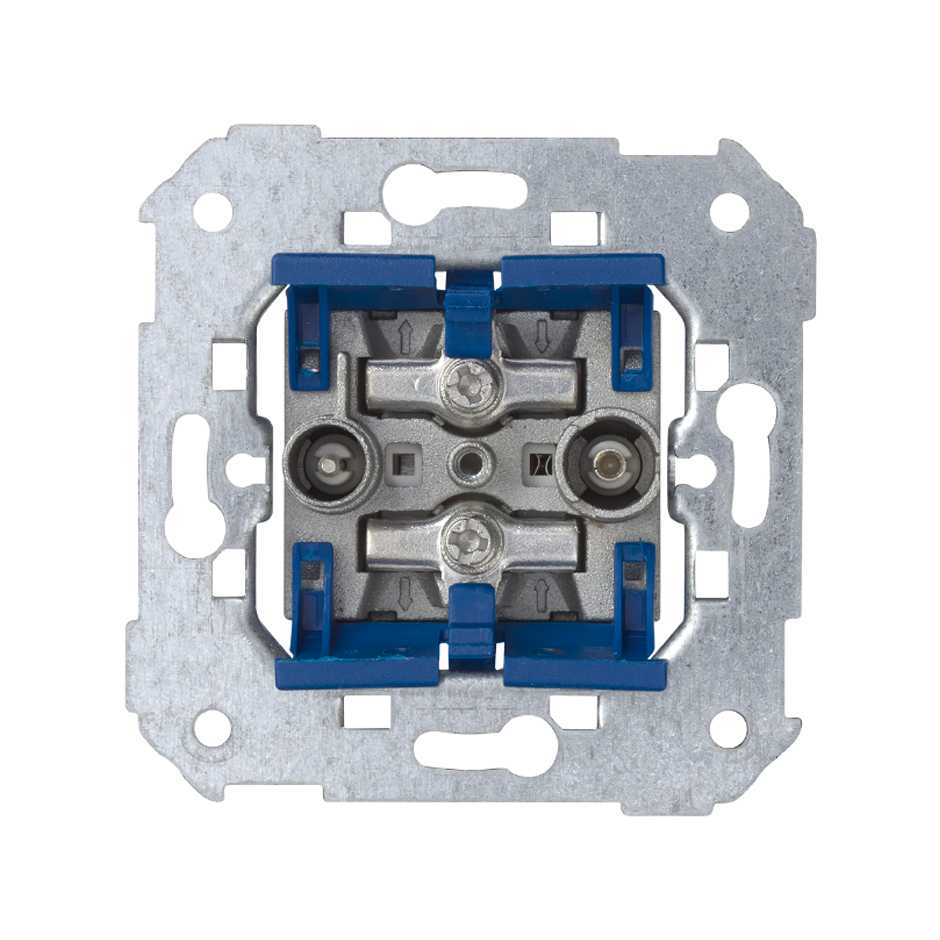

R/TV+SAT modular signal socket outlet modular single front view

This image represents the combination of different references

R/TV+SAT modular signal socket outlet single packaging


SERIES: Simon 75 FORMAT: R/TV+SAT CONNECTOR TYPE: IEC TYPE: Single COMPATIBLE SERIES: Simon 82 Detail Simon 82 Nature Plates

82097-93

82097-30

82097-31

82097-33

82097-34

82097-38

Product description

This single R-TV + SAT modular signal socket, it is part of the Simon 75 series products. The outlet has a capacity of cable section of 6 to 8 millimetres and is based on IEC 9.5 mm Ø connectors. Its clamping is very simple and is carried out by screw, and its operation is also simple and is based on the insertion. The components used by Simon to manufacture its products are of high quality, in this sense, the socket is made of thermoplastic, a resistant and metal materials with halogen-free insulation, which makes the product can withstand temperatures very high or low temperatures of between -25 and 50 degrees centigrade, without losing functionality. In this way, Simon extends the life of its products and increasing the security of the final set. Also, the thermoplastic provides an additional hardness that makes the socket can withstand knocks and other harmful actions external. Maintenance is very simple and is just the use a soft dry cloth without any cleaning product savings.

BASIC INFORMATION

Series: Simon 75

Version: Single

Format: R-TV+SAT

Type: Single

Connector type: IEC

Number of connectors: 2

Type of terminal connection: Screw

Type of mechanism: Insertion

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Frames Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralisations, Simon 28, Simon 31, Simon 44 Aqua, Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88

Packaging contents: R/TV+SAT socket and instruction sheet

Remarks: Using IEC 9.5 mm connectors. Ø

TECHNICAL INFORMATION

Cable section admitted: From 6 to 8 mm

Cable stripping necessary: 8 mm

IP rating: 20

Number of contacts: 1

Number of wires: 1

Manufacturing material: Metal components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50083-2:2012 + EN 50581:2012

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 82.000

Wide: 165.000

Depth: 223.000

Box volume: 3017190000.000

Box volume measurement unit: MMQ

Net weight of box: 1.130

Unit weight of box: KGM

EAN code: 8421053060384

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Unit weight of multiple box: KG

Available on pallet: No
