Ref
75452-60

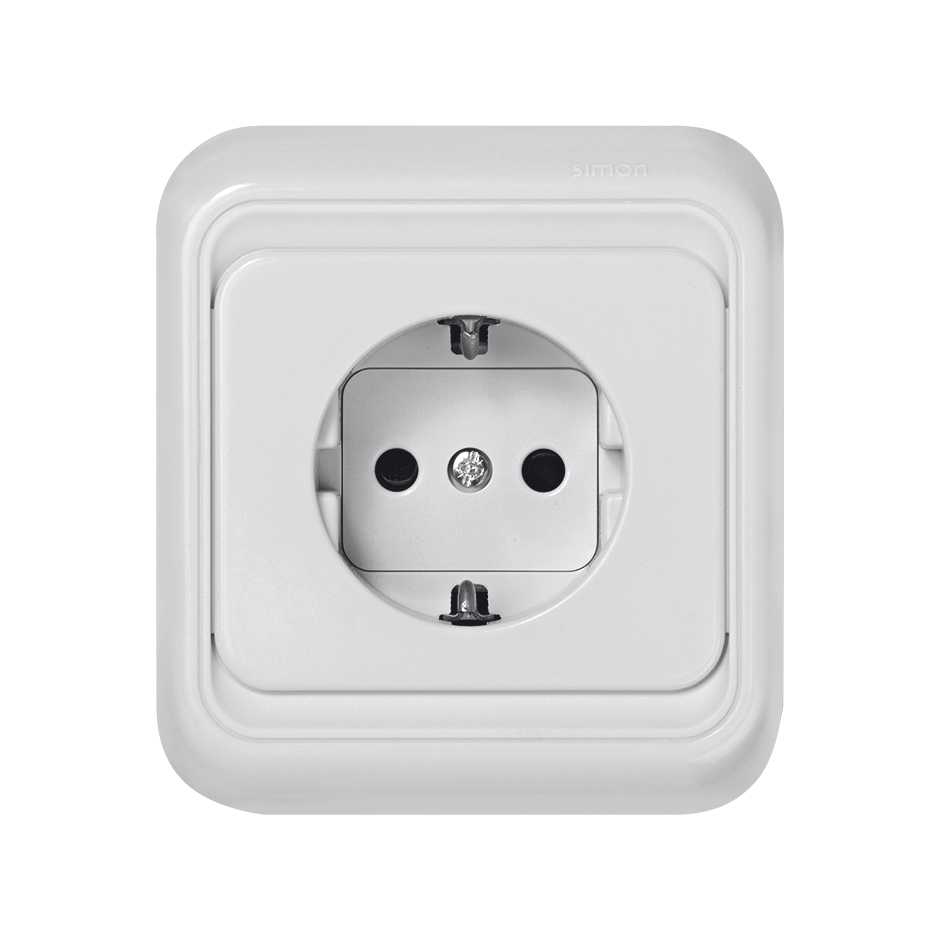

German monoblock socket outlet 16A 250V~ with safety device and screw terminal connection system white Simon 75

Price/Unit
€9.96
While stocks last
Packaging quantity
10 Units

Available downloads

Data sheet

75452-60.pdf

Product declaration
Outstanding Features
Series
Simon 75
Series Compatibility

Simon 75

Simon 82 Concept

Product Information

This two-pole socket-outlet Simon Schuko monobloc belongs to the sockets category and is compatible with the Simon 75 collection, is white in colour and is made of socket of metal components with thermoplastic trims offering halogen-free insulation.

It has a square shape and measures 80 x 80 mm They can be installed both on the surface-mounted and through flush-mounted. It has device is security.

For this product, the operating temperature is 5 to 40º C and the storage temperature is -25 to 50º C.

The process of connecting the electrical conductors to the systems used for this purpose by the various electrical devices is called terminal connection. In this case, the system is screw.

For proper cleaning, it is recommended to use a dry, soft cloth and avoid abrasive products containing chlorine.

Basic information
  • Finish

    White

  • Packaging contents

    Socket outlet with cover and frame

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    German socket outlet

  • Intensity (A)

    16 A

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Power supply (V~)

    250 V~

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    13 mm

  • Installable in flush mount junction box

    Universal

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Screw

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2011/65/UE RoHS + EN 50581:2012 + IEC 60884-1 Ed 3.2

Logistics Information
  • Product volume

    3685500 MMQ

  • Product net weight

    0.125 KGM

  • Product gross weight

    0.125 KGM

  • Packaging quantity

    10

  • Packaging height

    91 MMT

  • Packaging width

    180 MMT

  • Packaging length

    225 MMT

  • Packaging volume

    3685500 MMQ

  • Packaging net weight

    1.25 KGM

  • Packaging gross weight

    1.25 KGM

  • Packaging EAN

    8421053001875
