German socket outlet 16A 250V~ with screw terminal connection system

REFERENCE NO.: 75432-39

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

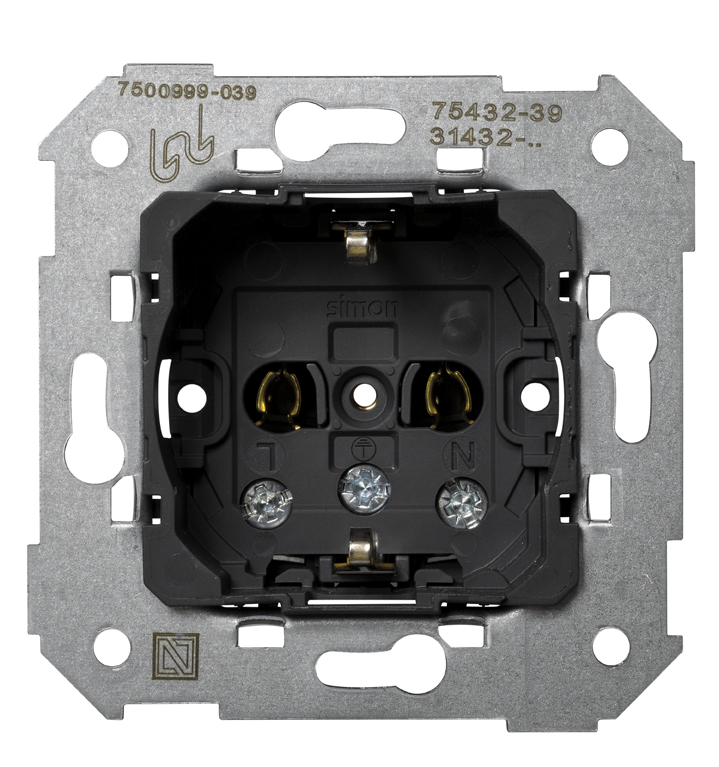

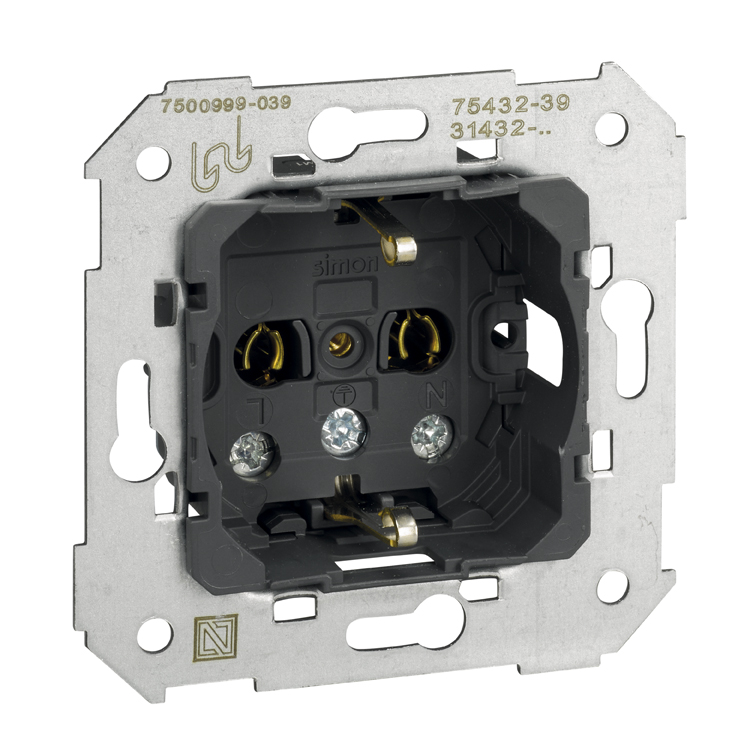

German socket outlet 16A 250V~ front view


This image represents the combination of different references


German socket outlet 16A 250V~ rear view

German socket outlet 16A 250V~ packaging


SERIES: Simon 75 INTENSITY: 16 A FORMAT: German socket outlet TYPE OF TERMINAL CONNECTION: Screw TYPE OF MECHANISM: Insertion Covers

82041-30

82041-31

82041-33

82041-34

82041-37

82041-38

Product description

This Schuko socket outlet is perfect for sockets of up to 16 A and 250 volts. It is part of the Simon 75 series and stands out for its simple screw terminal connection. The product has two ways of installation can be done directly to install it by flush mounting or surface mounting, depending on preferences and requirements The manufacturing materials of this plug are of high quality and consist of metal components with thermoplastic insulation and free of halogens. This extends the service life of the product, as it allows optimum operation under extreme temperatures, ranging from -25 ° and + 50 degrees centigrade. Also, this modern material that gives it the product resistance and hardness by doing so not susceptible to deformations by knocks or scratches. Simon products are designed always to guarantee the security of the user, and in this case there is different, the plug carried covers that have included the child protection function.

BASIC INFORMATION

Indicator function: No

No. of possible elements: 1 element

Claw: Simon 75

Compatibility: Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

Packaging contents: Socket outlet

Remarks: The covers include a child-proof protective feature.

Series: Simon 75

Version: Single

Intensity: 16 A

Voltage: 250 V~

Format: Zócalo Schuko

Monoblock: No

Type of terminal connection: Screw

Type of mechanism: Insertion

TECHNICAL INFORMATION

Cable section admitted: 2.5 mm

Cable stripping necessary: 13 mm

IP rating: 21

Manufacturing material: Metallic components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2011/65/UE RoHS + EN 50581:2012 + IEC 60884-1 Ed 3.2

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 83.000

Wide: 165.000

Depth: 221.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.740

Unit weight of box: KGM

EAN code: 8421053025390

Available in multiple box: Yes

Multiple box packaging quantity: 50

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: ZCM

Height of multiple box: 223.000

Width of multiple box: 172.000

Depth of multiple box: 430.000

Multiple box volume: 16493080.000

Multiple box volume measurement unit: MMQ

Net weight of multiple box: 3.700

Unit weight of multiple box: KGM

Multiple box EAN code: 8421053040355

Available on pallet: Yes
