Set of 2 push-button switches 10A 250V~ (1 input + 2 outputs, suitable) with fast terminal connection

REFERENCE NO.: 75399-39

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

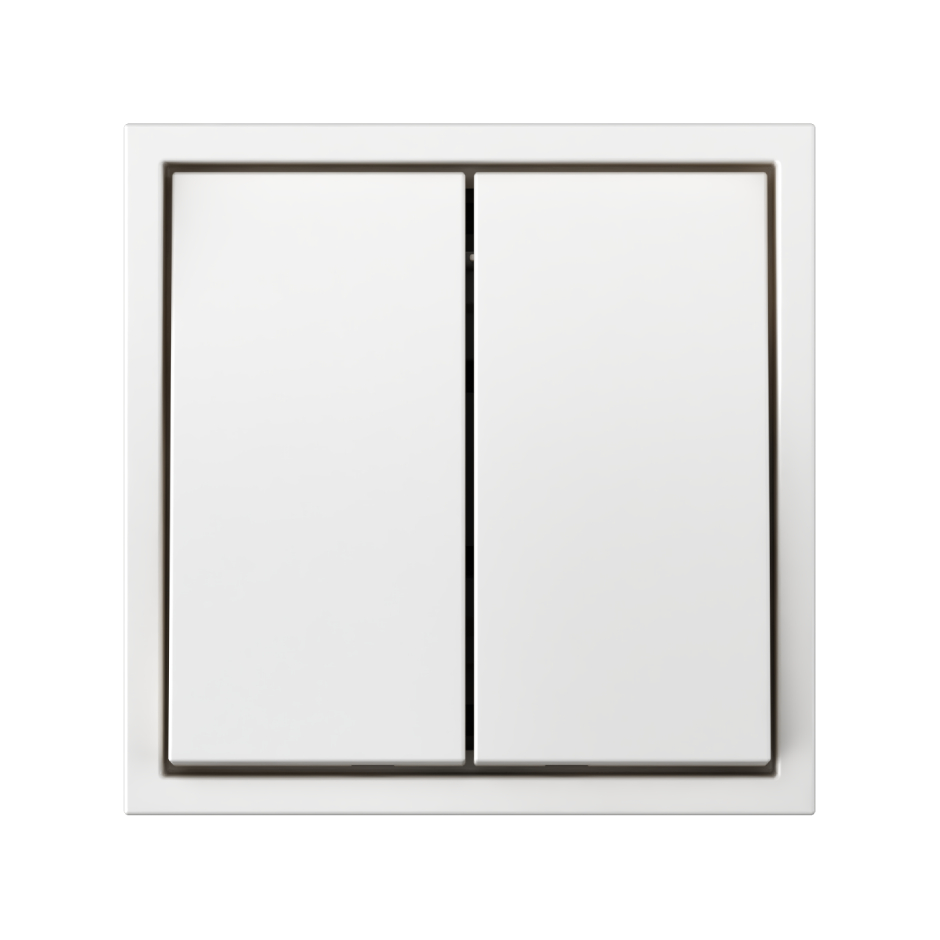

Set 2 push-button switches 10A 250V~ front view


This image represents the combination of different references


Set 2 push-button switches 10A 250V~ rear view

Set 2 push-button switches 10A 250V~ packaging


SERIES: Simon 75 INTENSITY: 10 А TYPE OF TERMINAL CONNECTION: Fast TYPE OF MECHANISM: Pivoting Rockers

82026-30

82026-31

82026-33

82026-34

82026-38

82026-93

Product description

Group of two push buttons with an intensity of 10 A and a power of 250 V~ (one input + two outputs), also includes a system of fast-terminals connection. You can find it in the Simon 75 product range and in the ""control mechanisms"" category, fast-terminal connection and rocker-type function. The mechanism of two push-buttons contains an input and two outputs, it is fully recommended for use in home automation when automating the elements of the house for operation by remote control or remote control. To make automatic tasks in the home. The installation is suitable for surface mounting or flush mounting and maintenance is just as easy as its installation, a soft cloth is enough to clean the finish without wetting it in liquid for cleaning.

BASIC INFORMATION

Indicator function: No

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

Packaging contents: Mechanism

Remarks: Mechanism with one input and two outputs.

Series: Simon 75

Version: Double

Intensity: 10 А

Voltage: 250 V~

Type of terminal connection: Fast

Type of mechanism: Pivoting

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Cable stripping necessary: 11 mm

IP rating: 21

Manufacturing material: Metallic components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 83.000

Wide: 165.000

Depth: 221.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.620

Unit weight of box: KGM

EAN code: 8421053029374

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No
