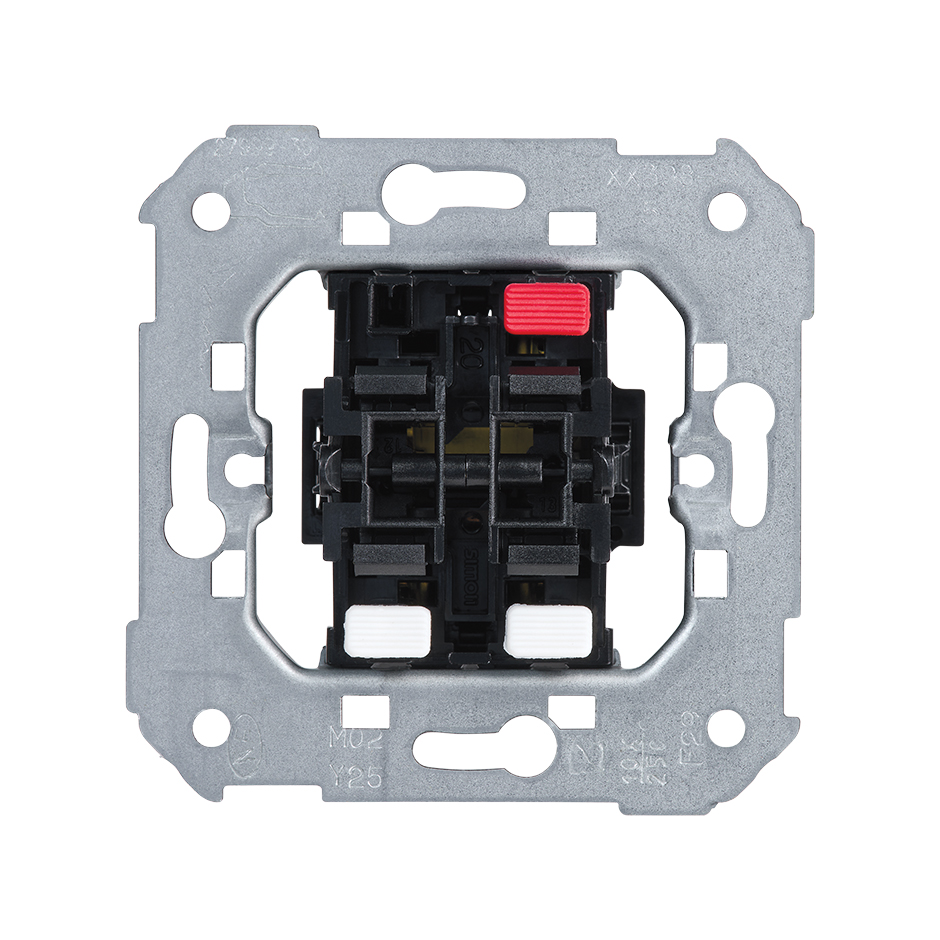

Set of 2 switches 10AX 250V~ with fast terminal connection system

REFERENCE NO.: 75398-39
R.P.: Price on request
PACKAGING: 10Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Indicator function:  No
No. of possible elements:  1 element
Claw:  Simon 27
Compatibility:  Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames
Packaging contents:  Mechanism
Series:  Simon 75
Version:  Double
Intensity:  10 AX
Voltage:  250 V~
Type of terminal connection:  Fast
Type of mechanism:  Pivoting

TECHNICAL INFORMATION

Cable section admitted:  From 1.5 to 2.5 mm
Cable stripping necessary:  11 mm
IP rating:  21
Manufacturing material:  Metallic components with halogen-free thermoplastic insulation
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Installable in flush mount junction box:  Universal
Operating temperature range:  5 to 40 ºC
Storage temperature range:  -25 to 50 ºC

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  10
Box measurement unit:  MM
Height:  221.000
Wide:  83.000
Depth:  165.000
Box volume:  3026595.000
Box volume measurement unit:  MMQ
Net weight of box:  0.620
Unit weight of box:  KGM
EAN code:  8421053003992
Available in multiple box:  Yes
Multiple box packaging quantity:  50
Multiple box measurement unit:  MM
Multiple box packaging quantity measurement unit:  ZCM
Height of multiple box:  223.000
Width of multiple box:  172.000
Depth of multiple box:  430.000
Multiple box volume:  16493080.000
Multiple box volume measurement unit:  MMQ
Net weight of multiple box:  3.100
Unit weight of multiple box:  KGM
Multiple box EAN code:  8421053040348
Available on pallet:  No

GALLERY


Set 2 switches application in corridor


Set 2 switches application in living room


Set 2 switches 10AX 250V~ front view


This image represents the combination of different references
