Set of 2 push-button switches 10A 250V~ (2 inputs + 2 outputs), suitable for motorised blinds without latching system with fast terminal connection

Set of 2 push-button switches 10A 250V~ (2 inputs + 2 outputs), suitable for motorised blinds without latching system with fast terminal connection

REFERENCE NO.: 75396-39

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

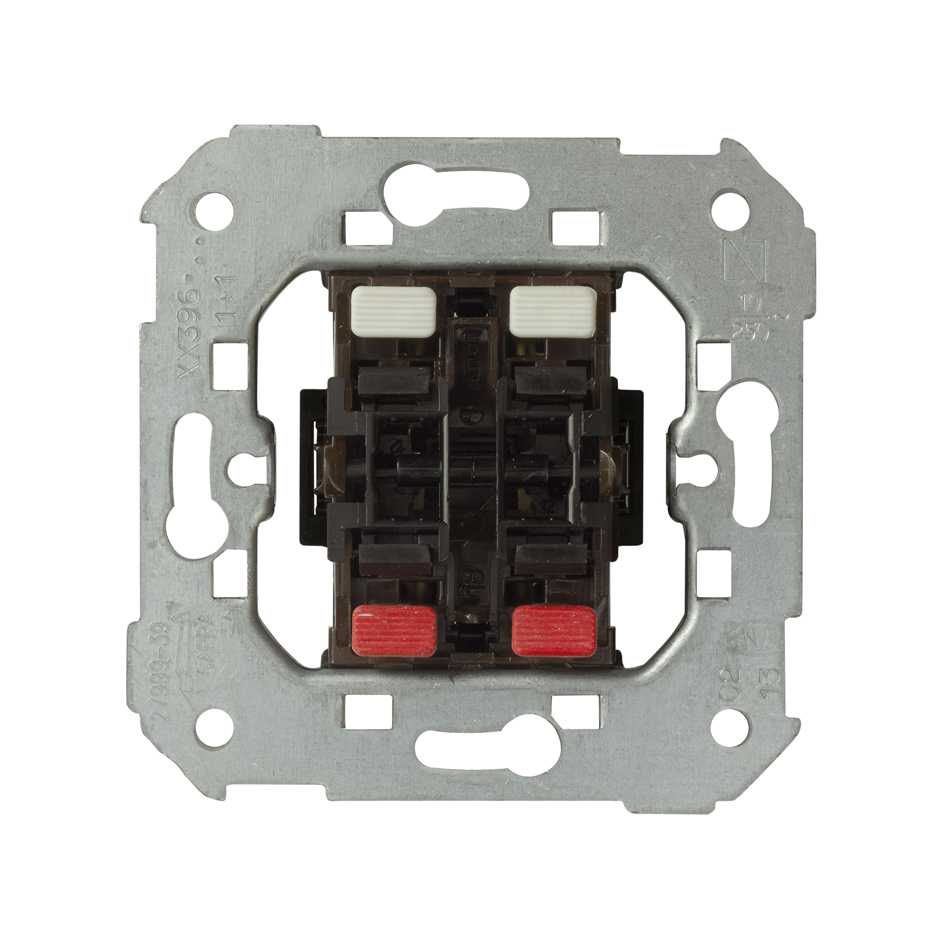

Set 2 push-button switches 10A 250V~ front view


This image represents the combination of different references

75396-39-pulsador-doble-10A-250V-apto-persianas-sin-enclavamiento-embornamiento-rapido-trasera_2.jpg

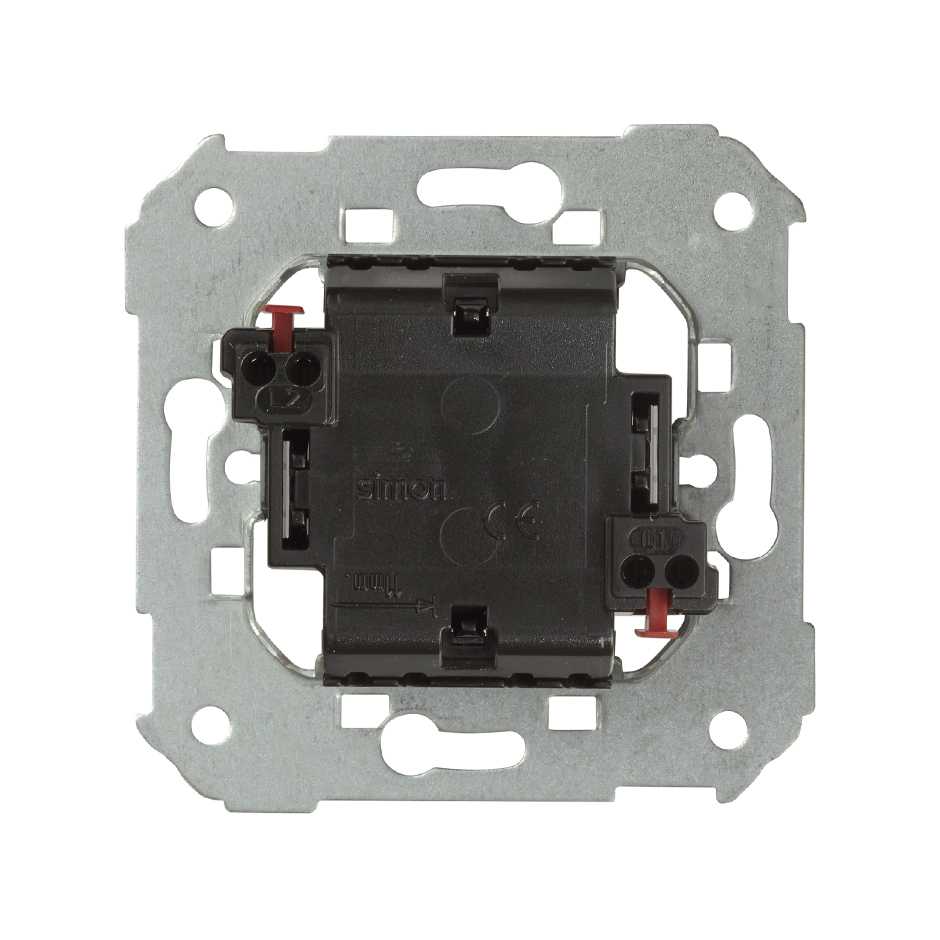

Set 2 push-button switches 10A 250V~ rear view

Set 2 push-button switches 10A 250V~ packaging

75396-39-pulsador-doble-10A-250V-apto-persianas-sin-enclavamiento-embornamiento-rapido-frontal_2.jpg

SERIES: Simon 75 INTENSITY: 10 А TYPE OF TERMINAL CONNECTION: Fast TYPE OF MECHANISM: Pivoting COMPATIBLE SERIES: Simon 82 Concept Simon 82 Detail Simon 82 Nature Simon 82 Simon 75 Simon 88 Rockers

82026-30

82026-31

82026-33

82026-34

82026-38

82026-93

Product description

The Simon 75 series is a precise answer to the new market demands. With this in mind, the Group has created of two push buttons with 10 A current and 250V~ voltage, which includes two inputs and two outputs, it is suitable for roller shutter mechanisms without latching system with fast-terminals connection. This is a valid mechanism for the products included in the Simon 75,82 and 88 series. For its installation, it is necessary to use a universal box recessed, or in its absence a baseboard surface-mounted and requires a control device. Designed to withstand extreme ambience conditions thanks to the metal components with halogen-free thermoplastic insulation with which it has been manufactured. Its technical features are complemented by a wire cross section of 1.5 to 2.5 mm and stripping of 11 mm wire of maximum quality at the best price.

BASIC INFORMATION

Indicator function: No

No. of possible elements: 1 element

Compatibility: Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

Packaging contents: Mechanism

Remarks: Mechanism with no latching. Requires control device.

Series: Simon 75

Version: Double

Intensity: 10 А

Voltage: 250 V~

Type of terminal connection: Fast

Type of mechanism: Pivoting

Type of latching: Non-latching

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Cable stripping necessary: 11 mm

IP rating: 21

Manufacturing material: Metallic components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 83.000

Wide: 165.000

Depth: 221.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.630

Unit weight of box: KGM

EAN code: 8421053017555

Available in multiple box: No

Available on pallet: No

75396-39-pulsador-doble-10A-250V-apto-persianas-sin-enclavamiento-embornamiento-rapido-frontal_3.jpg

Set 2 push-button switches 10A 250V~ front view


This image represents the combination of different references

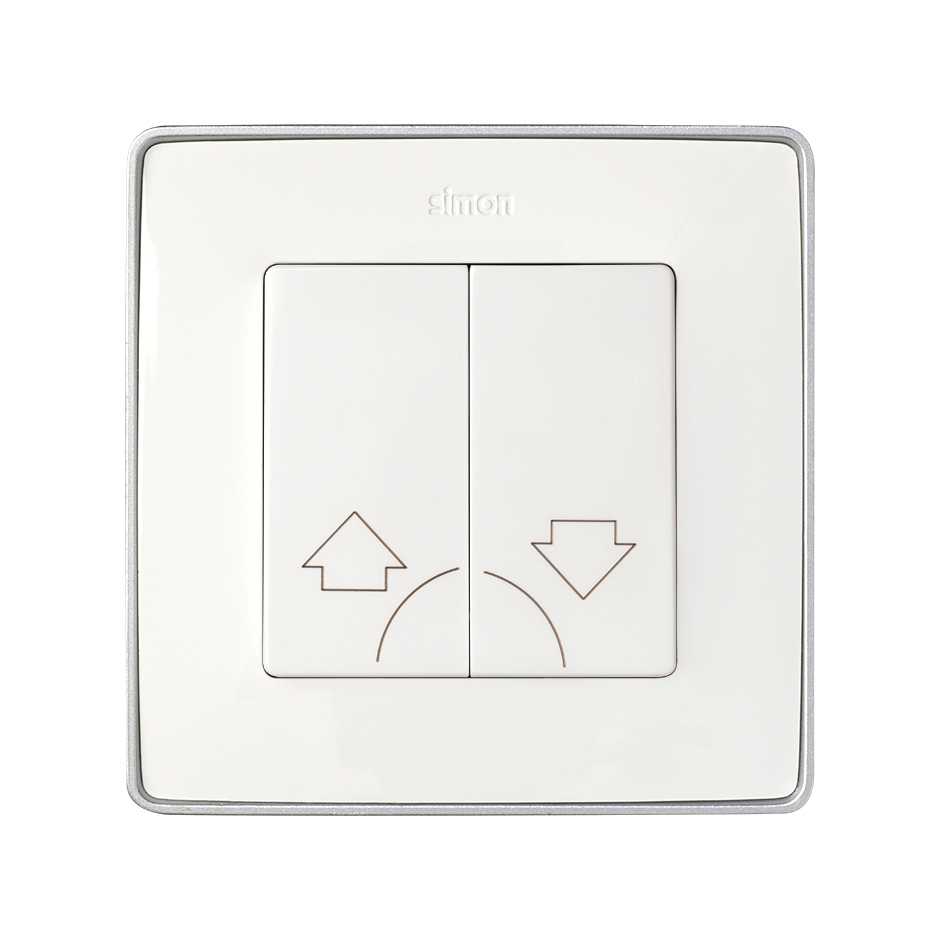

Blind push button with rockers and frame Simon 82 Detail Select white aluminium base R.P.: Price on request
