Set of 2 2-way switches 10AX 250V~ with built-in light and fast terminal connection system

Set of 2 2-way switches 10AX 250V~ with built-in light and fast terminal connection system

REFERENCE NO.: 75394-39

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

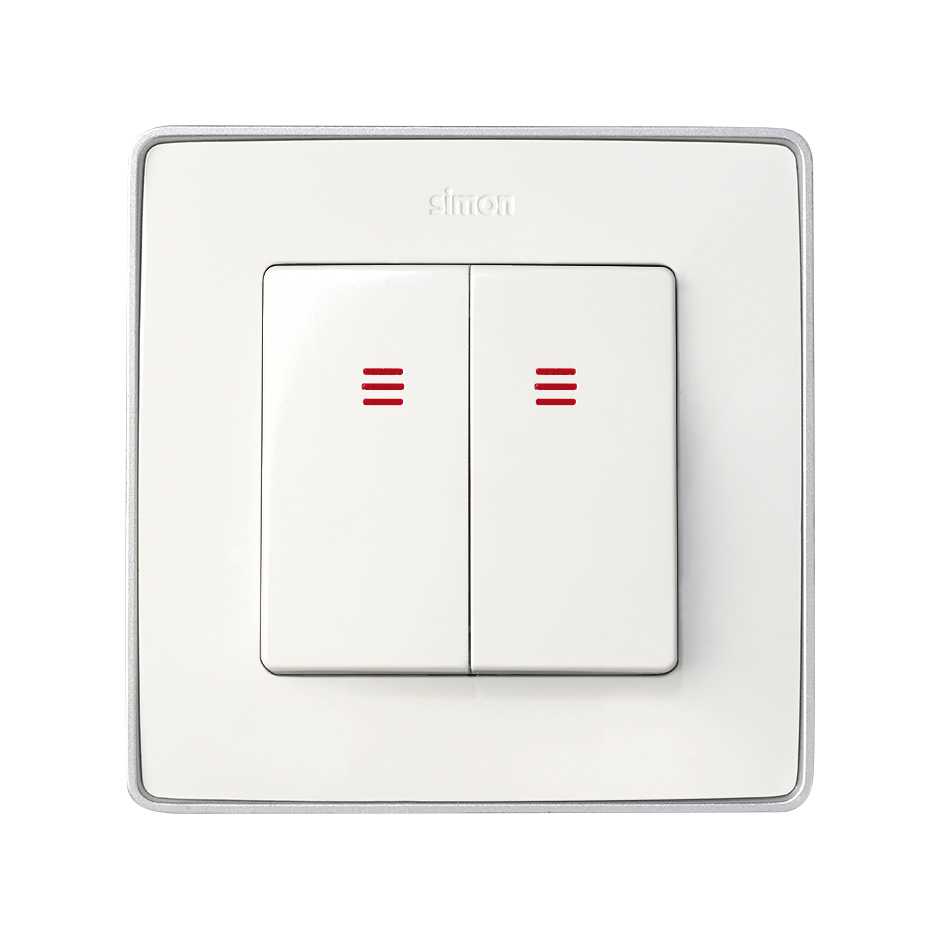

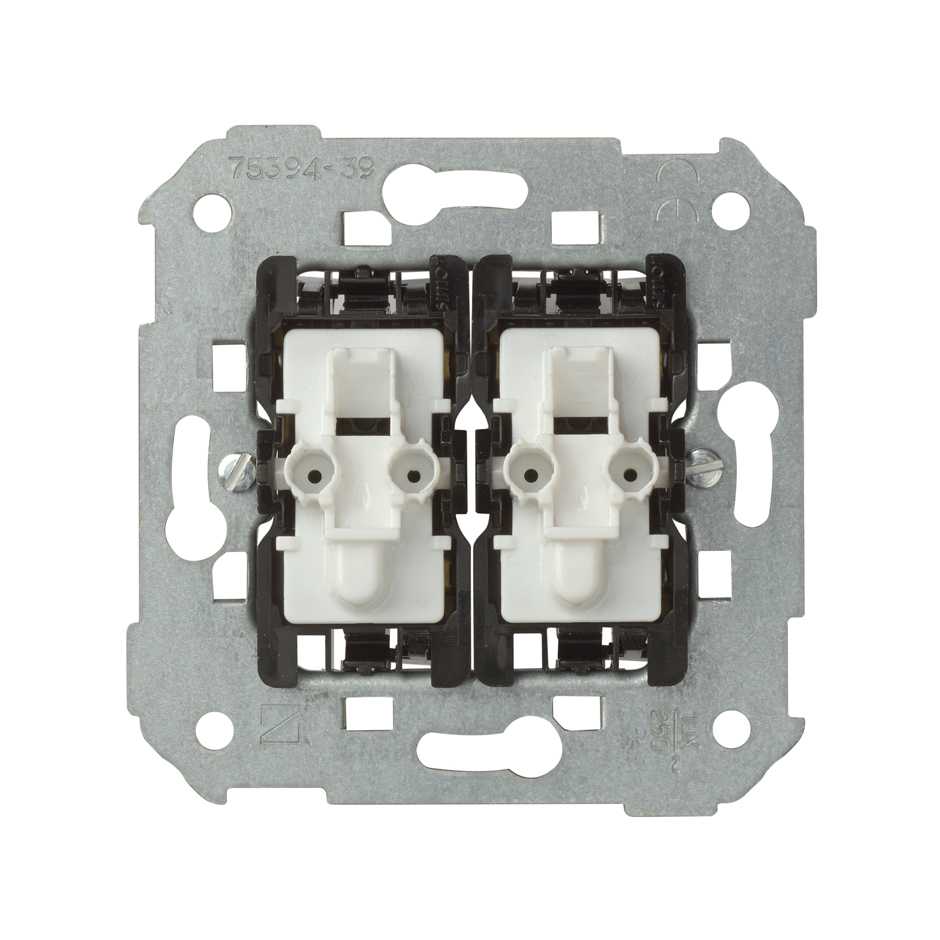

Set 2 2-way switches 10AX 250V~ front view


This image represents the combination of different references

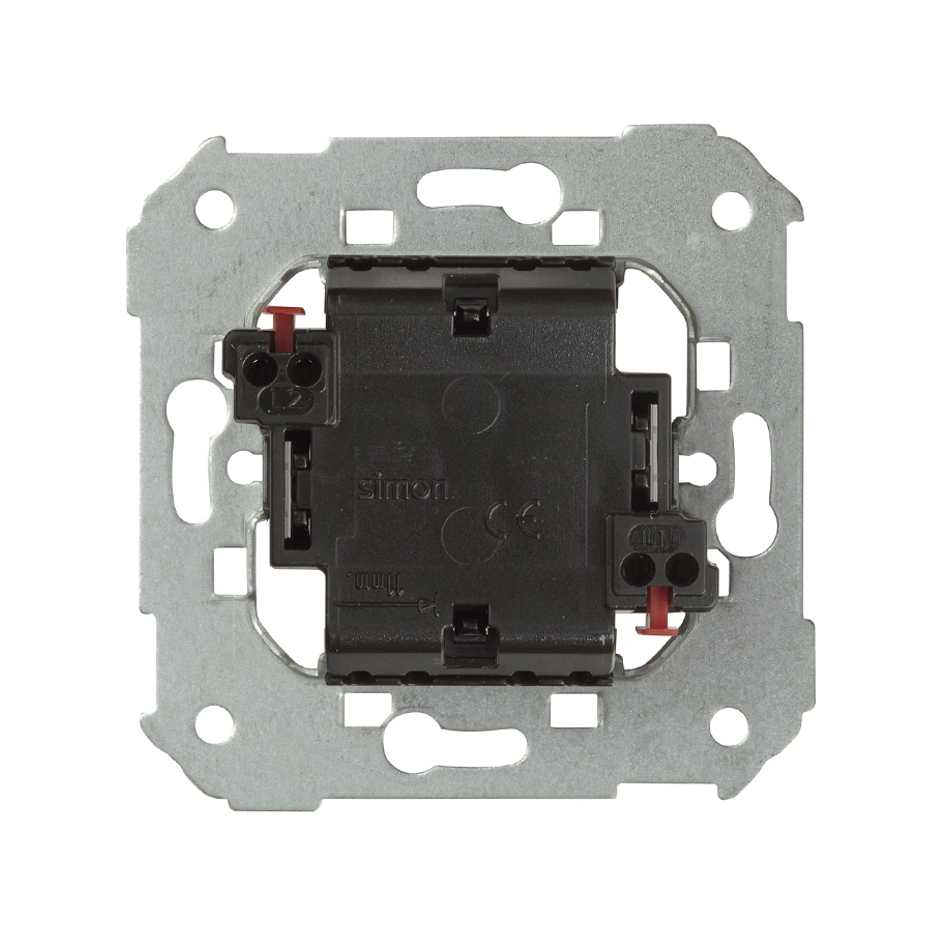

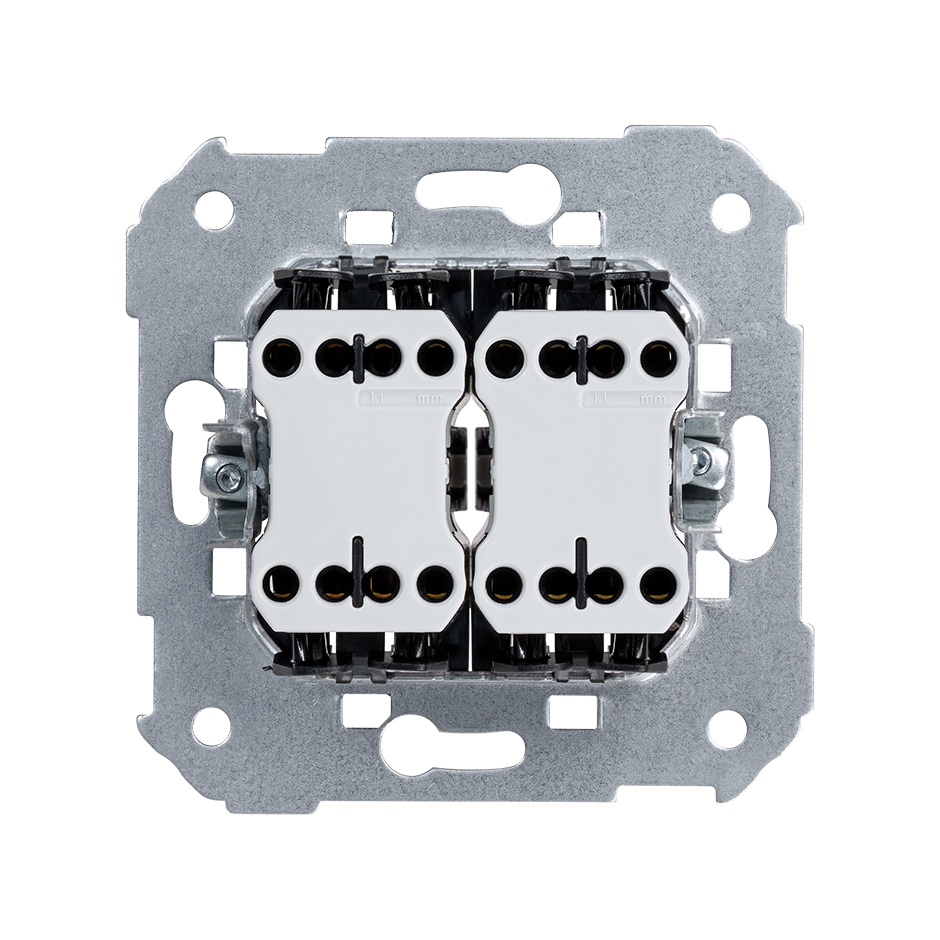

Set 2 2-way switches 10AX 250V~ rear view

Set 2 2-way switches 10AX 250V~ packaging


SERIES: Simon 75 INTENSITY: 10 AX TYPE OF TERMINAL CONNECTION: Fast TYPE OF MECHANISM: Pivoting COMPATIBLE SERIES: Simon 82 Concept Simon 82 Detail Simon 82 Nature Simon 82 Simon 75 Rockers

82025-30

82025-31

82025-33

82025-34

82025-38

82025-93

Product description

This group of 2 2-way switches 10 AX 250V~ with incorporated luminous light also has a fast-terminal connection system, which makes installation much easier. The mechanism is suitable for surface and flush mounting and is integrated in the Simon 75 series, it contains metal parts with halogen-free thermoplastic insulation, a safe and resistant material that provides maximum protection in the home, it is a product that complies with current regulations and can be installed in all kinds of environments, thanks to its resistance to extreme temperatures, the Simon 75 collection is made up of a wide range of mechanisms in various finishes suitable for any decorative space. Their parts allow multiple combinations and have practical electronic functions, the Simon 75 series is compatible with the Simon 77 mechanisms, a collection that makes it possible to connect the cables to each other without stripping, braiding or using complex tools.

BASIC INFORMATION

Indicator function: Yes

Consumption indicator: 1 mA

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 75, Simon 82 Detail, Simon 82 Nature and Simon 82 frames

Packaging contents: Mechanism

Series: Simon 75

Version: Double

Intensity: 10 AX

Voltage: 250 V~

Type of terminal connection: Fast

Type of mechanism: Pivoting

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Cable stripping necessary: 15 mm

IP rating: 20

Manufacturing material: Metallic components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 82.000

Wide: 165.000

Depth: 223.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.730

Unit weight of box: KGM

EAN code: 8421053036624

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No

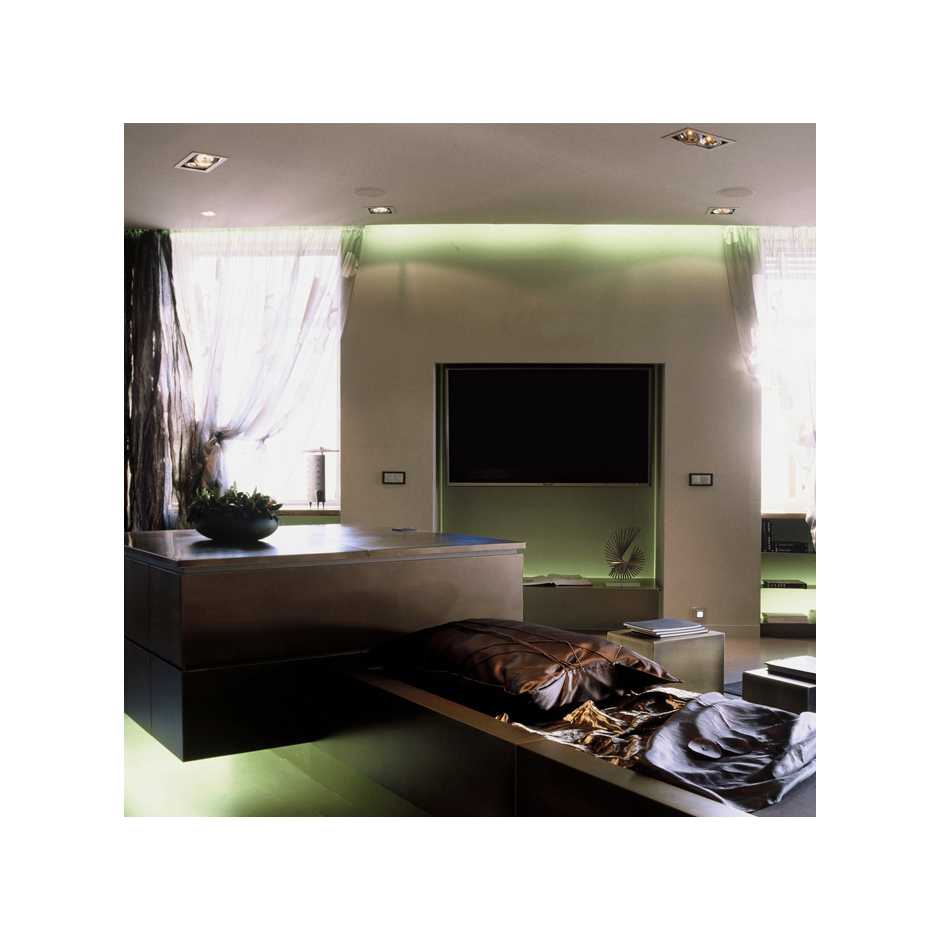

Set 2 2-way switches application in living room

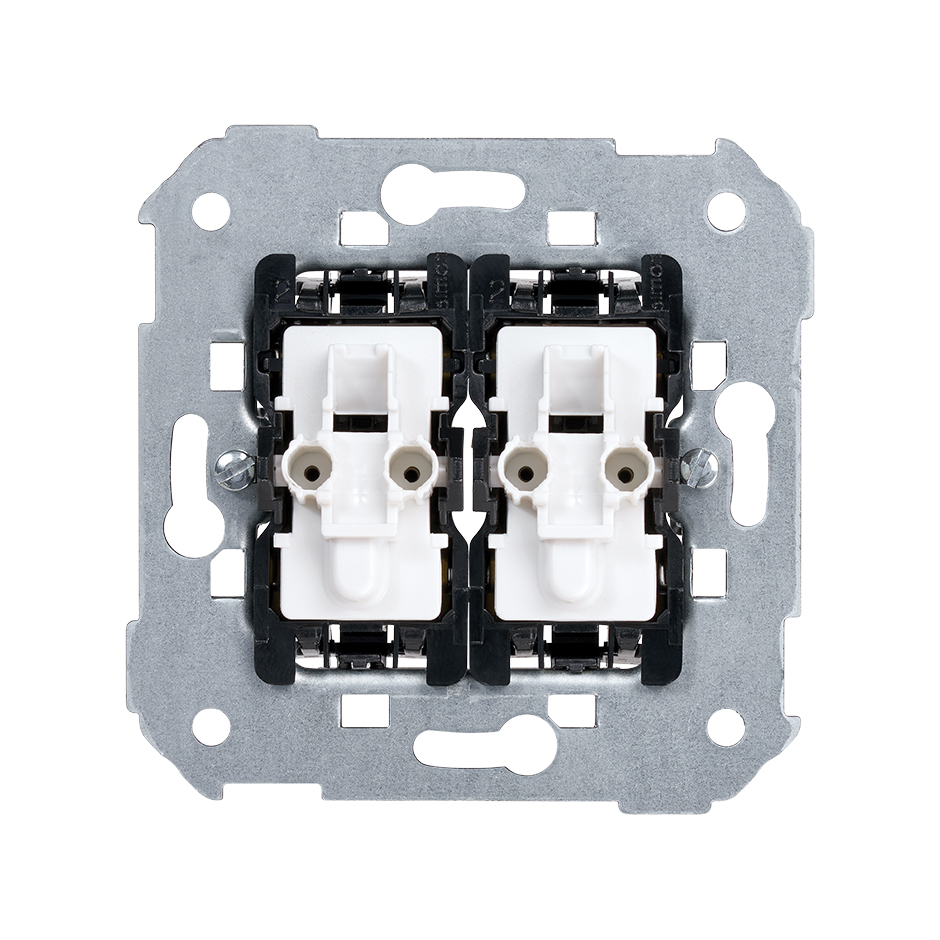

Set 2 2-way switches 10AX 250V~ front view
