Set of 2 push-button switches 10A 250V~ with built-in light and fast terminal connection system

REFERENCE NO.: 75393-39

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

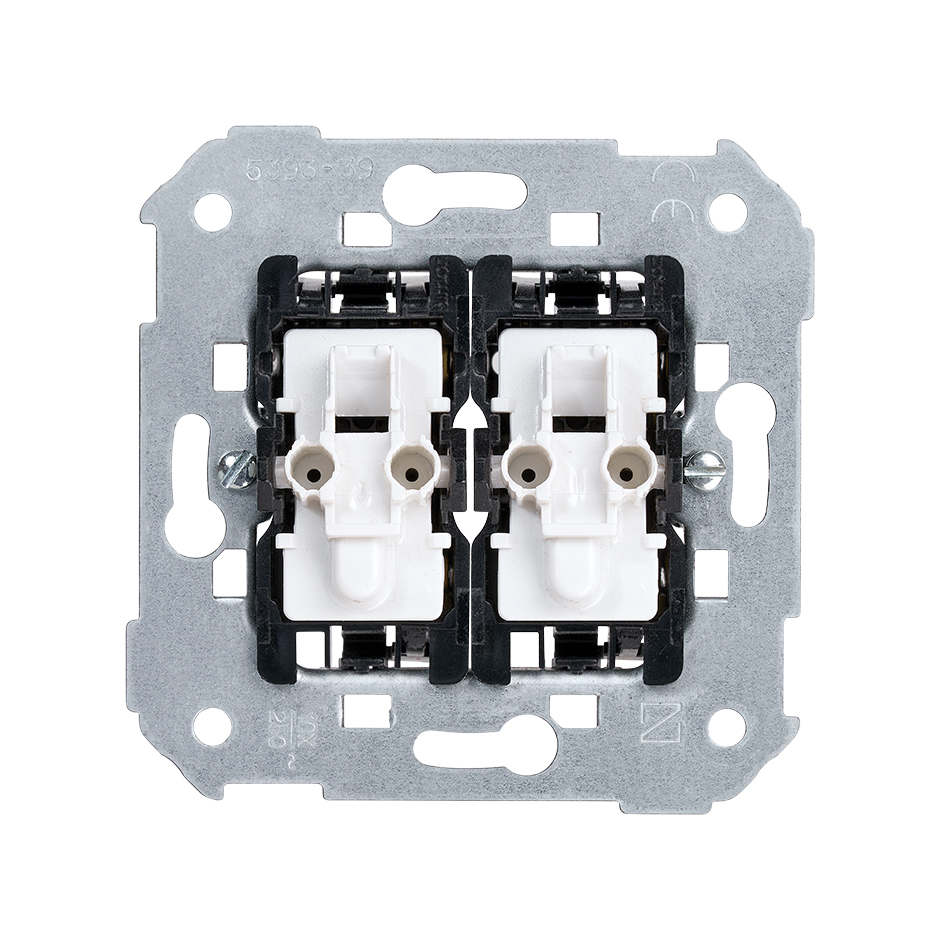

Set 2 push-button switches 10A 250V~ front view


This image represents the combination of different references

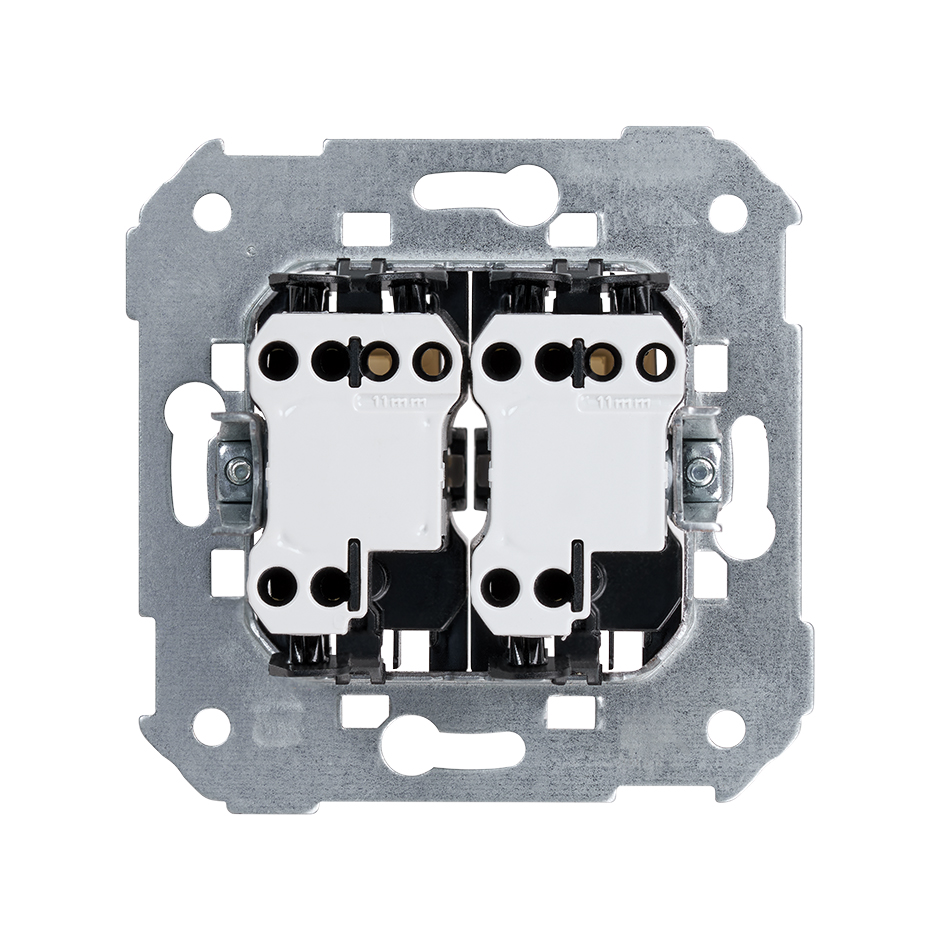

Set 2 push-button switches 10A 250V~ rear view

Set 2 push-button switches 10A 250V~ packaging

SERIES: Simon 75 INTENSITY: 10 А TYPE OF TERMINAL CONNECTION: Fast TYPE OF MECHANISM: Pivoting Rockers

82025-30

82025-31

82025-33

82025-34

82025-38

82025-93

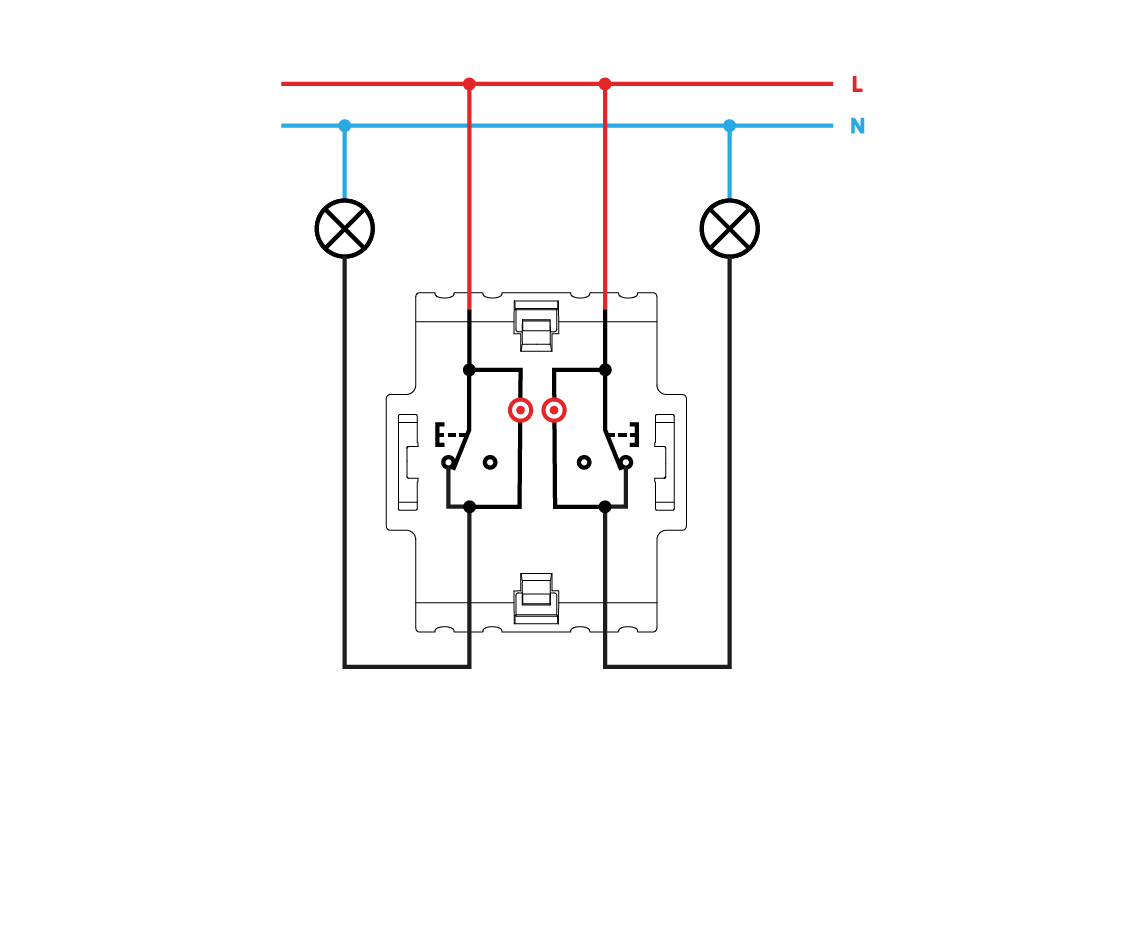

Product description

Within the mechanisms of the Simon 75 series, we find the group of two push buttons with built-in indicator light. The system consists of a single element in its double format. Its reference is 75393-39. It has a current of 10A and voltage of 250V~ Suitable for installation in any universal recessed box or on the surface-mounted. With a quick terminal connection system and rocker operation. The wire section admitted is between 1.5 and 2.5 mm and the stripping of wire required is 15 mm. It is manufactured in various metal components with a halogen-free, thermoplastic insulation.

BASIC INFORMATION

Indicator function: Yes

Consumption indicator: 1 mA

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 75, Simon 82 Detail, Simon 82 Nature and Simon 82 frames

Packaging contents: Mechanism

Series: Simon 75

Version: Double

Intensity: 10 А

Voltage: 250 V~

Type of terminal connection: Fast

Type of mechanism: Pivoting

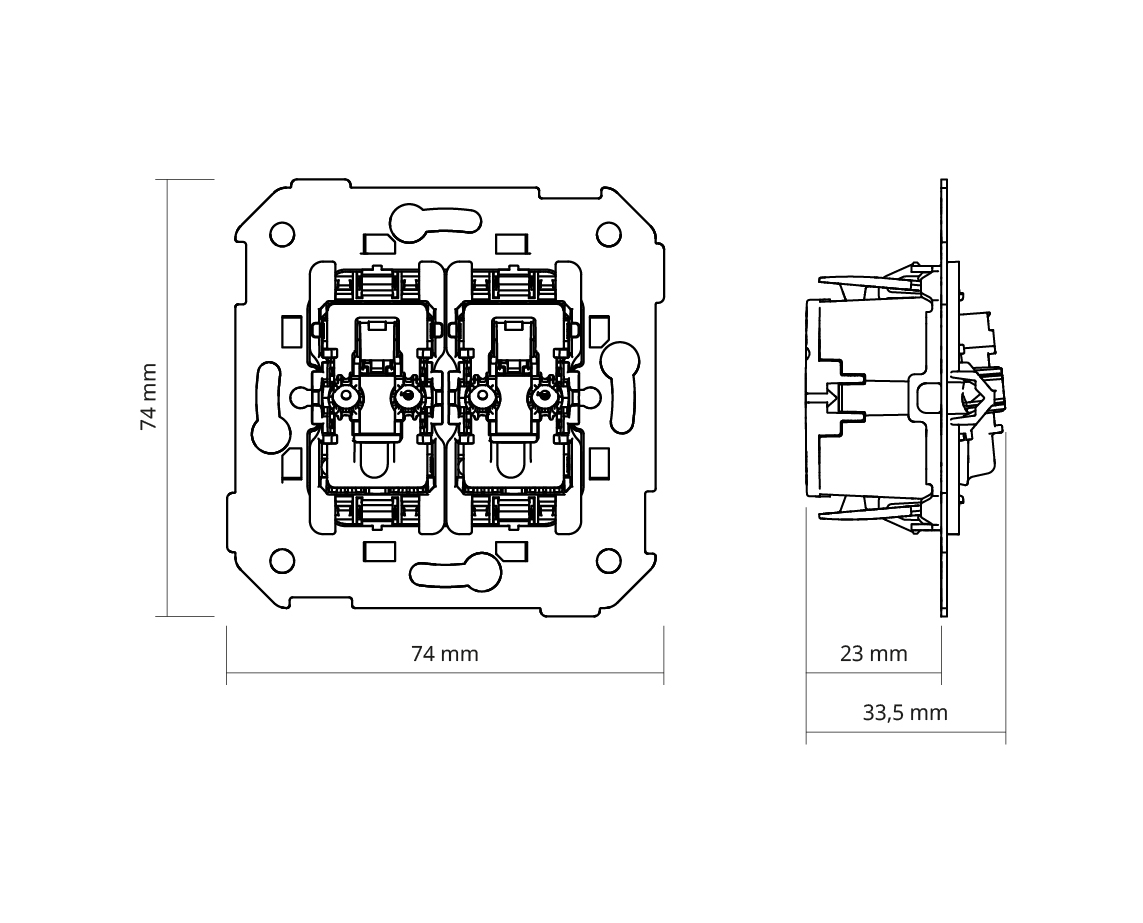

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Cable stripping necessary: 15 mm

IP rating: 20

Manufacturing material: Metallic components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 82.000

Wide: 165.000

Depth: 223.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.730

Unit weight of box: KGM

EAN code: 8421053036617

Available in multiple box: No

Available on pallet: No


Set 2 push-button switches application in living room


Set 2 push-button switches 10A 250V~ front view


This image represents the combination of different references
