Set of 2 push-button switches for blinds 10A 250V~ with latching system

REFERENCE NO.: 75331-39

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

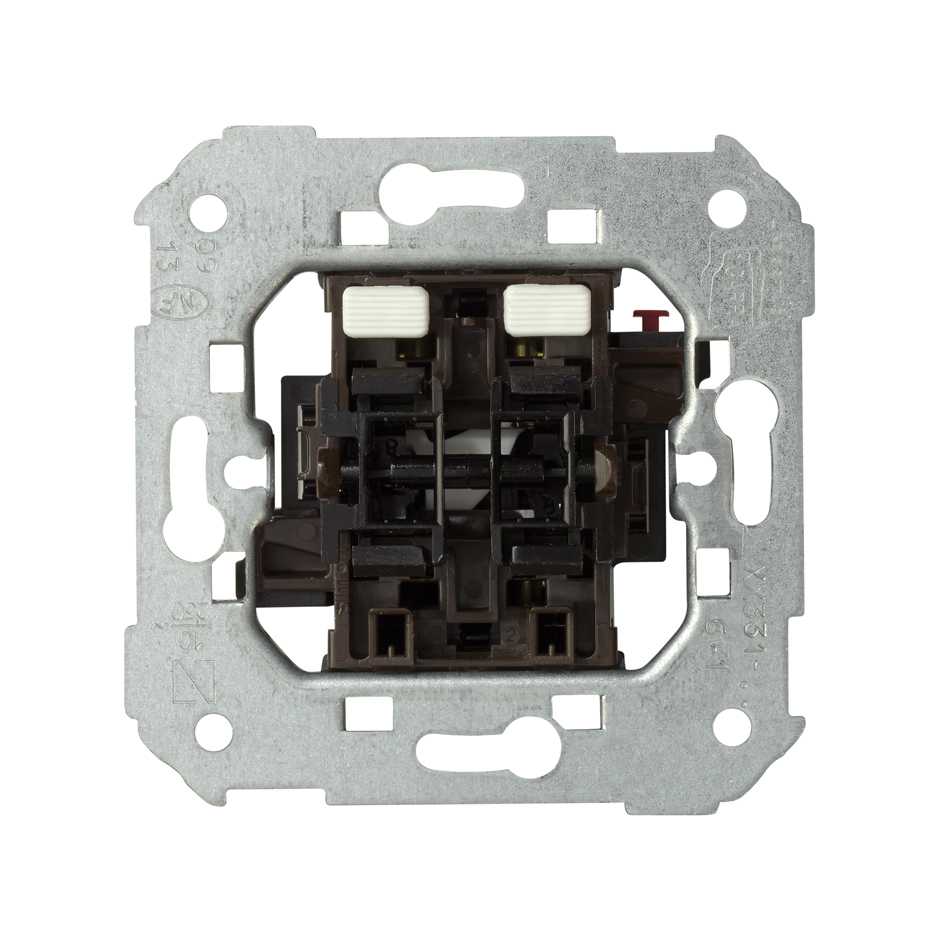

Set 2 push-button switches for blinds 10A 250V~ front view


This image represents the combination of different references

75396-39-pulsador-doble-10A-250V-apto-persianas-sin-enclavamiento-embornamiento-rapido-trasera_2.jpg

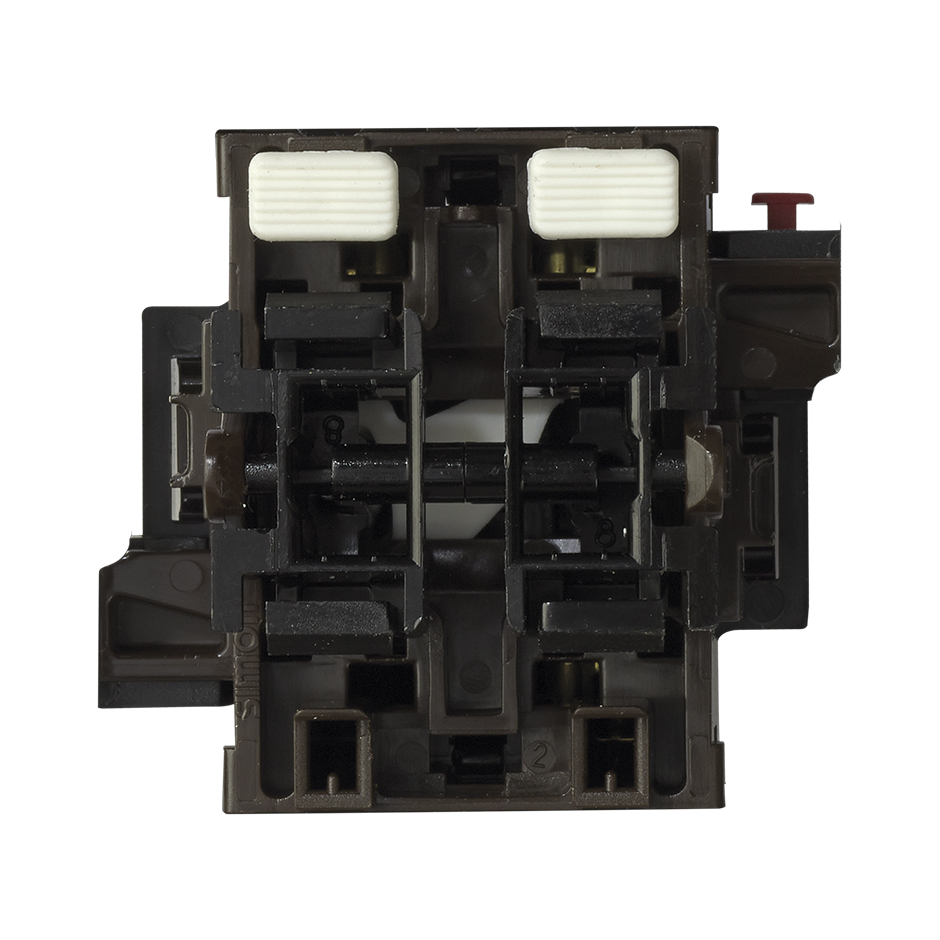

Set 2 push-button switches for blinds 10A 250V~ rear view

Set 2 push-button switches for blinds 10A 250V~ packaging


SERIES: Simon 75 INTENSITY: 10 A TYPE OF TERMINAL CONNECTION: Fast TYPE OF MECHANISM: Pivoting COMPATIBLE SERIE: Simon 88 Rockers

82028-30

82028-31

82028-33

82028-34

82028-38

82028-93

Product description

With the group of 2 push buttons for blinds control of the Simon 75 collection you will get the finishes most according to the space thanks to its wide range of combination of colours, when connected to the functionalities and the technological innovation feature of Simon. Made of metal materials with halogen-free thermoplastic isolated, provides security to the room in case of fire, and can reach maximum temperatures of -25 to 50 ºC. With cable section cross-section of 1.5 to 2.5 mm and stripping of 11 mm, the group of 2 push buttons Simon 75 is suitable for recessed or surface-mounted, extending the possibilities aesthetic and functional space particular. It is also compatible with a power of 250 Volt voltage and 10 Ampere current with amplitude modular (10: 00 AM) and can be combined with the mechanisms of the Simon 77 range for a quick installation and comfortable. Simon 75 has equipped to this group of 2 push buttons latching of security that prevents the simultaneous actuation

BASIC INFORMATION

Indicator function: No

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 28, Simon 44 Aqua, Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

Packaging contents: Mechanism

Remarks: Mechanism fitted with security latching to prevent simultaneous operation.

Series: Simon 75

Version: Double

Intensity: 10 А

Voltage: 250 V~

Type of terminal connection: Fast

Type of mechanism: Pivoting

Type of latching: Mechanical

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Cable stripping necessary: 11 mm

IP rating: 20

Manufacturing material: Metal components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 82.000

Wide: 165.000

Depth: 223.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.680

Unit weight of box: KGM

EAN code: 8421053003961

Available in multiple box: No

Available on pallet: No


Set 2 push-button switches for blinds application in corridor

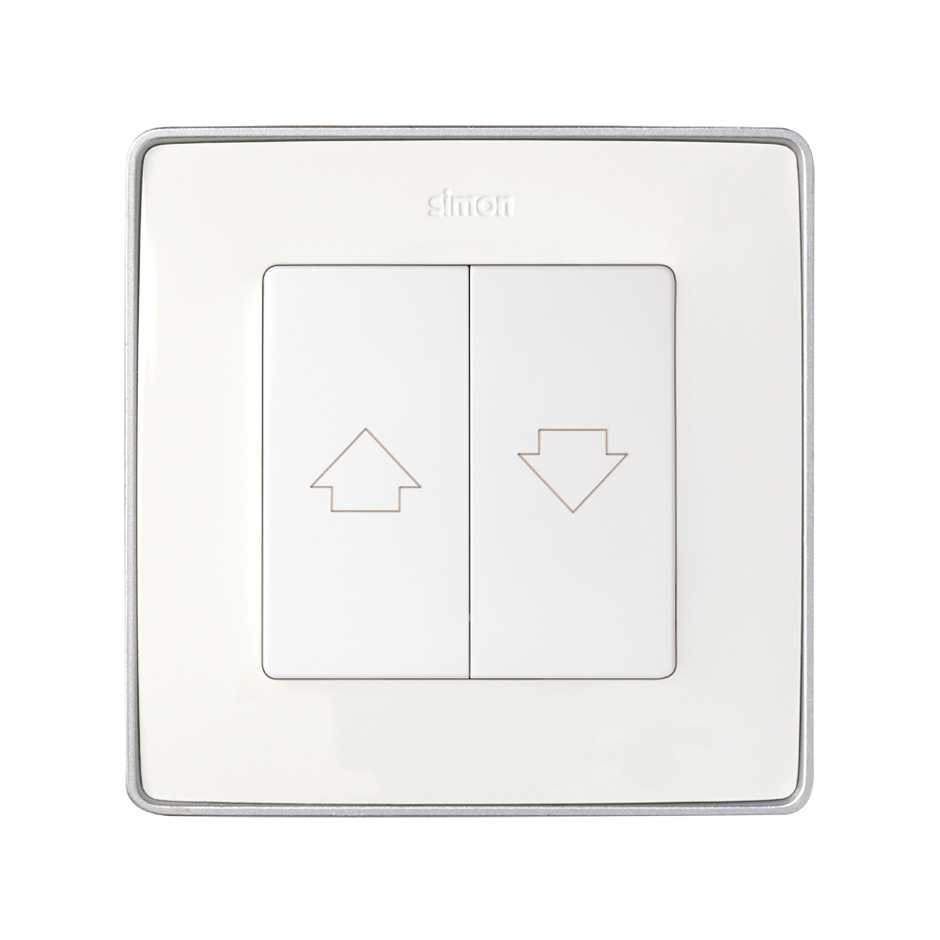

Set 2 push-button switches for blinds 10A 250V~ front view
