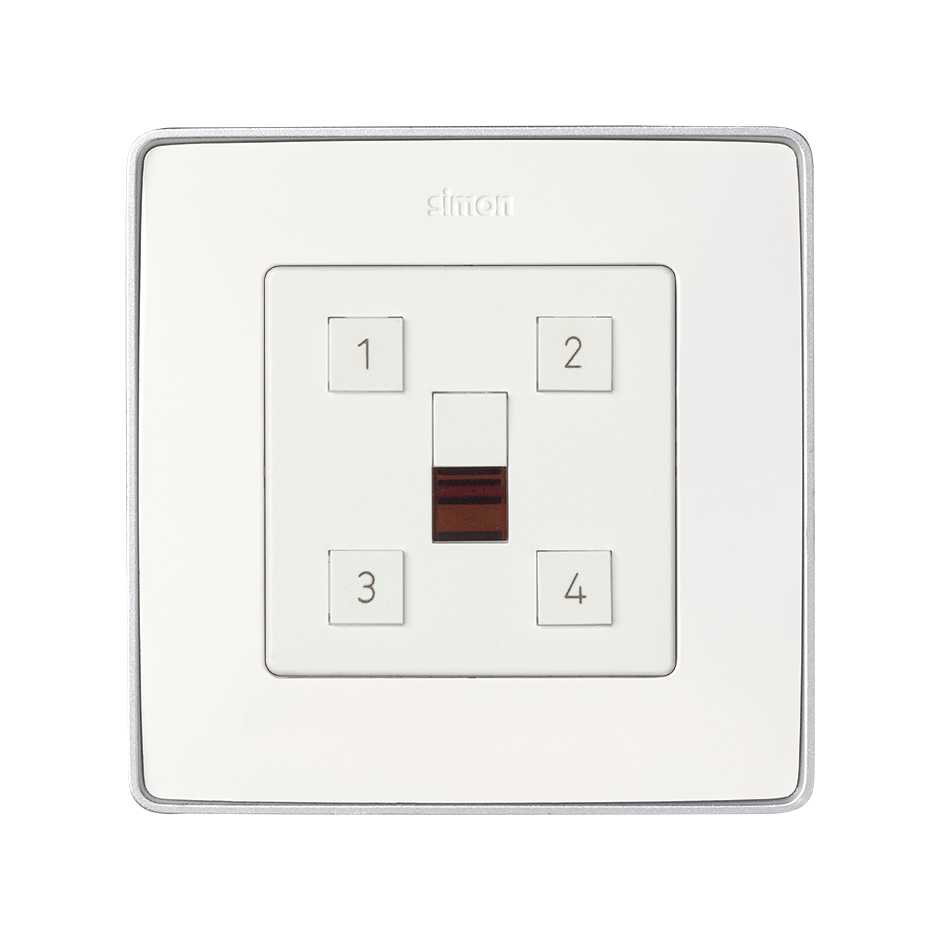

This image represents the combined solution of different references

This image represents the combined solution of different references

This image represents the combined solution of different references


Mechanism for creating 4 different lighting scenes

Packaging quantity
1 Unit

Available downloads

Data sheet


Product declaration
Outstanding Features
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

Product Information

To each space a different lighting, thanks to the Simon 82 mechanism for creation of 4 different lighting scenarios, with switch of control of infrared. With screw terminal connection and suitable for installation, recessed or surface-mounted, it fits perfectly into any type of space, also, thanks to its simple design with minimalist lines and combination of colours and textures. Supports, in addition, a cable section of 1.5 to 2.5 mm with a stripped 10 mm It is compatible with a power of 230 Volts, 50 Hz and electromagnetic transformers 500 VA. Consists of a total of 10 wires and 4 circuits to ensure a perfect adjustment of light intensity to adapt to each room. Composed of electrical materials isolated with halogen-free thermoplastic, it protects the room in case of fire, supporting a temperature range of installation from 0 to 40 ° C and a maximum 70 ºC.

Basic information
  • Compatibility

    Simon 75, Simon 82 Detail, Simon 82 Nature and Simon 82 frames

  • Compatible with LED lamps (W)


  • Remarks

    Does not need programming.

  • Packaging contents

    Scene creator and instruction sheet

Technical Information
  • Market available


  • Number of contacts


  • Number of controllable circuits


  • Number of wires


  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Compatible with fluorescent lamps (VA)

    1200 VA Non-compensated

  • Compatible with low consumption (W)


  • Compatible with motors (VA)


  • Frequency (Hz)

    50 Hz

  • Mode of operation

    4 lighting ambients

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    0 - 40 ºC

  • Power supply (V~)

    230 V~

  • Type of mechanism

    Push / IR

  • Version


Installation and maintenance
  • Cable stripping necessary (mm)

    10 mm

  • Claw


  • Installable in flush mount junction box


  • Installation type

    Suitable for surface and flush mounting

  • Regulations

    Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-1:2004 + EN 60669-2-1:2004 A1:2009 + EN 60669-2-1:2004 A12:2010

Logistics Information
  • Product volume

    329232 MMQ

  • Product net weight

    0.1 KGM

  • Product gross weight

    0.1 KGM

  • Packaging quantity


  • Packaging height

    57 MMT

  • Packaging width

    76 MMT

  • Packaging length

    76 MMT

  • Packaging volume

    0.329 DMQ

  • Packaging net weight

    0.1 KGM

  • Packaging gross weight

    0.1 KGM

  • Packaging EAN
