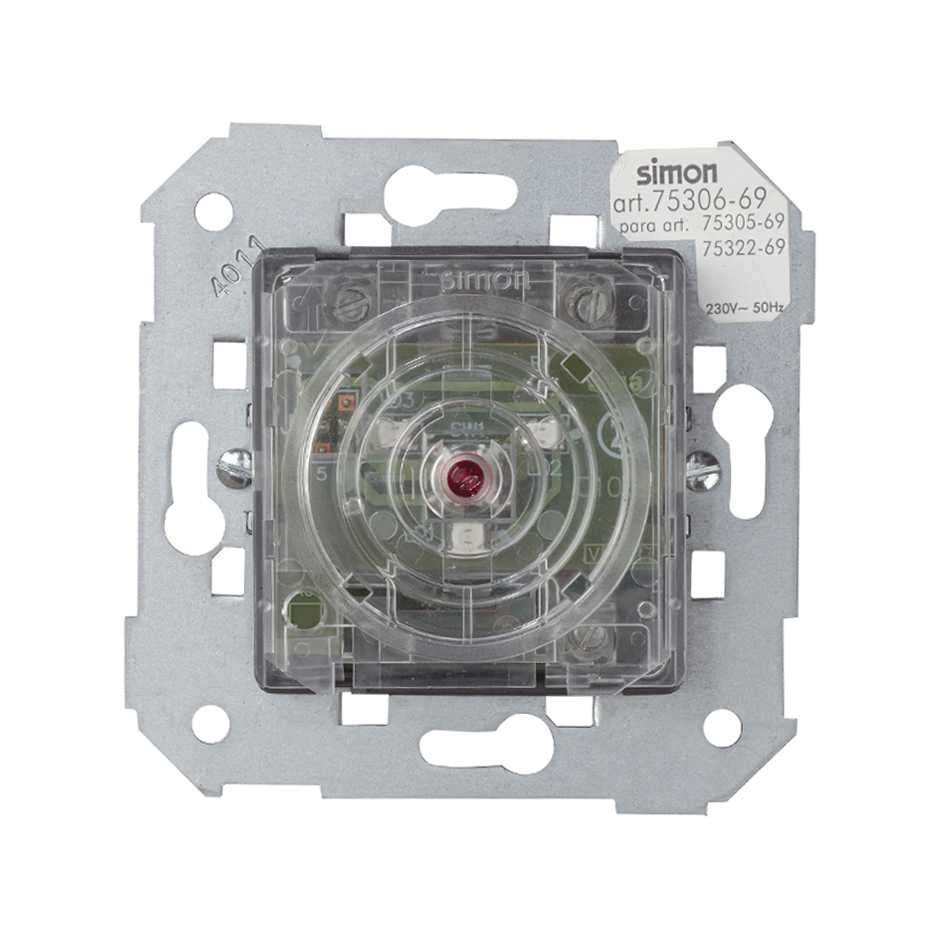

Touch auxiliary with built-in blue light for items 75305-69 and 75322-69
REFERENCE NO.:
75306-69
R.P.:
Price on request
PACKAGING:
1Unit
BASIC INFORMATION
Series:
Simon 75
Version:
Single
Power supply:
230 V~
Frequency:
50 Hz
Type:
Dimmer / 2-way switch
Minimum power:
40 W
Maximum power:
500 W
Disconnection timer:
15 minutes
Compatible with halogens with electronic transformer:
500 VA
Compatible with low consumption:
No
Compatible with fluorescent lamps:
No
Compatible with fluorescent lamps with 1-10V dimmable electronic reactance:
No
Compatible with LED lamps:
No
Compatible with motors:
No
Indicator function:
Yes
Consumption indicator:
1,5 mA
No. of possible elements:
1 element
Claw:
Included
Compatibility:
Simon 31, Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames
Packaging contents:
Auxiliary and instruction sheet
Remarks:
Allows the use of up to 15 auxiliary elements in the same circuit.
TECHNICAL INFORMATION
Cable section admitted:
From 1.5 to 2.5 mm
Cable stripping necessary:
6 mm
IP rating:
20
Number of contacts:
3
Number of wires:
3
Number of controllable circuits:
1
Maximum quantity per circuit:
15
Compatible with mechanical switch:
No
Compatible with mechanical 2-way/crossover switch:
No
Compatible with mechanical push button:
No
Compatible with electronic auxiliary:
15
Manufacturing material:
Electronic components with halogen-free thermoplastic insulation
Type of product:
Standard
Market available:
CE
REGULATIONS
Regulations:
Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-1:2004 + EN 60669-2-1:2004 A1:2009 + EN 60669-2-1:2004 A12:2010
INSTALLATION AND MAINTENANCE
Installation type:
Suitable for surface and flush mounting
Installable in flush mount junction box:
Universal
Operating temperature range:
0 to 55 ºC
Storage temperature range:
25 to 70 ºC
LOGISTIC DATA
Available in display box:
Yes
Packaging quantity:
1
Box measurement unit:
MM
Height:
57.000
Wide:
76.000
Depth:
76.000
Box volume:
329232.000
Box volume measurement unit:
MMQ
Net weight of box:
0.089
Unit weight of box:
KGM
EAN code:
8421053068328
Available in multiple box:
No
Available on pallet:
No
