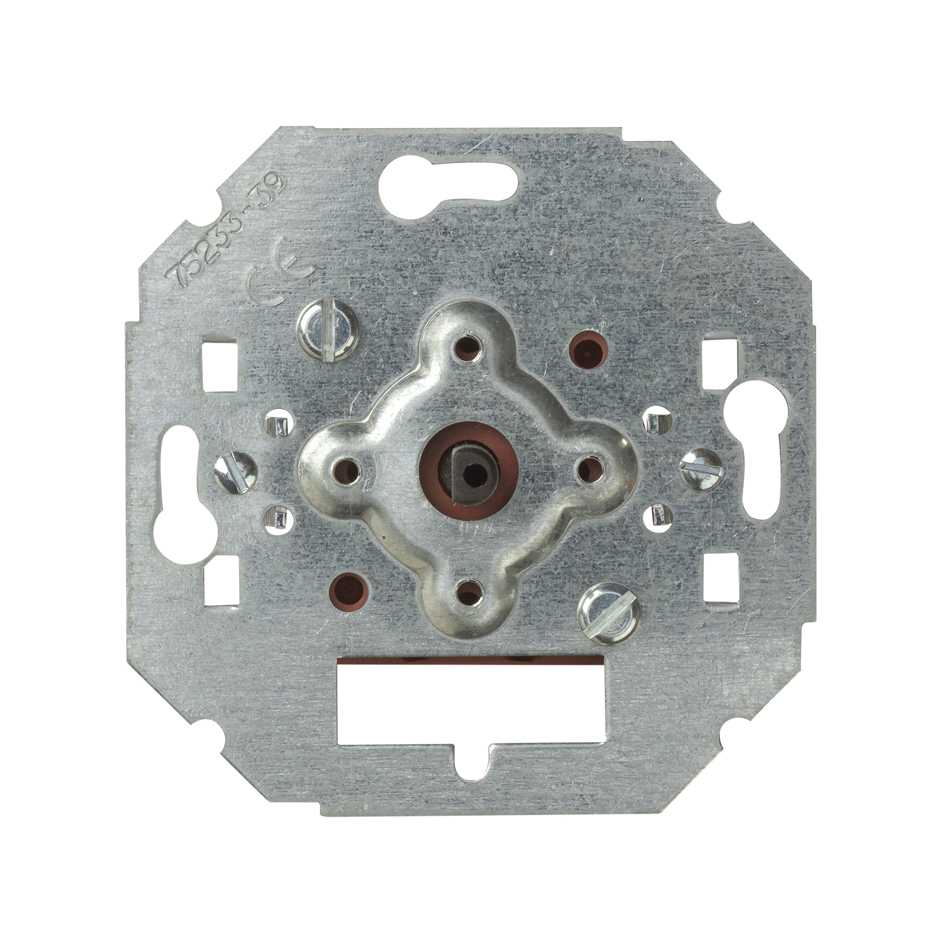

2-way rotary switch 16A 250V~ 4 positions front view

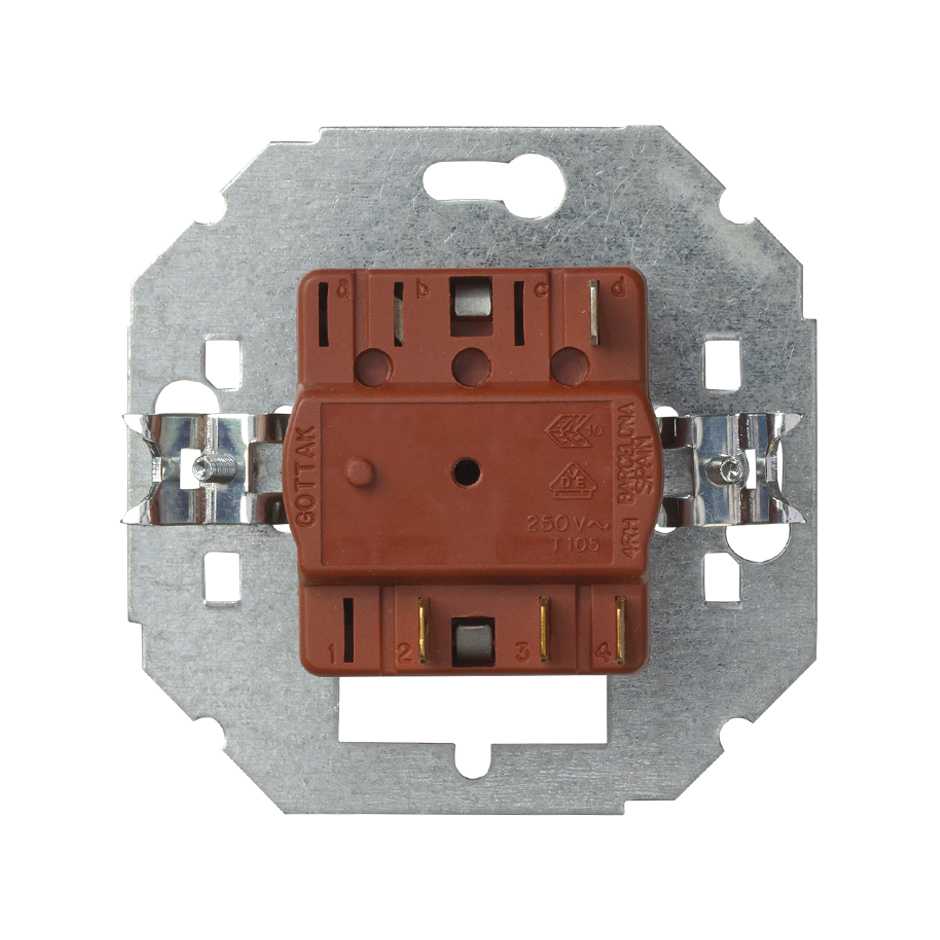

2-way rotary switch 16A 250V~ 4 positions rear view

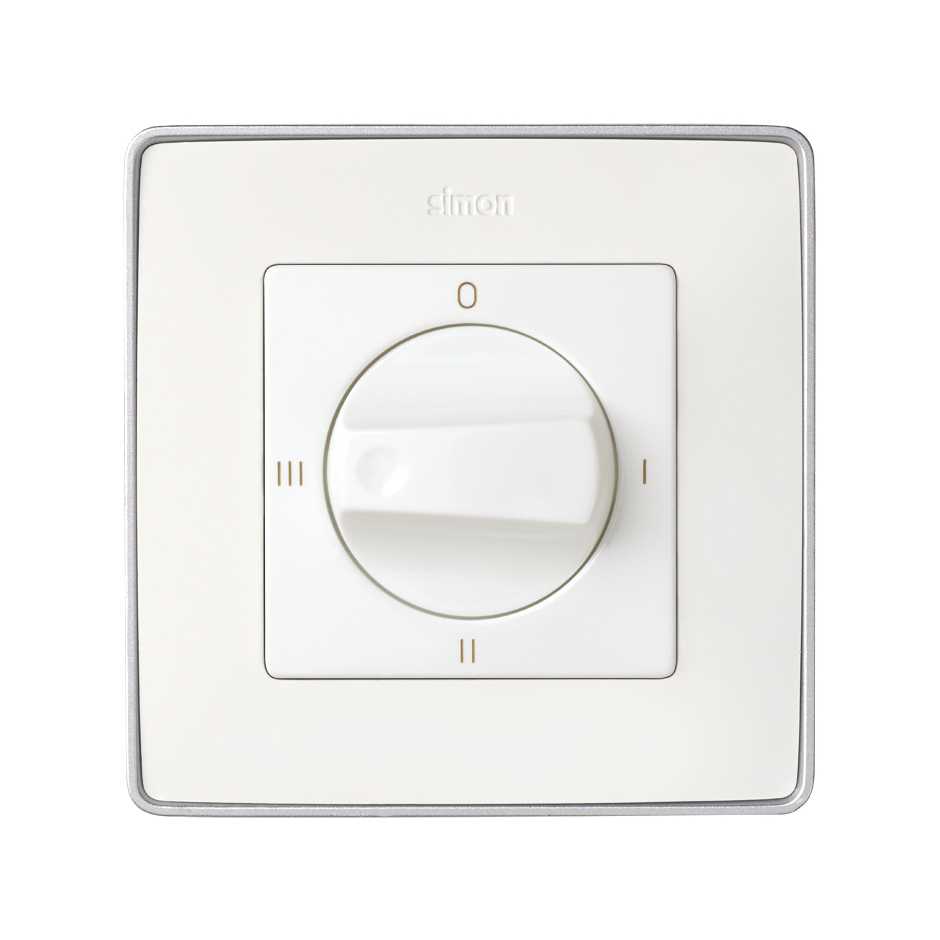

This image represents the combined solution of different references

Ref
75233-39

2-way rotary switch 16A 250V~ with 4 positions

Price/Unit
Price on request
Packaging quantity
10 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 75
Series Compatibility

Simon 82

Simon 82 Nature

Simon 82 Detail

Simon 75

Simon 82 Concept

Controls the electrical system through the rotary switch of the Simon 75 collection. Aunando/Aunando design and technology, this range of 2-way switches are converted into the perfect complement to achieve a few finishes that balance maximum functionality in a design of clean lines and minimalist style.

With a mechanism that includes the stop position and 3 more typefaces, it is ideal for ceiling fans, although its functionalities can spread to all types of electrical mechanisms.

To protect the room in case of fire, its components are isolated with halogen-free thermoplastic.

With the versatility of being able to be installed both flush-mounted as on the surface-mounted, the rotary switch of the Simon 75 is compatible with a voltage of power of 250 Volt and 10 Ampere current, allowing it wire cross-section of 0.5 mm

Design adapted to the new decorative trends and the guarantee of the top innovation and functionality within this rotary switch Simon 75.

Basic information
  • Compatibility

    Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

  • Remarks

    Mechanism equipped with stop position and 3 other positions (ideal for ceiling fans)

  • Packaging contents

    Mechanism

Technical information
  • Market available

    CE

  • Number of functional positions

    4

  • Cable section admitted (mm)

    0,5 mm

  • Intensity (A)

    16 A

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Rotary

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Welding

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + + EN 61058:2002 + EN 61058:2002 A2:2008 + EN 61058-2-1:2011

Logistics Information
  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    3409560MMQ

  • Product net weight

    0.082KGM

  • Product gross weight

    0.082KGM

  • Product EAN

    8421053255902

  • Packaging quantity

    10

  • Packaging height

    82MMT

  • Packaging width

    165MMT

  • Packaging length

    252MMT

  • Packaging volume

    3409560MMQ

  • Packaging net weight

    0.82KGM

  • Packaging gross weight

    0.82KGM

  • Packaging EAN

    8421053024201
