2-way switch 10AX 250V~ with built-in light and fast terminal connection system

2-way switch 10AX 250V~ with built-in light and fast terminal connection system

REFERENCE NO.: 75204-39

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

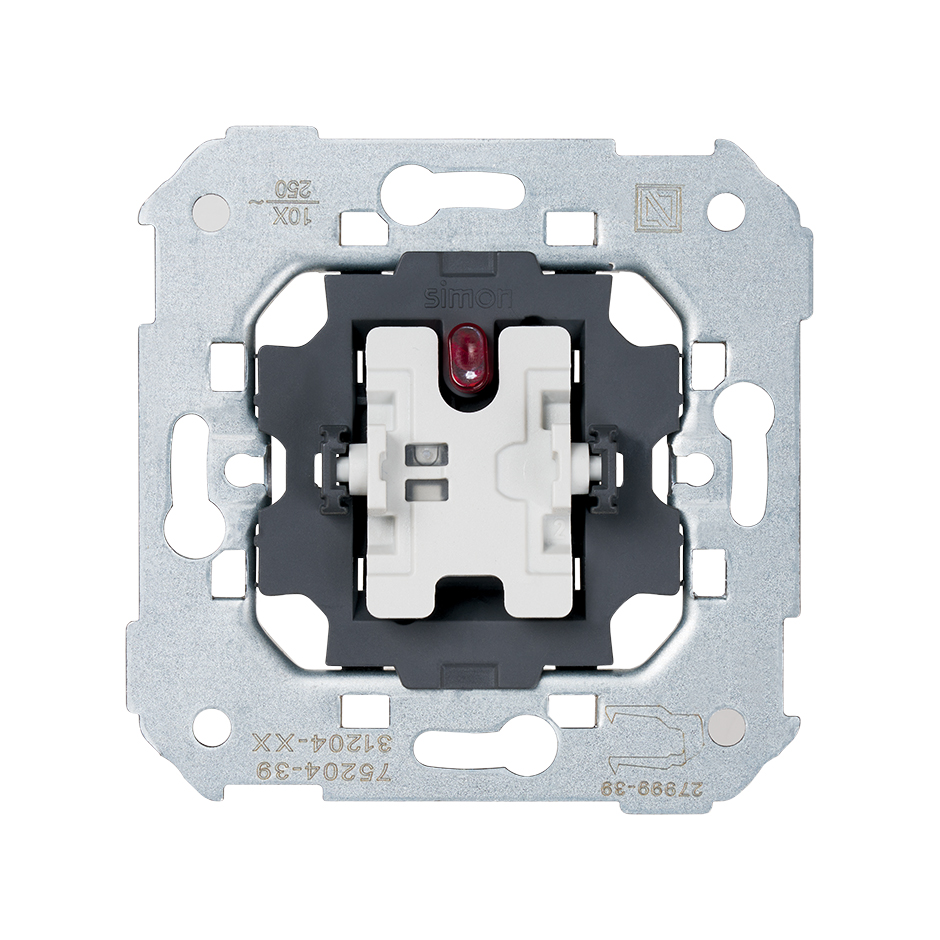

2-way switch 10AX 250V~ built-in light front view


This image represents the combination of different references


2-way switch 10AX 250V~ built-in light rear view

2-way switch 10AX 250V~ built-in light packaging


SERIES: Simon 75 INTENSITY: 10 AX TYPE OF TERMINAL CONNECTION: Fast TYPE OF MECHANISM: Pivoting Rockers

82011-30

82011-31

82011-33

82011-34

82011-38

82011-93

Product description

This 2-way switch 10 AX 250V~ includes luminous light and fast-terminal connection system, making installation a simple and agile process. The mechanism can be combined with the reference 31803-31 in case of replacement of the indicator light, it is also suitable for surface and flush mounting and has been manufactured in strict compliance with the regulations. It is characterized by an extraordinary thermal resistance, although the manufacturer advises to install the 2-way switch in environments where the temperature is between 5 and 40º. It is composed of metal parts with halogen-free thermoplastic insulation. It belongs to the Simon 75 series, a collection that offers innovative control mechanisms such as this 2-way switch and other devices suitable for any lifestyle. The series consists of parts in a multitude of finishes and with different electronic functions that make everyday life much easier. This collection is compatible with the mechanisms of the Simon 77 series.

BASIC INFORMATION

Indicator function: Yes

Consumption indicator: 1 mA

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

Packaging contents: Mechanism

Remarks: Can be combined with article 31803-31 if replacing the light indicator.

Series: Simon 75

Version: Single

Intensity: 10 AX

Voltage: 250 V~

Type of terminal connection: Fast

Type of mechanism: Pivoting

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Cable stripping necessary: 11 mm

IP rating: 20

Manufacturing material: Metallic components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 83.000

Wide: 165.000

Depth: 221.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.730

Unit weight of box: KGM

EAN code: 8421053003602

Available in multiple box: No

Available on pallet: No
