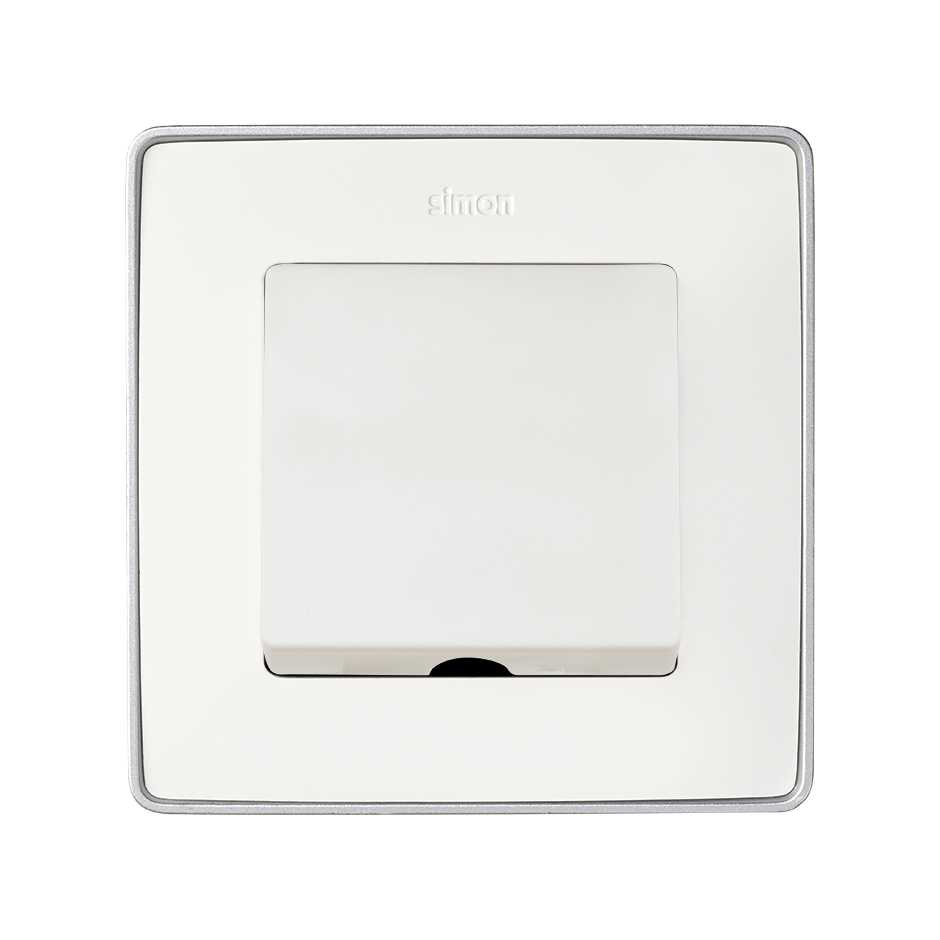

2-way pull-cord switch 10AX 250V~ front view

This image represents the combined solution of different references

2-way pull-cord switch 10AX 250V~ front view

Ref
75203-39

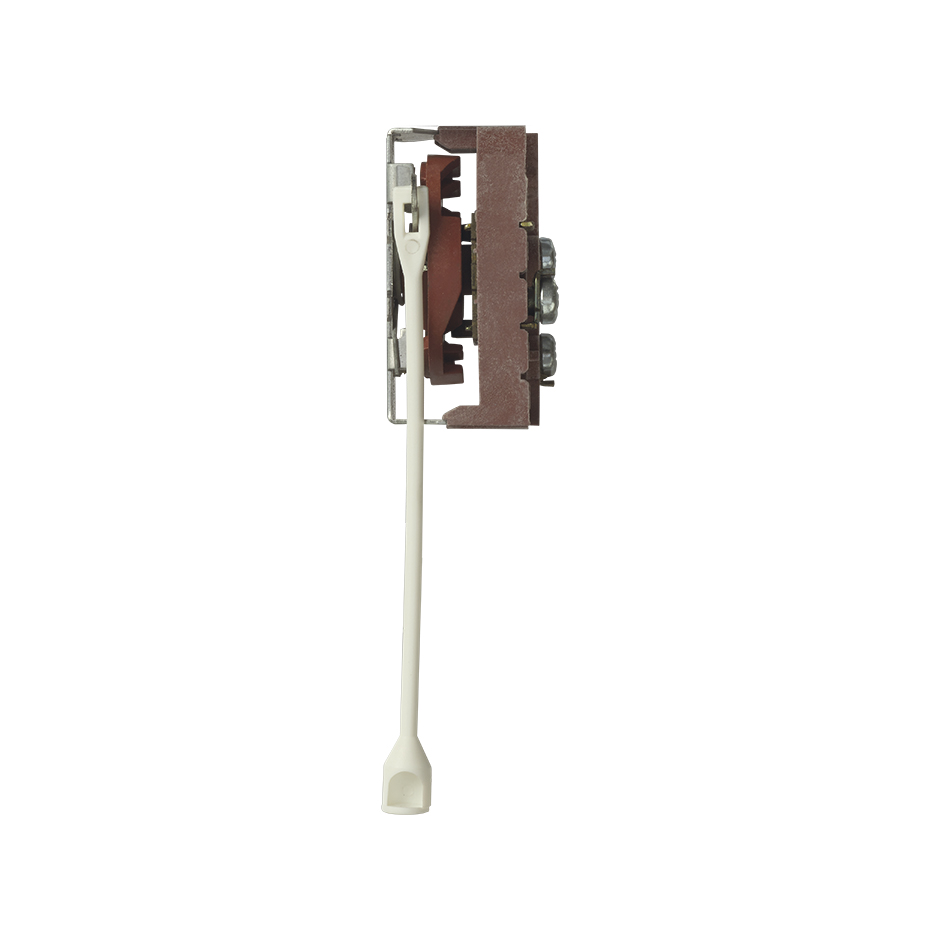

2-way pull-cord switch 10AX 250V~ with screw terminal connection system

Price/Unit
Price on request
Packaging quantity
10 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 75
Series Compatibility

Simon 82

Simon 82 Nature

Simon 82 Detail

Simon 75

Simon 82 Concept

If what you need is skew a current of a rung, or interrupt, it will be necessary to a 2-way switch, Simon has a multitude of 2-way switches with multiple options of installation, size, finishes and use or operation.

In this case, this product is a pull-cord 2-way switch for currents of up to 10A of intensity and 250 volts.

It stands out for its simple screw terminal connection. Its installation is also very simple and can be flush mounted or surface mounted on a surface or wall.

Like the majority of Simon products, the 2-way switch you can combine it with other elements of the brand, in this sense, the ideal complement of the product, it is a cover that do trim function and which must be of the same finish to achieve an aesthetic result and harmonious on the final product.

The components of the 2-way switch has the characteristic of come with halogen-free thermoplastic insulation, which provides a resistance and hardness extra the product, thus, 2-way switch will present uH good operation under extreme temperature conditions whether are very low and very high and withstand challenges external as knocks or scratches with more easily.

Basic information
  • Compatibility

    Simon 75, Simon 82 Detail, Simon 82 Nature and Simon 82 frames

  • Packaging contents

    Mechanism

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 0,2 to 0,5 mm

  • Intensity (A)

    10 AX

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pull cord

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    7

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Screw

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    3017190MMQ

  • Product net weight

    0.073KGM

  • Product gross weight

    0.073KGM

  • Product EAN

    8421053255858

  • Packaging quantity

    10

  • Packaging height

    82MMT

  • Packaging width

    165MMT

  • Packaging length

    223MMT

  • Packaging volume

    3017190MMQ

  • Packaging net weight

    0.73KGM

  • Packaging gross weight

    0.725KGM

  • Packaging EAN

    8421053032961
