2-way switch 10AX 250V~ with built-in pilot light and fast terminal connection system

2-way switch 10AX 250V~ with built-in pilot light and fast terminal connection system

REFERENCE NO.: 75202-39

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

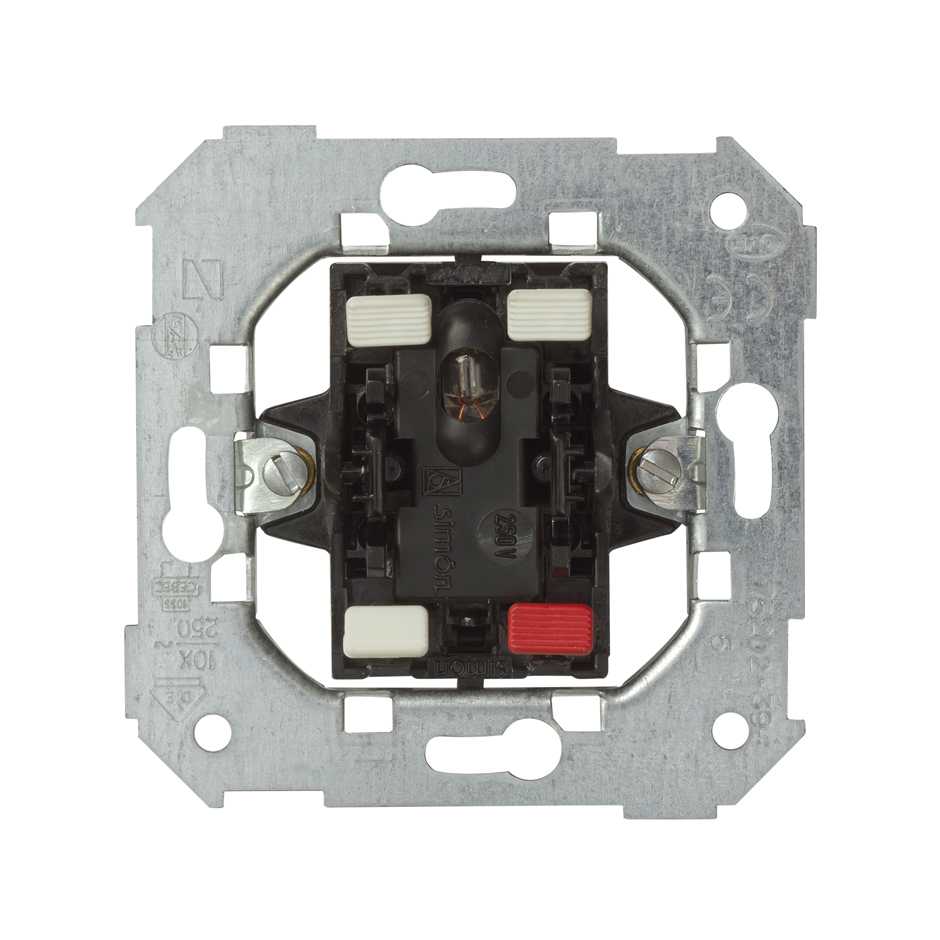

2-way switch 10AX 250V~ built-in pilot light front view


This image represents the combination of different references

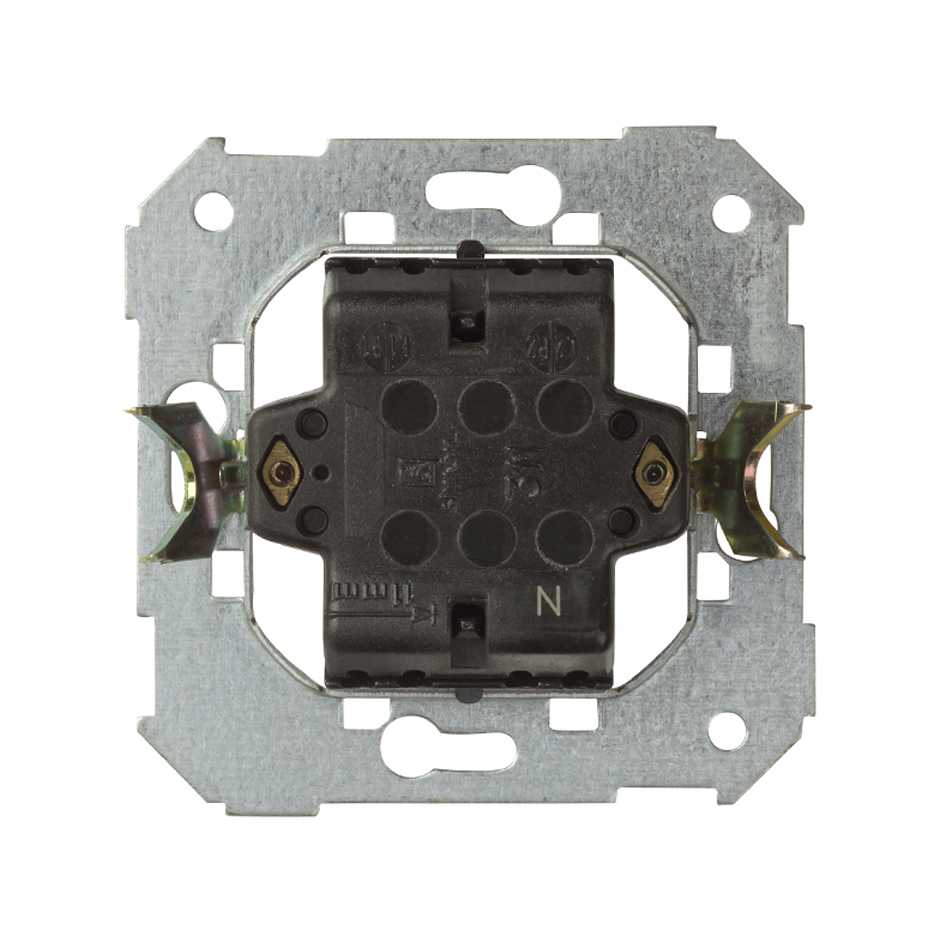

2-way switch 10AX 250V~ built-in pilot light rear view

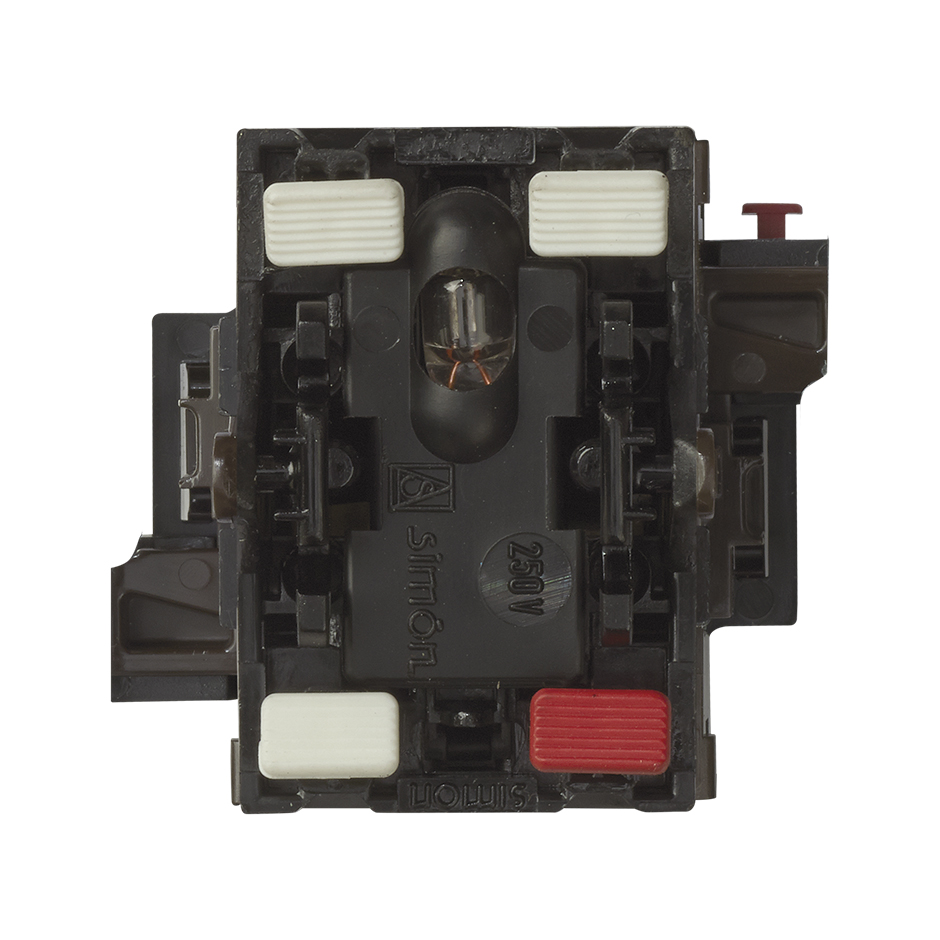

2-way switch 10AX 250V~ built-in pilot light packaging


SERIES: Simon 75 INTENSITY: 10 AX TYPE OF TERMINAL CONNECTION: Fast TYPE OF MECHANISM: Pivoting COMPATIBLE SERIES: Simon 82 Concept Simon 82 Detail Simon 82 Nature Simon 82 Simon 75 Rockers

82011-30

82011-31

82011-33

82011-34

82011-38

82011-93

Product description

2-way switch 10AX 250V~ with built-in light and quick terminal connection system. This article corresponds to the Simon 75 series, a collection suitable for all types of decorative spaces thanks to the versatility of its mechanisms. With rocker operation, this 2-way switch is suitable for surface or flush mounting installation, it consists of metal components with insulation in halogen-free thermoplastic material. Not in vain, the product has been manufactured in accordance with the current regulation. It has a high resistance to extreme temperatures and also against scratches. This article can be combined with the reference 31802-31. in case you need to replace the indicator light, in order to ensure optimum preservation of this piece, it is recommended to install it in environments with a temperature range between 5 and 40ºC. The Simon 75 series is compatible with the Simon 77 mechanisms, a collection that allows you to connect the cables without stripping, reducing installation time.

BASIC INFORMATION

Indicator function: Yes

Consumption indicator: 1 mA

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

Packaging contents: Mechanism

Remarks: Can be combined with article 31802-31 if replacing the light indicator.

Series: Simon 75

Version: Single

Intensity: 10 AX

Voltage: 250 V~

Type of terminal connection: Fast

Type of mechanism: Pivoting

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Cable stripping necessary: 11 mm

IP rating: 20

Manufacturing material: Metallic components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 83.000

Wide: 165.000

Depth: 221.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.740

Unit weight of box: KGM

EAN code: 8421053003596

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Multiple box volume measurement unit: MM3

Unit weight of multiple box: KG

Available on pallet: No


2-way switch with pilot light application in hotel


2-way switch 10AX 250V~ built-in pilot light front view


This image represents the combination of different references


2-way switch with pilot light, rocker and frame Simon 82 Detail Select white aluminium base R.P.: Price on request

REFERENCE NO.: 75202-39 R.P.: Price on request 2-way switch 10AX 250V~ with built-in pilot light and fast terminal connection system
