Ref
75201-39

Two-way switch 10 AX 250V~ with quick terminal connection Simon 75

Price/Unit
€10.36
Packaging quantity
10 Units

Available downloads

Technical specifications
75201-39-en-datasheet.pdf
Product declaration

  1. UES0015.pdf [645KB]

Drawing files

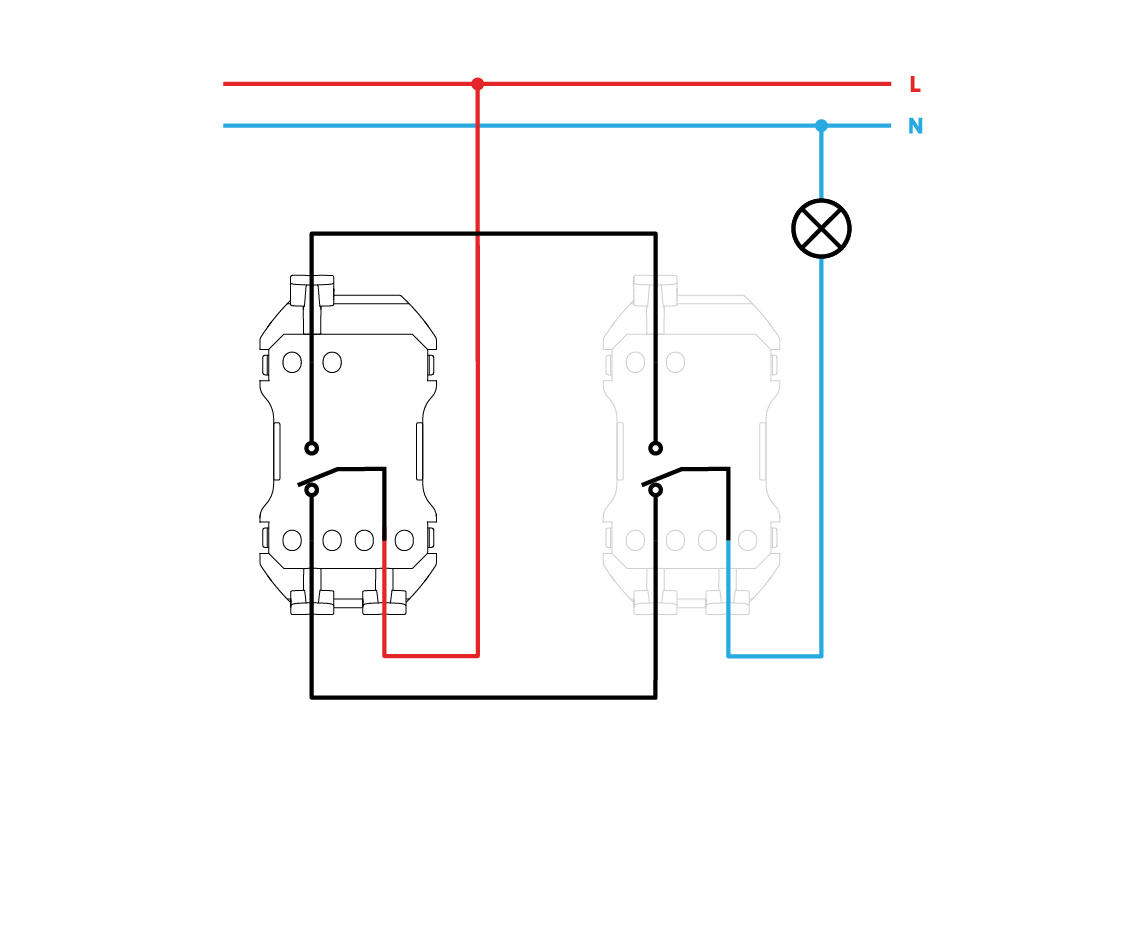

  1. E75201-39.jpg []

Certificates

AENOR 030-001940 20230913.pdf

Do you need advice?
Outstanding Features
Series
Simon 75
Series Compatibility

Simon 82

Simon 82 Nature

Simon 82 Detail

Simon 75

Simon 82 Concept

Simon 360

<p class=></p>
Ref
82010-93
Single rocker for switches cold aluminium Simon 82 Detail
<p class=></p>
Ref
8200017-098
Single rocker for push-button switch with bell Simon 82 Concept
<p class=></p>
Ref
8200017-096
Single rocker for push-button switch with bell Simon 82 Concept
<p class=></p>
Ref
8200017-090
Single rocker for push-button switch with bell Simon 82 Concept
<p class=></p>
Ref
8200010-098
Single rocker for mechanisms Simon 82 Concept
<p class=></p>
Ref
8200010-096
Single rocker for mechanisms Simon 82 Concept
<p class=></p>
Ref
8200010-090
Single rocker for mechanisms Simon 82 Concept
<p class=></p>
Ref
82010-38
Single rocker for switches graphite Simon 82
<p class=></p>
Ref
82010-31
Single rocker for switches ivory Simon 82
<p class=></p>
Ref
82010-30
Single rocker for switches white Simon 82
<p class=></p>
Ref
82010-34
Single rocker for switches champagne Simon 82
<p class=></p>
Ref
82010-33
Single rocker for switches aluminium Simon 82
<p class=></p>
Ref
8200017-094
Single Rocker with bell engraving for push button Champagne Simon 82 Concept
<p class=></p>
Ref
8200010-094
Single Rocker for control mechanisms Champagne Simon 82 Concept
<p class=></p>
Ref
36000610-190
Frame for 1 element white matte with aligner Simon 360
<p class=></p>
Ref
36000610-099
Frame for 1 element sand matte with aligner Simon 360
<p class=></p>
Ref
36000610-098
Frame for 1 element matte black with aligner Simon 360
<p class=></p>
Ref
36000010-190
Individual rocker for foldable mechanism white matte Simon 360
<p class=></p>
Ref
36000010-099
Individual rocker for toggle mechanism sand matte Simon 360
<p class=></p>
Ref
36000010-098
Individual rocker for foldable mechanism matte black Simon 360
Product Information
Downloads
Support

Two-way switch with an intensity of 10 AX and a power of 250 V~ including a quick terminal connection system that allows for easy, comfortable, and quick installation of the element; this is thanks to its compatibility with the mechanisms of the Simon 77 series. Because of this, you can have the element installed in a matter of minutes, without wasting a second; you simply need to insert and tighten the mechanism for it to be correctly installed. The element from the Simon 75 series also has the possibility to implement signaling function through a signaling support and key with viewer. The switch is manufactured with the best metallic components with thermoplastic insulation free of halogens, providing you with an element of the best possible quality to perform in different temperature ranges.

Basic information

  • Compatibility

    Marcos Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 Concept and Simon 82

  • Material

    Metal , Plastic

  • Packaging contents

    Mechanism

Technical information

  • Market available

    CE

  • Number of contacts

    3

  • Number of wires

    3

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Frequency (Hz)

    50 Hz

  • Intensity (A)

    10 AX

  • IP Rating

    IP21

  • Linkable

    No

  • Nominal voltage (V~)

    250 V~

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Recess dimension (mm)

    40

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

  • Depth (mm)

    39

Installation and maintenance

  • Cable stripping necessary (mm)

    15

  • Claw

    Simon 27

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Removal of cover

    Only with tool

  • Type of terminal connection

    Fast

Regulation

  • Regulations

    Dir. 2014/35/UE LVD|Dir. 2011/65/UE RoHS + post. mod.|EN 60669-1:2018|EN IEC 63000:2018

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.06KGM

  • Product gross weight

    0.06KGM

  • Product EAN

    8421053255834

  • Packaging quantity

    10

  • Packaging height

    83MMT

  • Packaging width

    165MMT

  • Packaging length

    221MMT

  • Packaging volume

    3026595MMQ

  • Packaging net weight

    0.6KGM

  • Packaging gross weight

    0.585KGM

  • Packaging EAN

    8421053003589

Do you need advice?
