Push-button switch 10A 250V~ with built-in light and fast terminal connection system

Push-button switch 10A 250V~ with built-in light and fast terminal connection system

REFERENCE NO.: 75160-39

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

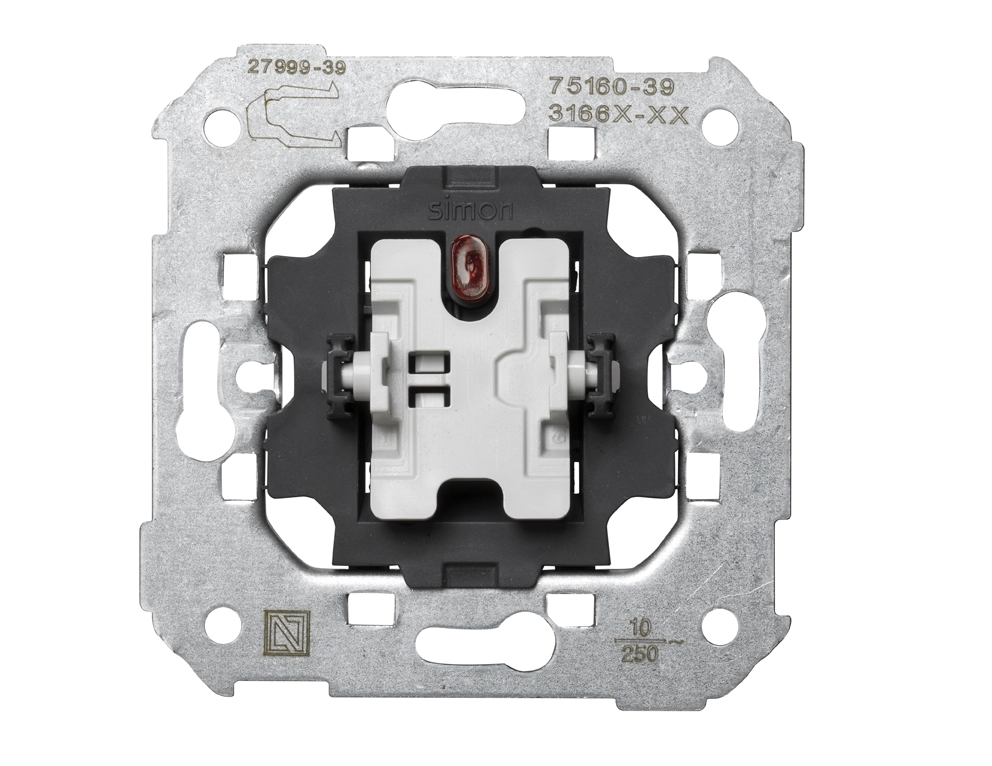

Push-button switch 10A 250V~ built-in light front view


This image represents the combination of different references

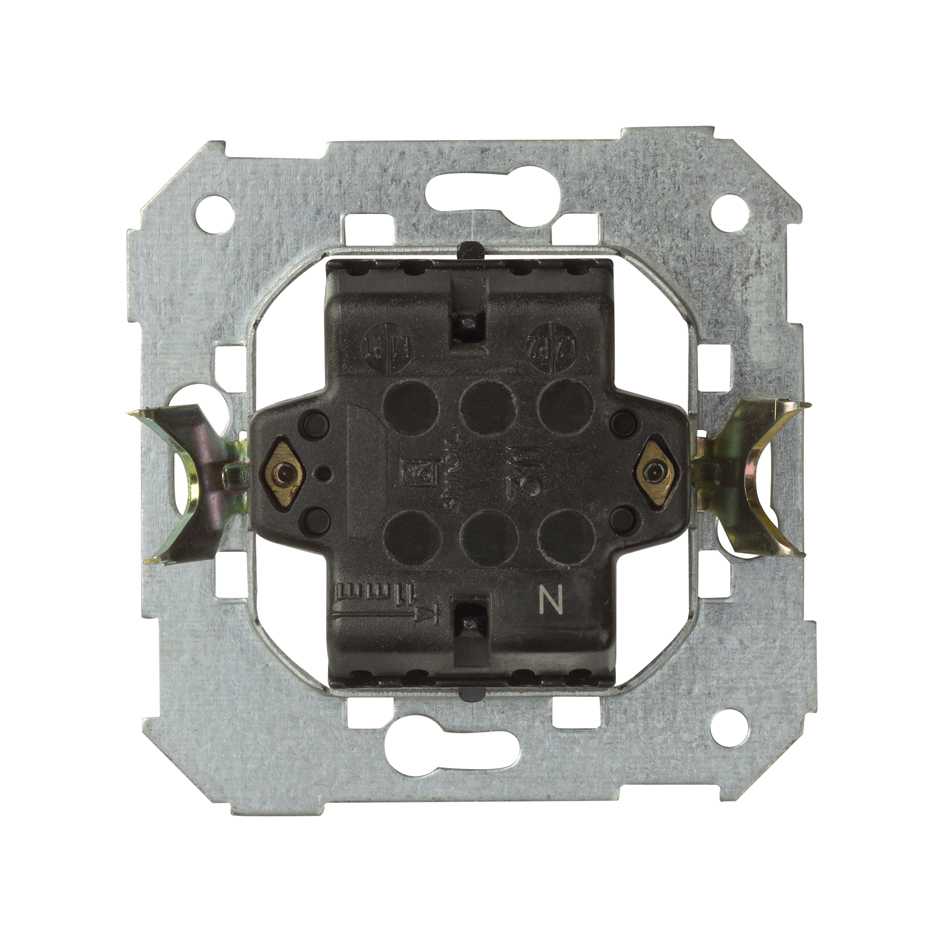

Push-button switch 10A 250V~ built-in light rear view

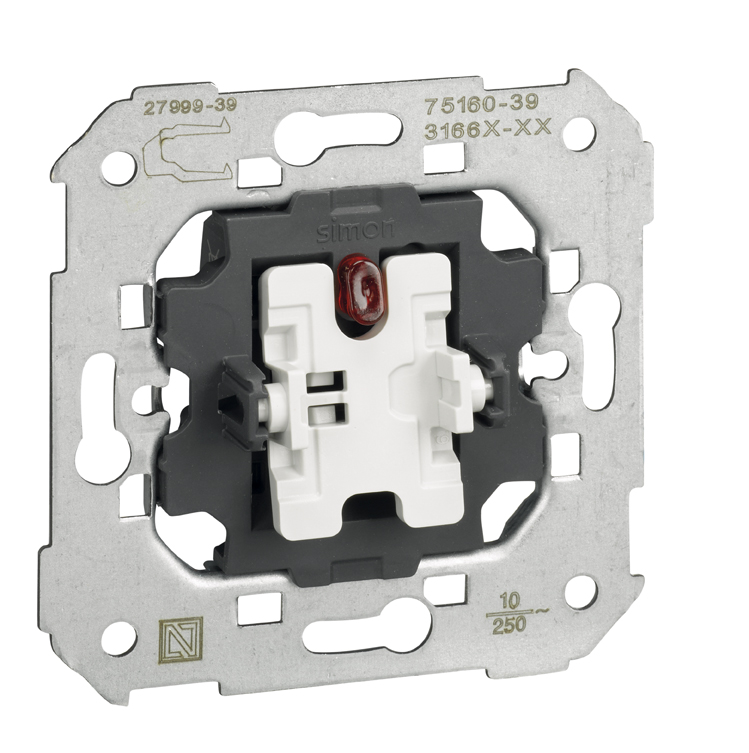

Push-button switch 10A 250V~ built-in light packaging


SERIES: Simon 75 INTENSITY: 10 А TYPE OF TERMINAL CONNECTION: Fast TYPE OF MECHANISM: Pivoting Rockers

82011-30

82011-31

82011-33

82011-34

82011-38

82011-93

Product description

This product is part of the range of control mechanisms of the Simon 75 series, in particular, is a push-button switch for currents of up to 10A current and 250 volts of power, which stands out for its easy quick terminal connection. The device has a push-button switch with built-in indicator light light and the product allows you to implement the signaling function by means of a signaling support and a rocker with viewer, all also available in Simon. The system of operation of the push-button switch is tilting, so that it is highly user-friendly and interactive with the user. Its installation is very simple and allows the option to make directly in surface-mounted or recessed. The materials with which it has been manufactured the push-button switch. These are metal components with thermoplastic insulation, halogen-free. The features of these materials make the product can operate in a optimum even at temperatures very low and high. Also, give resistance against possible challenges external and scratches and knocks and increases the security of the final set.

BASIC INFORMATION

Indicator function: Yes

Consumption indicator: 1 mA

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

Packaging contents: Mechanism

Remarks: Can be combined with article 31802-31 if replacing the light indicator.

Series: Simon 75

Version: Single

Intensity: 10 А

Voltage: 250 V~

Type of terminal connection: Fast

Type of mechanism: Pivoting

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Cable stripping necessary: 11 mm

IP rating: 20

Manufacturing material: Metallic components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 83.000

Wide: 165.000

Depth: 221.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.600

Unit weight of box: KGM

EAN code: 8421053003572

Available in multiple box: No

Available on pallet: No

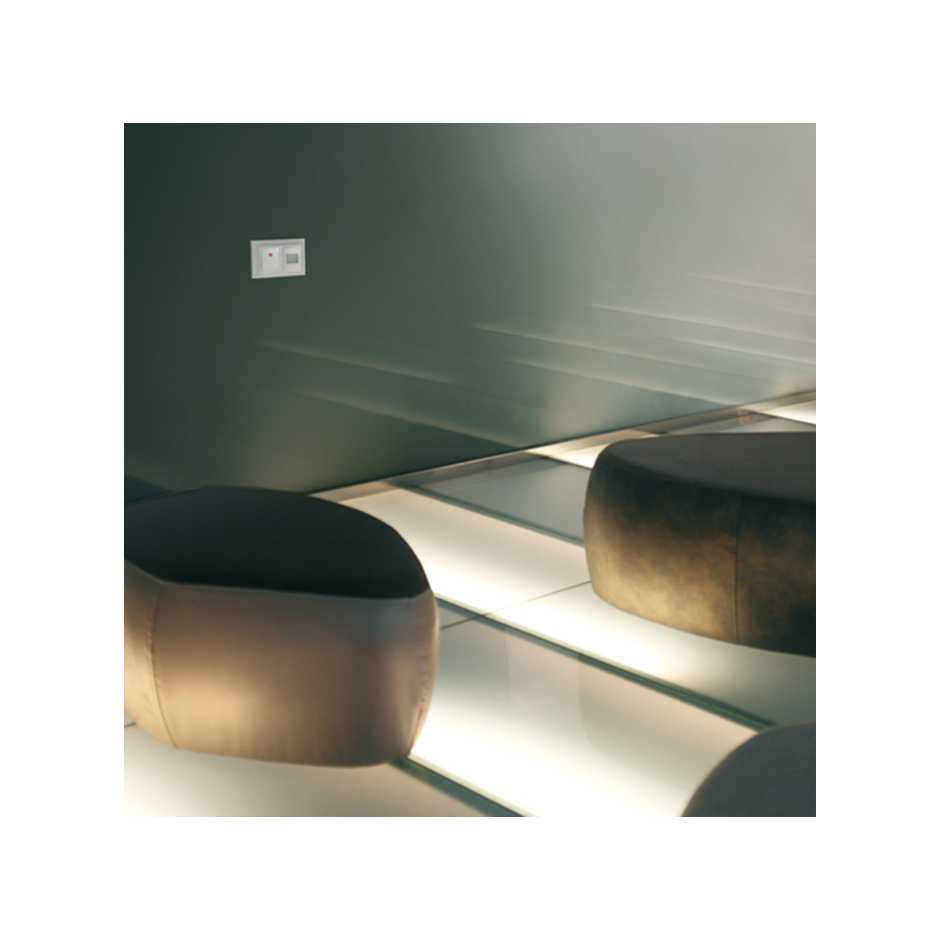

Push-button switch with light application in hotel


Push-button switch 10A 250V~ built-in light front view


This image represents the combination of different references

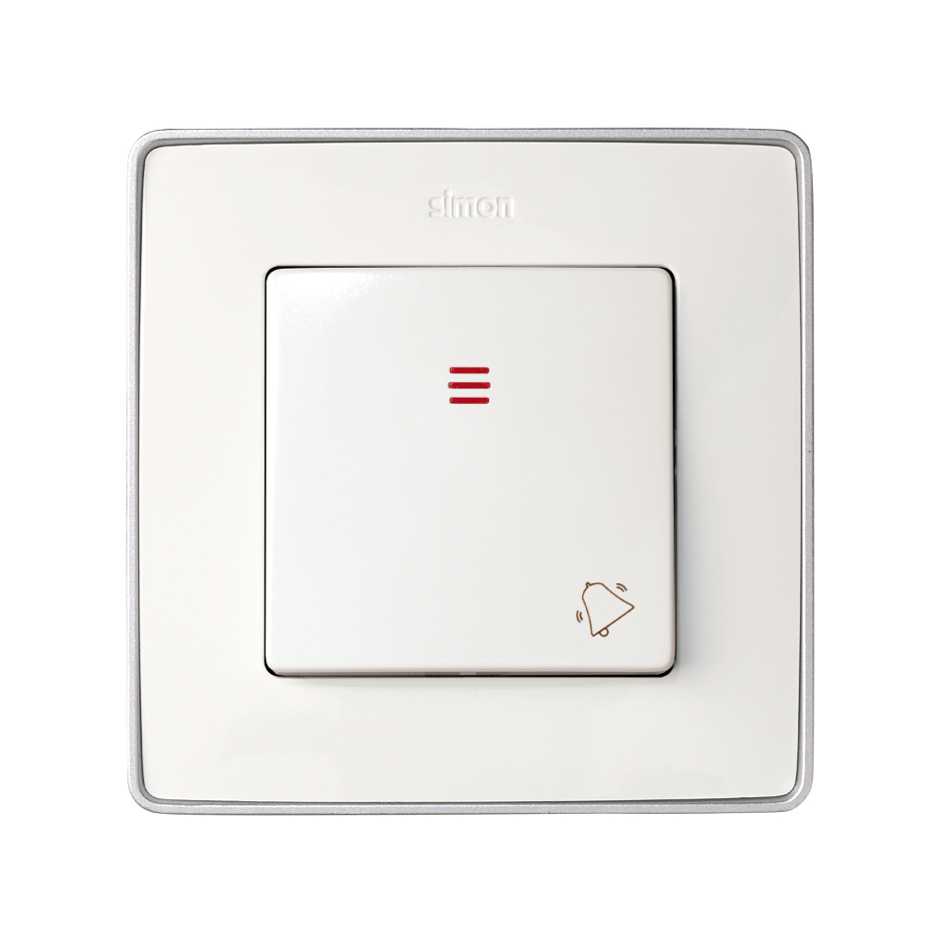

Push button with indicator light, rocker with bell symbol and frame Simon 82 Detail Select white aluminium base R.P.: Price on request
