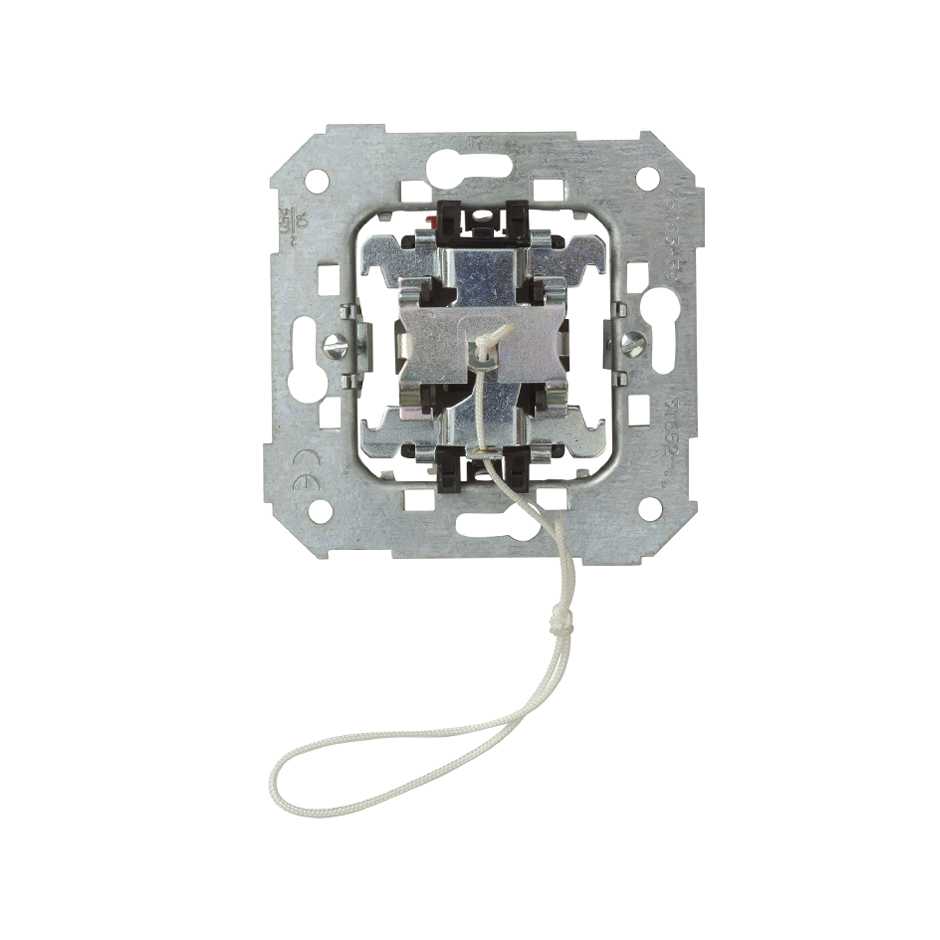

Pull-cord push-button switch 10A 250V~ with fast terminal connection system
REFERENCE NO.:
75153-39
R.P.:
Price on request
PACKAGING:
10Units
BASIC INFORMATION
Indicator function:
No
No. of possible elements:
1 element
Compatibility:
Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames
Packaging contents:
Mechanism
Series:
Simon 75
Version:
Single
Intensity:
10 A
Voltage:
250 V~
Type of terminal connection:
Screw
Type of mechanism:
Pull cord
TECHNICAL INFORMATION
Cable section admitted:
From 0.2 to 0.5 mm
Cable stripping necessary:
13 mm
IP rating:
20
Manufacturing material:
Metallic components with halogen-free thermoplastic insulation
Type of product:
Standard
Market available:
CE
REGULATIONS
Regulations:
Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008
INSTALLATION AND MAINTENANCE
Installation type:
Suitable for surface and flush mounting
Installable in flush mount junction box:
Universal
Operating temperature range:
5 to 40 ºC
Storage temperature range:
-25 to 50 ºC
LOGISTIC DATA
Available in display box:
Yes
Packaging quantity:
10
Box measurement unit:
MM
Height:
82.000
Wide:
165.000
Depth:
252.000
Box volume:
3409560.000
Box volume measurement unit:
MMQ
Net weight of box:
0.760
Unit weight of box:
KGM
EAN code:
8421053026229
Available in multiple box:
No
Multiple box measurement unit:
MM
Multiple box packaging quantity measurement unit:
UN
Multiple box volume measurement unit:
MM3
Unit weight of multiple box:
KG
Available on pallet:
No
GALLERY
PRODUCT DECLARATIONS
MODULAR SOLUTION

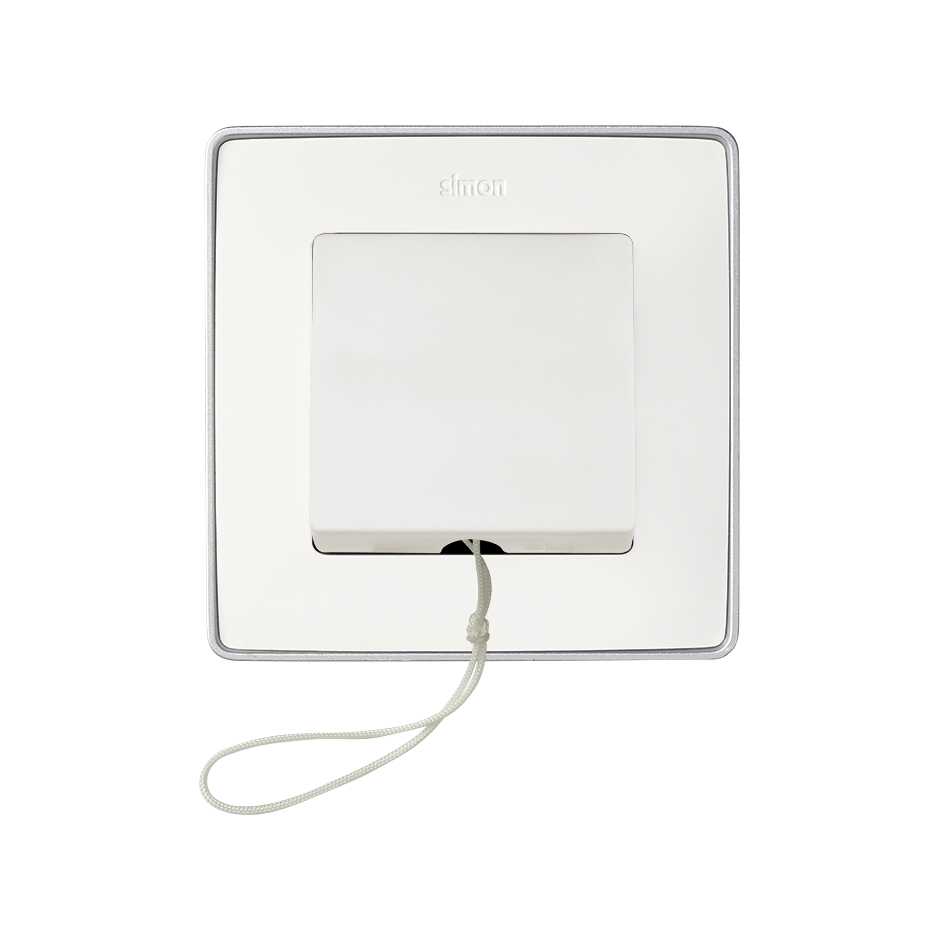

Pull-cord push button with rocker and frame Simon 82 Detail Select white aluminium base
