Push-button switch 10A 250V~ with fast terminal connection system

REFERENCE NO.: 75150-39

R.P.: Price on request

PACKAGING: 10Units

Variables de unidades de obras ---> -false-false

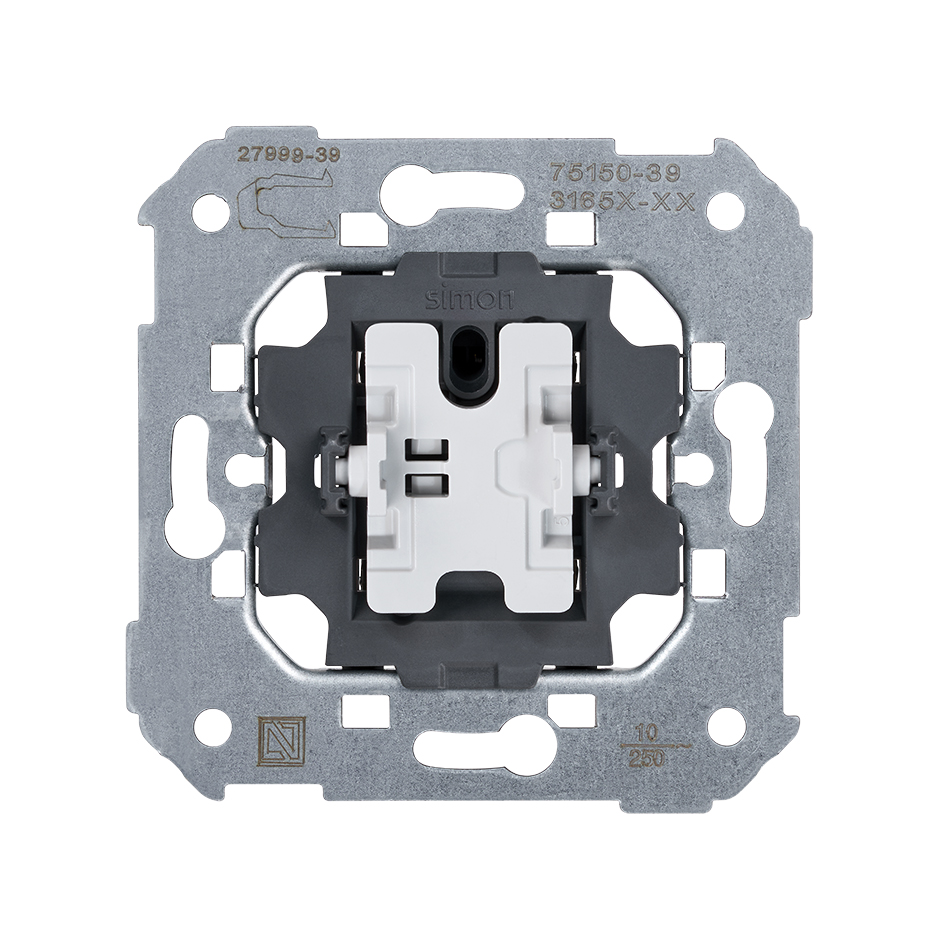

Push-button switch 10A 250V~ front view


This image represents the combination of different references


Push-button switch 10A 250V~ rear view

Push-button switch 10A 250V~ packaging


SERIES: Simon 75 INTENSITY: 10 А TYPE OF TERMINAL CONNECTION: Fast TYPE OF MECHANISM: Pivoting COMPATIBLE SERIES: Simon 82 Detail Simon 82 Nature Rockers

82010-30

82010-31

82010-33

82010-34

82010-38

82010-93

Product description

The Simon 75 series features the Push-button switch 10 A 250V~ with fast-terminal connection system and tilting operation. This element has the possibility of implementing signaling function via cradle blinking and rocker with viewer. It is suitable for surface and flush mounting, and can be easily installed in just a few minutes. Resistance and durability are two adjectives that define this push-button switch manufactured with metal components with halogen-free thermoplastic insulation, which prevent deterioration at high and low temperatures, in addition, it has a wire cross section of 1.5 to 2.5 m and stripping of 11 mm wire All these qualities have no influence on its price, as we are facing one of the cheapest push-buttons on the market today. This is undoubtedly one of the keys to its success in all types of public and private buildings.

BASIC INFORMATION

Indicator function: No

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

Packaging contents: Mechanism

Remarks: Possibility of implementing signalling function using cradle blinking and rocker with viewer.

Series: Simon 75

Version: Single

Intensity: 10 А

Voltage: 250 V~

Type of terminal connection: Fast

Type of mechanism: Pivoting

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Cable stripping necessary: 11 mm

IP rating: 20

Manufacturing material: Metallic components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 83.000

Wide: 165.000

Depth: 221.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.580

Unit weight of box: KGM

EAN code: 8421053003565

Available in multiple box: Yes

Multiple box packaging quantity: 50

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: ZCM

Height of multiple box: 223.000

Width of multiple box: 172.000

Depth of multiple box: 430.000

Multiple box volume: 16493080.000

Multiple box volume measurement unit: MMQ

Net weight of multiple box: 2.900

Unit weight of multiple box: KGM

Multiple box EAN code: 8421053040324

Available on pallet: No
