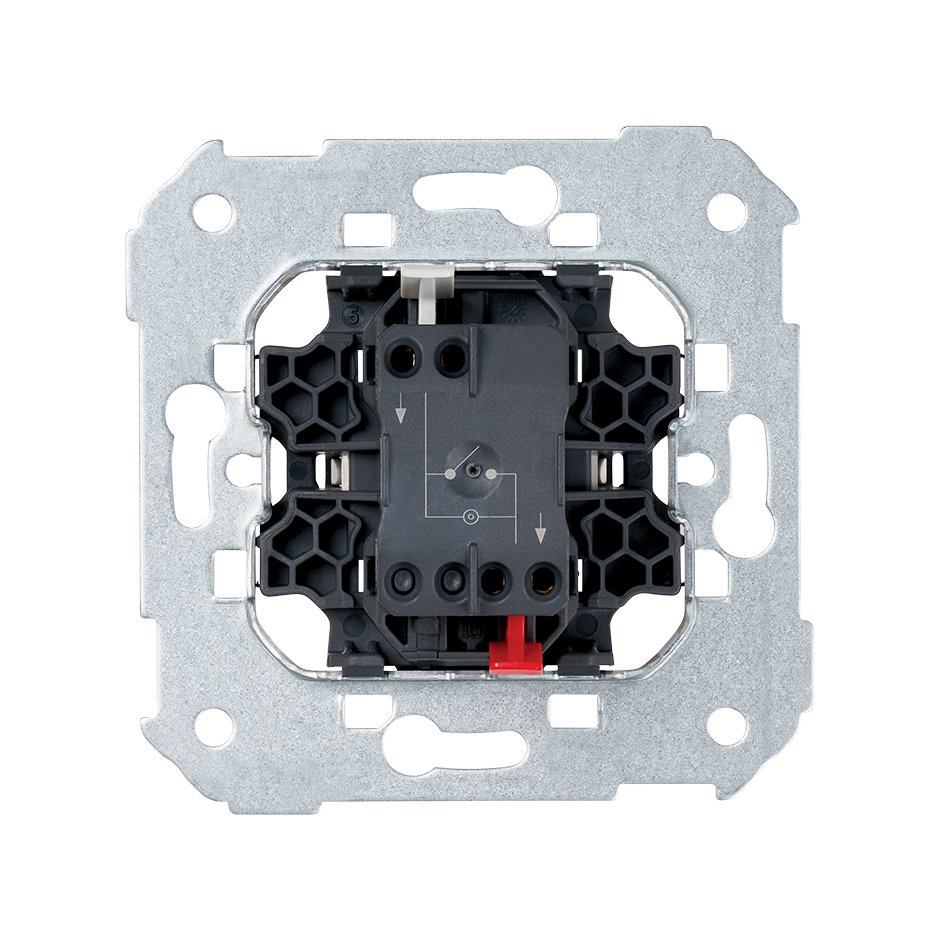

Single-pole switch 10AX 250V~ rear view

This image represents the combined solution of different references

Single-pole switch application in kitchen

Single-pole switch application in kitchen

Single-pole switch 10AX 250V~ front view

Single-pole switch 10AX 250V~ rear view

This image represents the combined solution of different references

Single-pole switch application in kitchen

Single-pole switch application in kitchen

Ref
75104-39

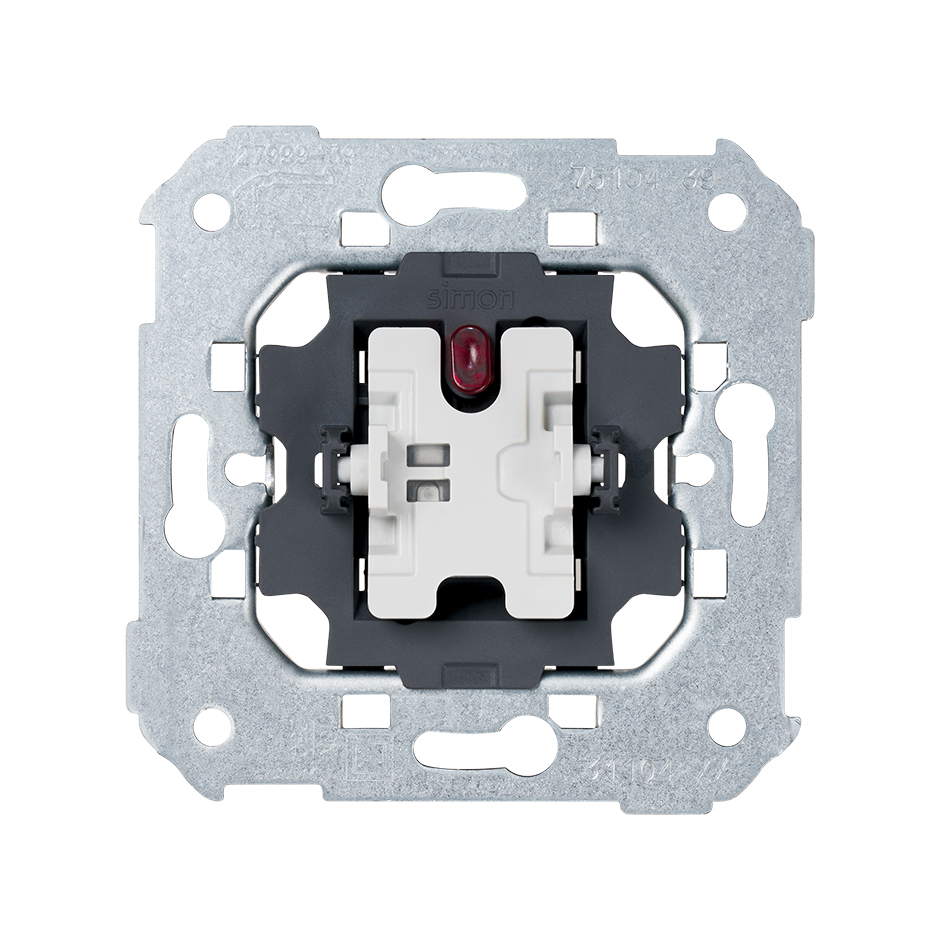

Single-pole switch 10AX 250V~ with built-in light and fast terminal connection system

Price/Unit
Price on request
Packaging quantity
10 Units

Available downloads

Technical specifications
75104-39-datasheet-en.pdf
Drawing files

  1. Esquemas_s31-75-77-82-88.pdf []

Certificación CE

AENOR 030-001940 20230913.pdf

Do you need advice?
Outstanding Features
Series
Simon 75
Series Compatibility

Simon 82

Simon 82 Detail

Simon 75

Simon 82 Concept

Simon 82 Nature

<p class=></p>
Ref
82011-93
Single rocker for switches with indicator light cold aluminium Simon 82 Detail
<p class=></p>
Ref
8200111-098
Single rocker S.75 mechanisms with viewer Simon 82 Concept
<p class=></p>
Ref
8200111-096
Single rocker S.75 mechanisms with viewer Simon 82 Concept
<p class=></p>
Ref
8200111-090
Single rocker S.75 mechanisms with viewer Simon 82 Concept
<p class=></p>
Ref
82011-38
Single rocker for switches with light graphite Simon 82
<p class=></p>
Ref
82011-31
Single rocker for switches with light ivory Simon 82
<p class=></p>
Ref
82011-30
Single rocker for switches with light white Simon 82
<p class=></p>
Ref
82011-34
Single rocker for switches with light champagne Simon 82
<p class=></p>
Ref
82011-33
Single rocker for switches with light aluminium Simon 82
<p class=></p>
Ref
8200111-094
Single Rocker with Viewer for Mechanisms S.75 Champagne Simon 82 Concept
Product Information
Support

Single-pole switch with built in LED system and quick terminal connection of the Simon 75 series.

The Simon 75 series is perfect if you are looking for multiple colour combinations and is compatible with the mechanisms of the Simon 77 series, which allows cables to be connected without the need for stripping, braiding or using additional tools to place them, thus reducing installation time.

It has a rocker operation, with an intensity of 10A and a voltage of 250V.

This switch is suitable both for surface and flush mounting and fully can be combined with the reference 31802-31 in case you have to replace the indicator light.

It supports a cable section of 1.5 to 2.5 mm and the stripping of 11 mm and can be installed in places with a temperature of between 5 and 40ºC, approximately.

It is made of metal components with halogen-free thermoplastic insulation and in its manufacture are the rules followed UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009.

Basic information

  • Compatibility

    Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

  • Remarks

    Can be combined with article 31802-31 if replacing the light indicator.

  • Packaging contents

    Mechanism

Technical information

  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Consumption indicator (mA)

    1 mA

  • Intensity (A)

    10 AX

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance

  • Cable stripping necessary (mm)

    11

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

Regulation

  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.06KGM

  • Product gross weight

    0.06KGM

  • Product EAN

    8421053255759

  • Packaging quantity

    10

  • Packaging height

    83MMT

  • Packaging width

    165MMT

  • Packaging length

    221MMT

  • Packaging volume

    3026595MMQ

  • Packaging net weight

    0.6KGM

  • Packaging gross weight

    0.595KGM

  • Packaging EAN

    8421053003534

Do you need advice?

If you need to contact us, please click here to send us a message and we will respond as soon as possible.
