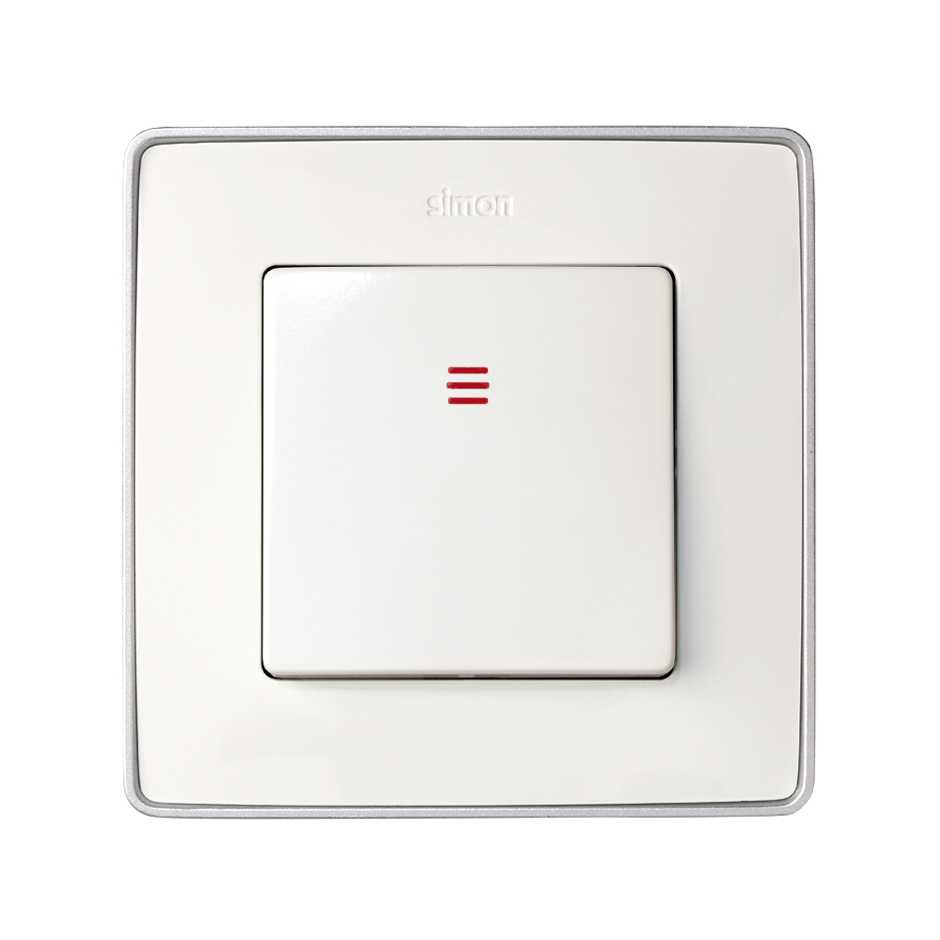

Single-pole switch 10AX 250V~ front view

Single-pole switch 10AX 250V~ front view

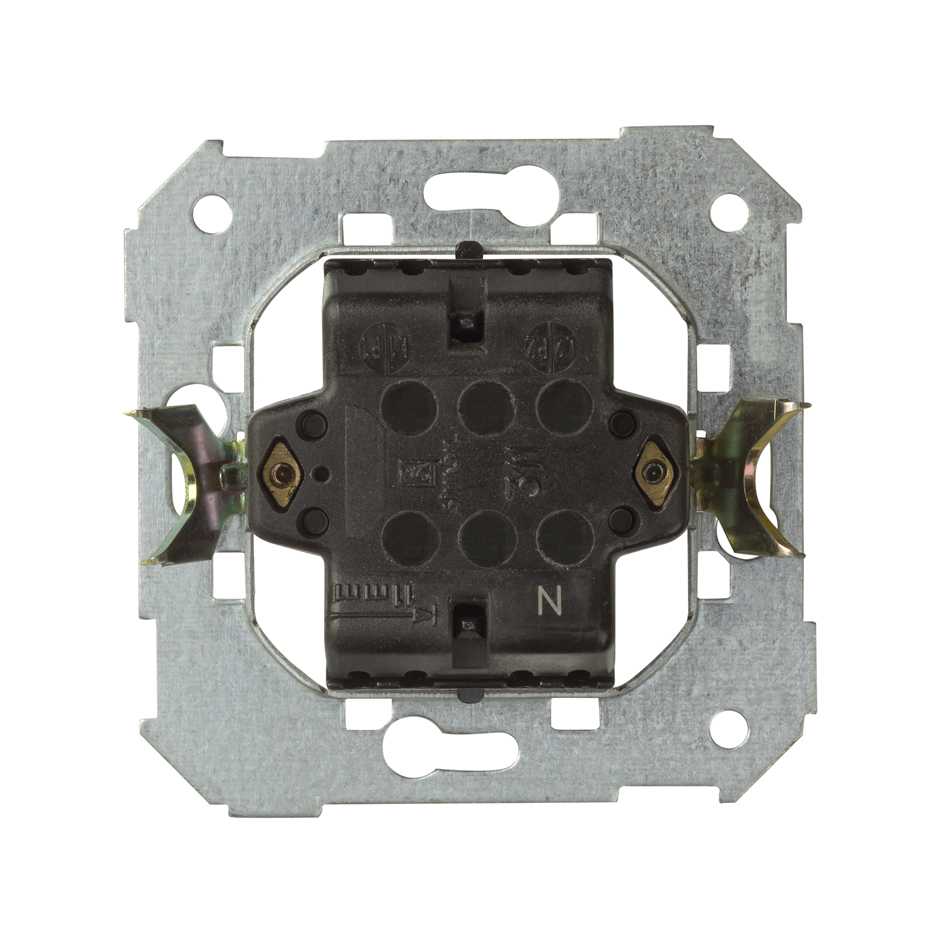

Single-pole switch 10AX 250V~ rear view

Single-pole switch 10AX 250V~ rear view

This image represents the combined solution of different references

This image represents the combined solution of different references

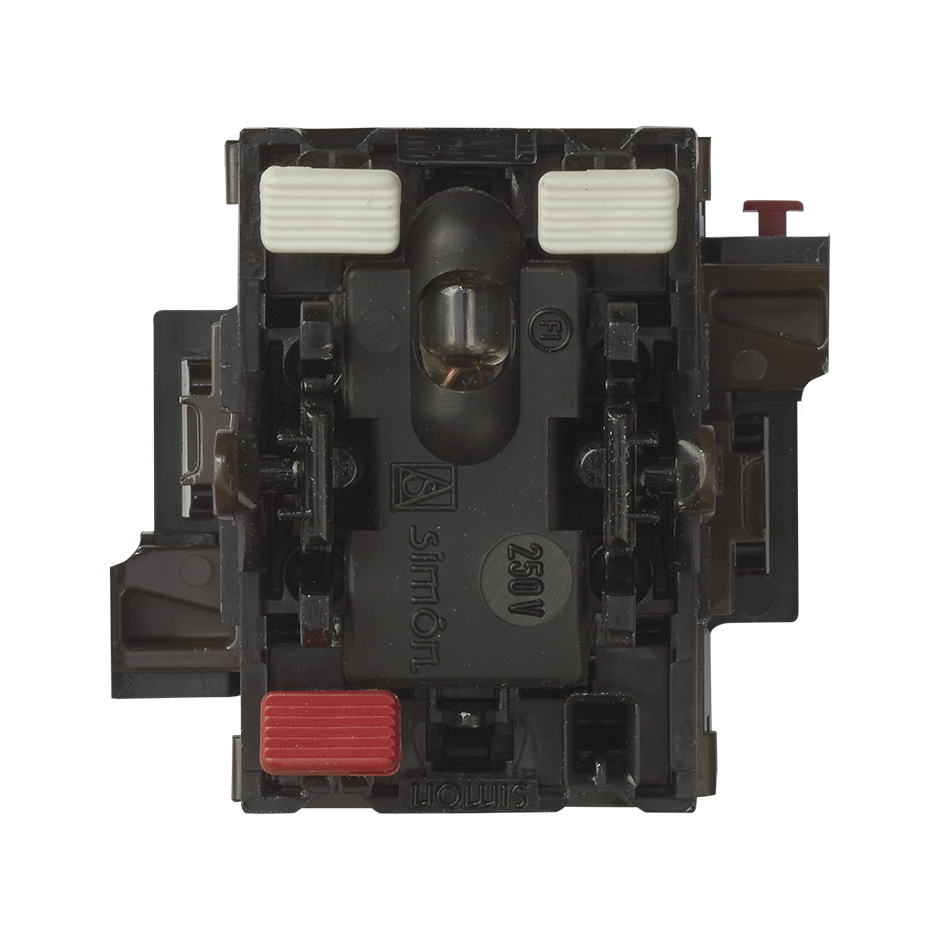

Single-pole switch 10AX 250V~ front view

Single-pole switch 10AX 250V~ front view

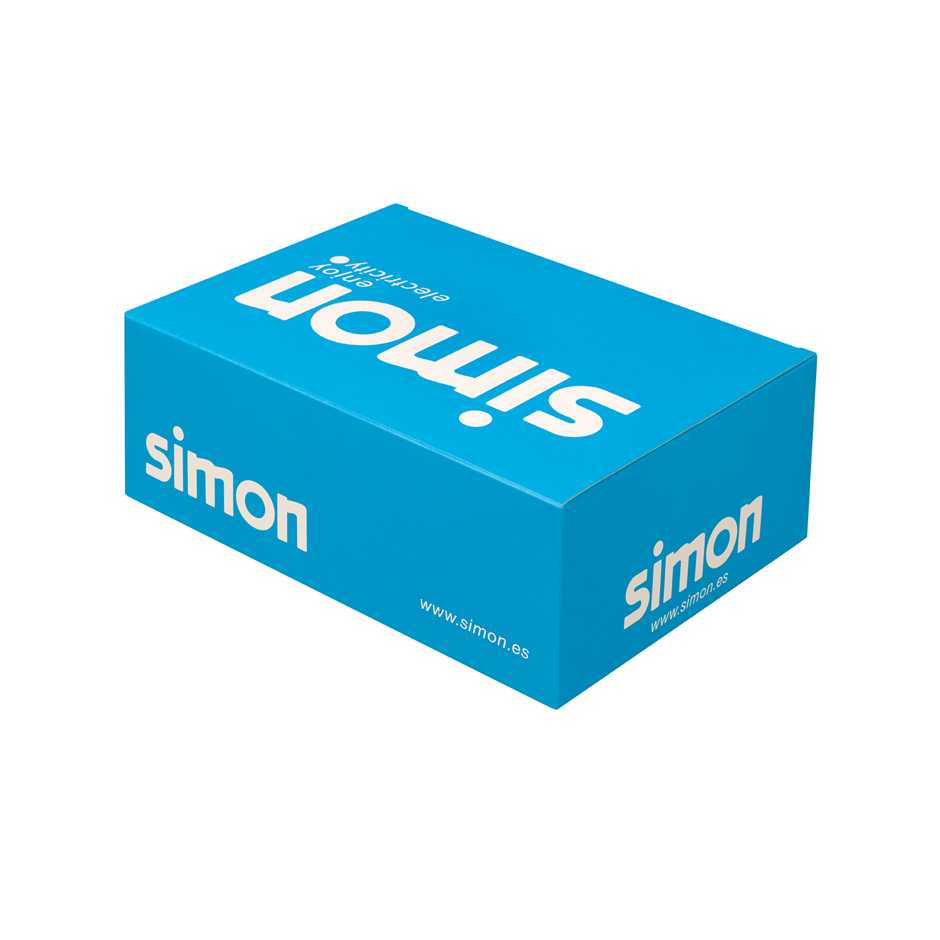

Single-pole switch 10AX 250V~ packaging

Single-pole switch 10AX 250V~ packaging

Single-pole switch application in corridor

Single-pole switch application in corridor

Ref
75102-39

Single-pole switch 10AX 250V~ with built in pilot light and fast terminal connection system

Price/Unit
€21.18
Packaging quantity
10 Units

Available downloads

Data sheet

75102-39.pdf

Outstanding Features
Series
Simon 75
Series Compatibility

Simon 82

Simon 82 Nature

Simon 82 Detail

Simon 75

Simon 82 Concept

Product Information

Single-pole switch with quick terminal connection, 10A of current and 250V of voltage.

It is part of the Simon 75 series and it has a rocker operation type.

This switch is suitable both for surface and flush mounting and can be combined with the reference 31803-31 in case you have to replace the indicator light.

It supports a cable section of 1.5 to 2.5 mm with a stripped 11mm and can be installed in places with a temperature of between 5 and 40ºC, although it can withstand extreme temperatures of -25 to 50ºC.

It is made of metal components with halogen-free thermoplastic insulation and in accordance with the regulations UNE-EN 60669-1:2002 + A1:2003 + A2:2009.

Simon 75 is a range of products that supports multiple colour combinations and is suitable for all types of decorative spaces. It has frames in 13 finishes, intermediate pieces in 15 colours and rockers in 6 different colours. Also, this series stands out for the rectangular design of the frame trim.

Basic information
  • Compatibility

    Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

  • Remarks

    Can be combined with article 31803-31 if replacing the light indicator.

  • Packaging contents

    Mechanism

Technical information
  • Market available

    CE

  • CE certification

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Consumption indicator (mA)

    1 mA

  • Intensity (A)

    10 AX

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.062 KGM

  • Product gross weight

    0.062 KGM

  • Product EAN

    8421053255742

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    0.62 KGM

  • Packaging gross weight

    0.615 KGM

  • Packaging EAN

    8421053003527
