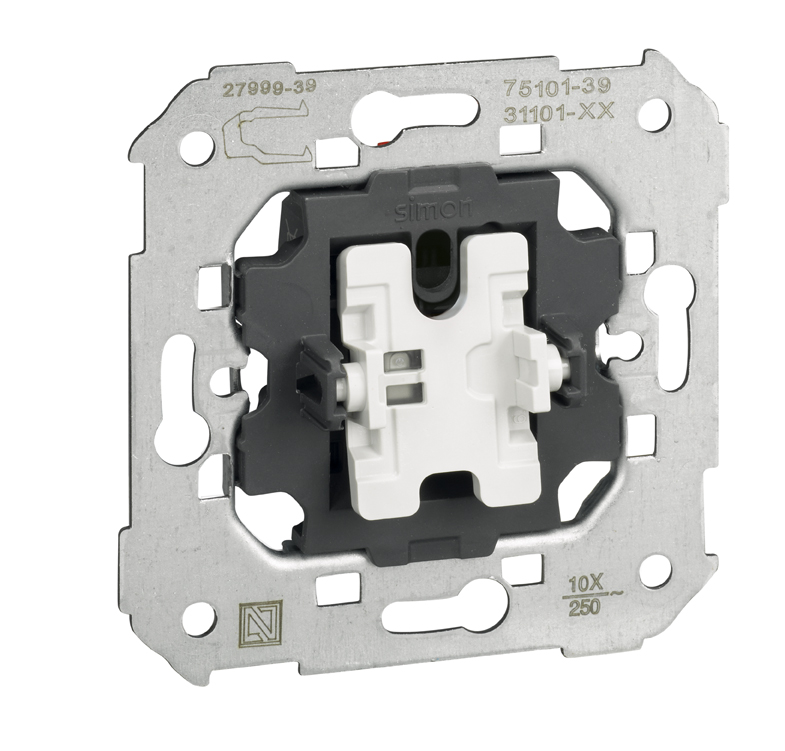

Single-pole switch 10AX 250V~ front view

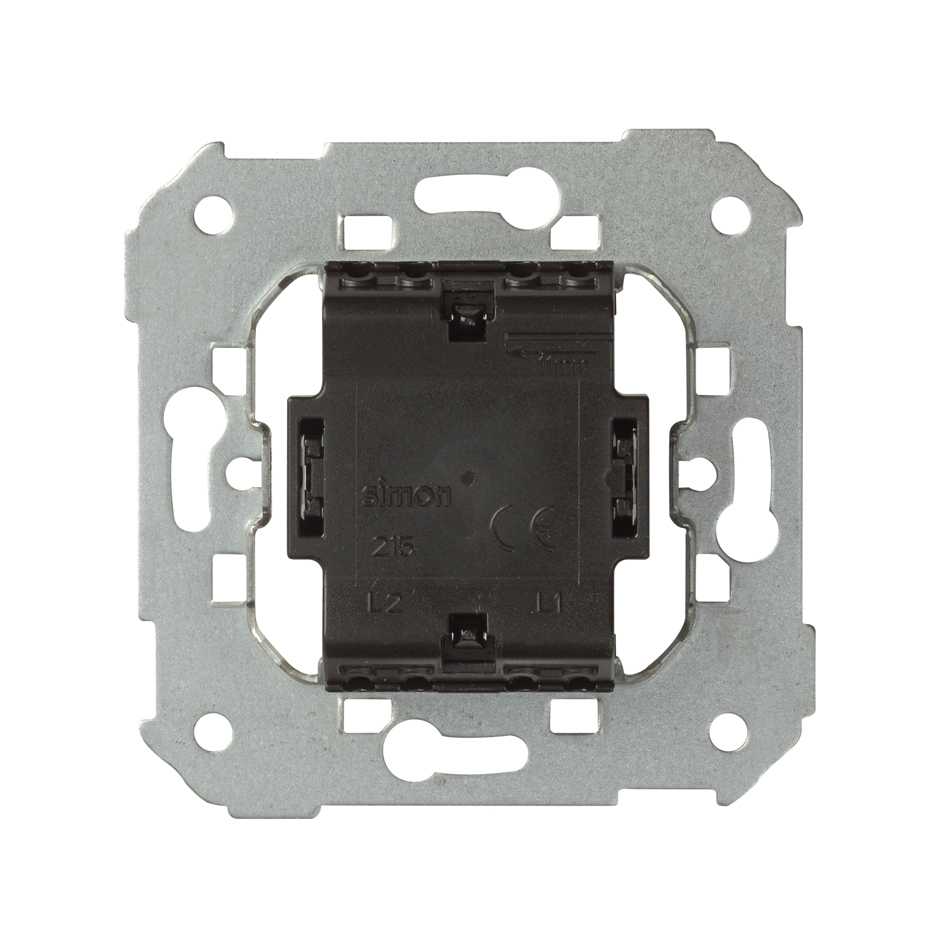

Single-pole switch 10AX 250V~ rear view

This image represents the combined solution of different references

This image represents the combined solution of different references

This image represents the combined solution of different references

This image represents the combined solution of different references

Single-pole switch 10AX 250V~ perspective view

Single-pole switch application in kitchen

Single-pole switch application in kitchen

Single-pole switch 10AX 250V~ front view

Single-pole switch 10AX 250V~ rear view

This image represents the combined solution of different references

This image represents the combined solution of different references

This image represents the combined solution of different references

This image represents the combined solution of different references

Single-pole switch 10AX 250V~ perspective view

Single-pole switch application in kitchen

Single-pole switch application in kitchen

Ref
75101-39

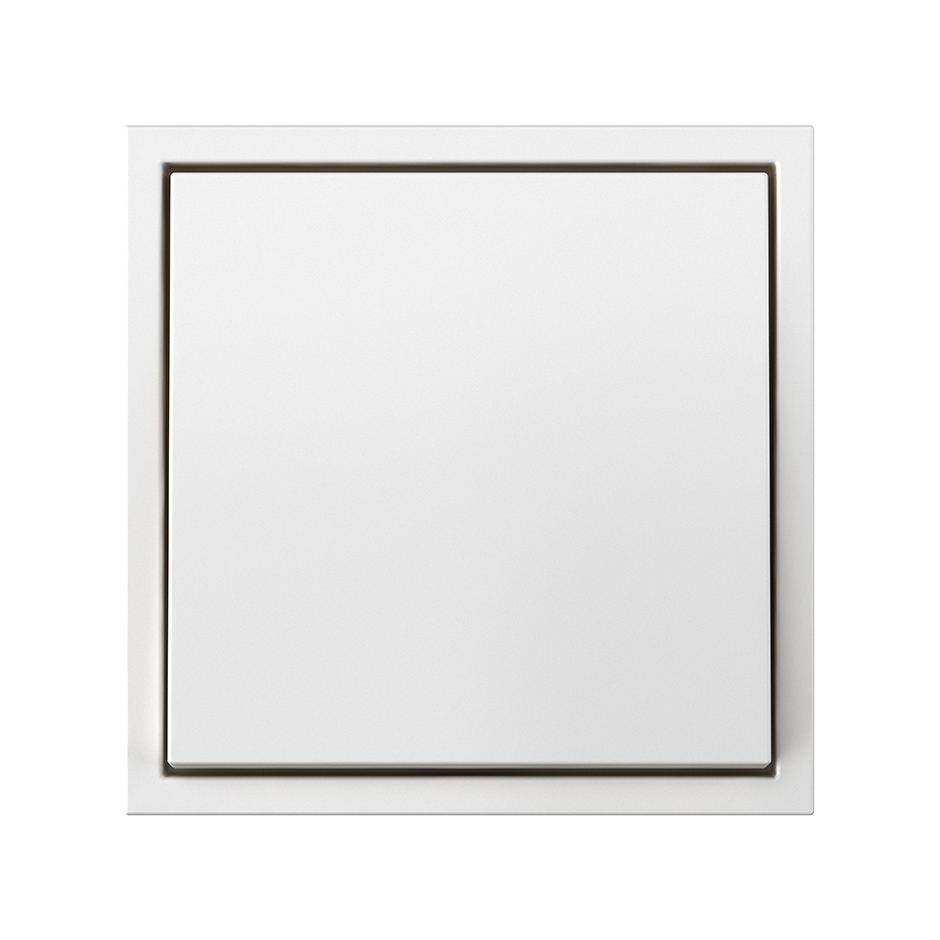

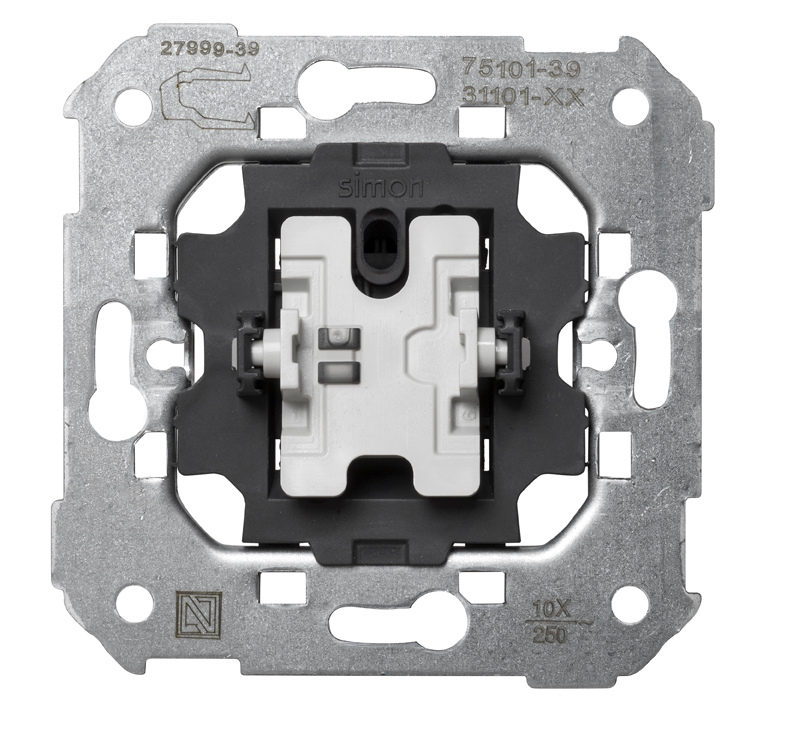

Unipolar switch 10 AX 250V~ with quick terminal connection system Simon 75

Price/Unit
€8.62
Packaging quantity
10 Units

Available downloads

Technical specifications
75101-39-en-datasheet.pdf
Product declaration

  1. UES0015.pdf [645KB]

Drawing and dimensions

  1. D75101_D75201_D75211.jpg [147KB]

Drawing files

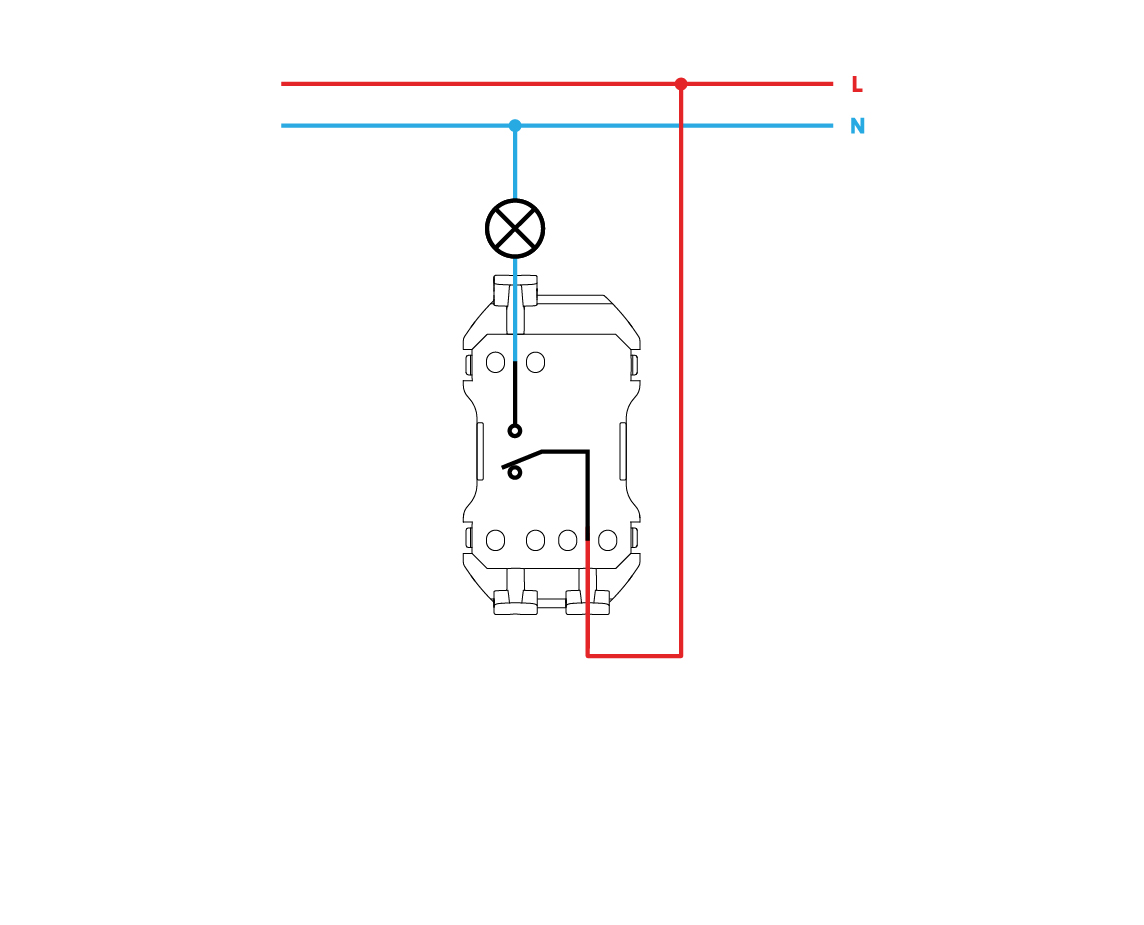

  1. E75101-39.jpg []

Certificates

AENOR 030-001940 20230913.pdf

Do you need advice?
Outstanding Features
Series
Simon 75
Series Compatibility

Simon 82 Detail

Simon 75

Simon 82 Concept

Simon 82

Simon 82 Nature

Simon 360

<p class=></p>
Ref
82010-93
Single rocker for switches cold aluminium Simon 82 Detail
<p class=></p>
Ref
8200017-098
Single rocker for push-button switch with bell Simon 82 Concept
<p class=></p>
Ref
8200017-096
Single rocker for push-button switch with bell Simon 82 Concept
<p class=></p>
Ref
8200017-090
Single rocker for push-button switch with bell Simon 82 Concept
<p class=></p>
Ref
8200010-098
Single rocker for mechanisms Simon 82 Concept
<p class=></p>
Ref
8200010-096
Single rocker for mechanisms Simon 82 Concept
<p class=></p>
Ref
8200010-090
Single rocker for mechanisms Simon 82 Concept
<p class=></p>
Ref
82010-38
Single rocker for switches graphite Simon 82
<p class=></p>
Ref
82010-31
Single rocker for switches ivory Simon 82
<p class=></p>
Ref
82010-30
Single rocker for switches white Simon 82
<p class=></p>
Ref
82010-34
Single rocker for switches champagne Simon 82
<p class=></p>
Ref
82010-33
Single rocker for switches aluminium Simon 82
<p class=></p>
Ref
8200017-094
Single Rocker with bell engraving for push button Champagne Simon 82 Concept
<p class=></p>
Ref
8200010-094
Single Rocker for control mechanisms Champagne Simon 82 Concept
<p class=></p>
Ref
36000610-190
Frame for 1 element white matte with aligner Simon 360
<p class=></p>
Ref
36000610-099
Frame for 1 element sand matte with aligner Simon 360
<p class=></p>
Ref
36000610-098
Frame for 1 element matte black with aligner Simon 360
<p class=></p>
Ref
36000010-190
Individual rocker for foldable mechanism white matte Simon 360
<p class=></p>
Ref
36000010-099
Individual rocker for toggle mechanism sand matte Simon 360
<p class=></p>
Ref
36000010-098
Individual rocker for foldable mechanism matte black Simon 360
Product Information
Downloads
Support

1 unipolar switch of 10 AX and 250V~ with quick terminal connection system and rocking operation, compatible and belonging to the Simon 75 brand. It offers the possibility of implementing a signaling function through a signaling support and key with viewer. For installation, it will be sufficient to press or place it on the surface, the accepted cable section is from 1.5 to 2.5 mm and it includes 11 mm of stripped cable. The material is made of metal components with halogen-free thermoplastic insulation, able to oscillate between 5 and 40º, and capable of withstanding a maximum temperature range of -25 to 50º C, this item fully complies with the UNE-EN 60669-1:2002 + A1:2003 + A2:2009 standard.

Basic information

  • Compatibility

    Marcos Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 Concept and Simon 82

  • Material

    Metal , Plastic

  • Packaging contents

    Mechanism

Technical information

  • Market available

    CE

  • Number of contacts

    2

  • Number of wires

    2

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • Frequency (Hz)

    50 Hz

  • Intensity (A)

    10 AX

  • IP Rating

    IP21

  • Linkable

    No

  • Nominal voltage (V~)

    230 V~

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Recess dimension (mm)

    40

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

  • Depth (mm)

    29.5

  • Dimensions (mm)

    74 x 74 x 38,3

Installation and maintenance

  • Cable stripping necessary (mm)

    15

  • Claw

    Simon 27

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Removal of cover

    Only with tool

  • Type of terminal connection

    Fast

Regulation

  • Regulations

    Dir. 2014/35/UE LVD|Dir. 2011/65/UE RoHS + post. mod.|EN 60669-1:2018|EN IEC 63000:2018

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.058KGM

  • Product gross weight

    0.058KGM

  • Product EAN

    8421053255735

  • Packaging quantity

    10

  • Packaging height

    83MMT

  • Packaging width

    165MMT

  • Packaging length

    221MMT

  • Packaging volume

    3026595MMQ

  • Packaging net weight

    0.58KGM

  • Packaging gross weight

    0.565KGM

  • Packaging EAN

    8421053003510

Do you need advice?

If you need to contact us, please click here to send us a message and we will respond as soon as possible.

Contact us
