Push-button dimmer for lamps with electronic transformer

Push-button dimmer for lamps with electronic transformer

REFERENCE NO.: 7500316-039

R.P.: Price on request

PACKAGING: 5Units

Variables de unidades de obras ---> -false-false

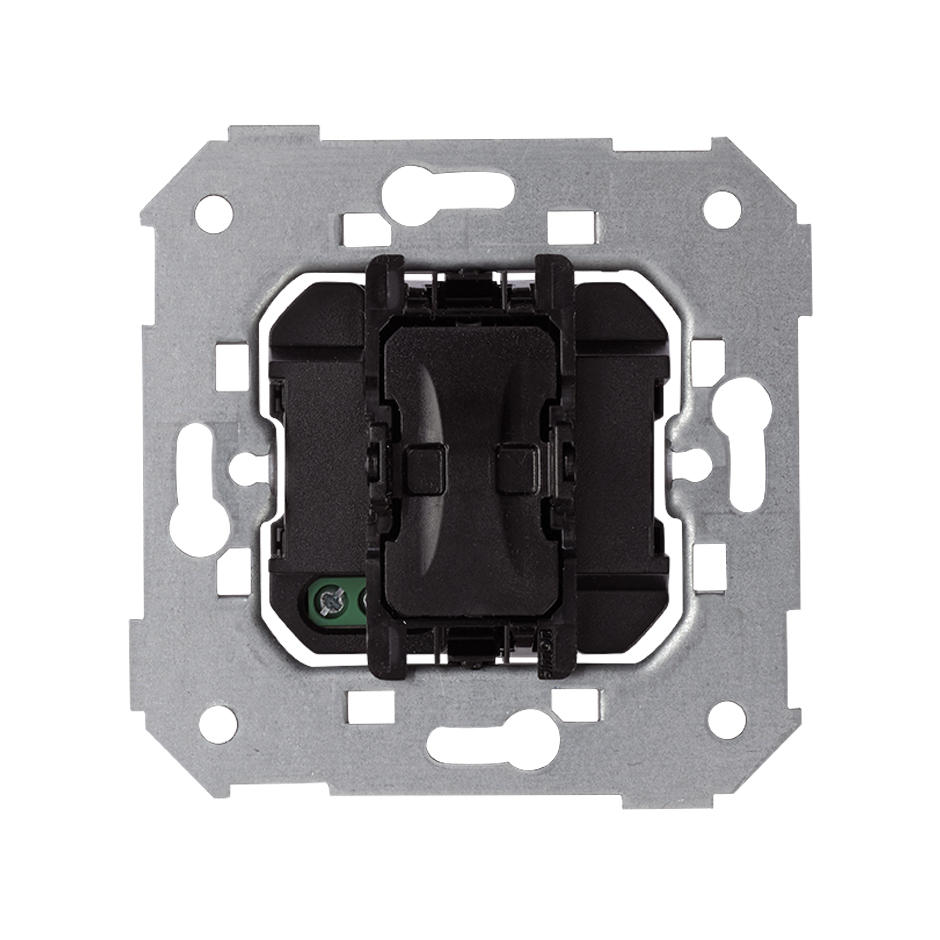

Push-button dimmer for lamps front view


This image represents the combination of different references

Push-button dimmer for lamps packaging


SERIES: Simon 75 POWER SUPPLY: 230 V~ TYPE: Dimmer / Push-button switch MINIMUM POWER: 40 W MAXIMUM POWER: 400 W TYPE OF MECHANISM: Push Rockers

82010-30

82010-31

82010-33

82010-34

82010-38

82010-93

Product description

In the collection of mechanisms of the Simon 75 series, we find the regulator for lamps push-button switch that operates with an electronic transformer. Consists of a single element in its individual version. Its reference is the 7500316-039. It has a voltage of 230 V ~ The installation can be perform in surface-mounted or in any universal recessed box. It is manufactured with different electronic components, coated with a insulation made of halogen-free thermoplastic. Its terminal system is by screw and its operation is by pulsation. Supports a cable section between 1.5 and 2.5 mm and wire stripping of 7 mm.

BASIC INFORMATION

Series: Simon 75

Version: Single

Power supply: 230 V~

Frequency: 50 Hz

Type: Dimmer

Minimum power: 40W

Maximum power: 400 W

Compatible with 230V incandescent and halogen lamps: 400 W

Compatible with halogens with electromagnetic transformer: No

Compatible with halogens with electronic transformer: 400 VA

Compatible with low consumption: No

Compatible with fluorescent lamps: No

Compatible with fluorescent lamps with 1-10V dimmable electronic reactance: No

Compatible with LED lamps: No

Compatible with motors: No

Indicator function: No

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 and Simon 88 frames

Packaging contents: Push-button dimmer and instruction sheet

Remarks: Has an auxiliary input to allow control via 5 mechanical push-button switches.

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Cable stripping necessary: 7 mm

IP rating: 20

Number of contacts: 3

Number of wires: 2

Number of controllable circuits: 1

Maximum quantity per circuit: 1

Compatible with mechanical switch: No

Compatible with mechanical 2-way/crossover switch: No

Compatible with mechanical push button: Yes

Compatible with electronic auxiliary: No

Manufacturing material: Electronic components with halogen-free thermoplastic insulation

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-1:2004 + EN 60669-2-1:2004 A1:2009 + EN 60669-2-1:2004 A12:2010

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 0 to 55Âº C

Storage temperature range: 15 to 55Âº C

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 5

Box measurement unit: MM

Height: 57.000

Wide: 76.000

Depth: 76.000

Box volume: 0.022

Box volume measurement unit: HL

Net weight of box: 0.505

Unit weight of box: KGM

EAN code: 8421053080498

Available in multiple box: No

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: UN

Unit weight of multiple box: KG

Available on pallet: No
