Ref
74001038-393

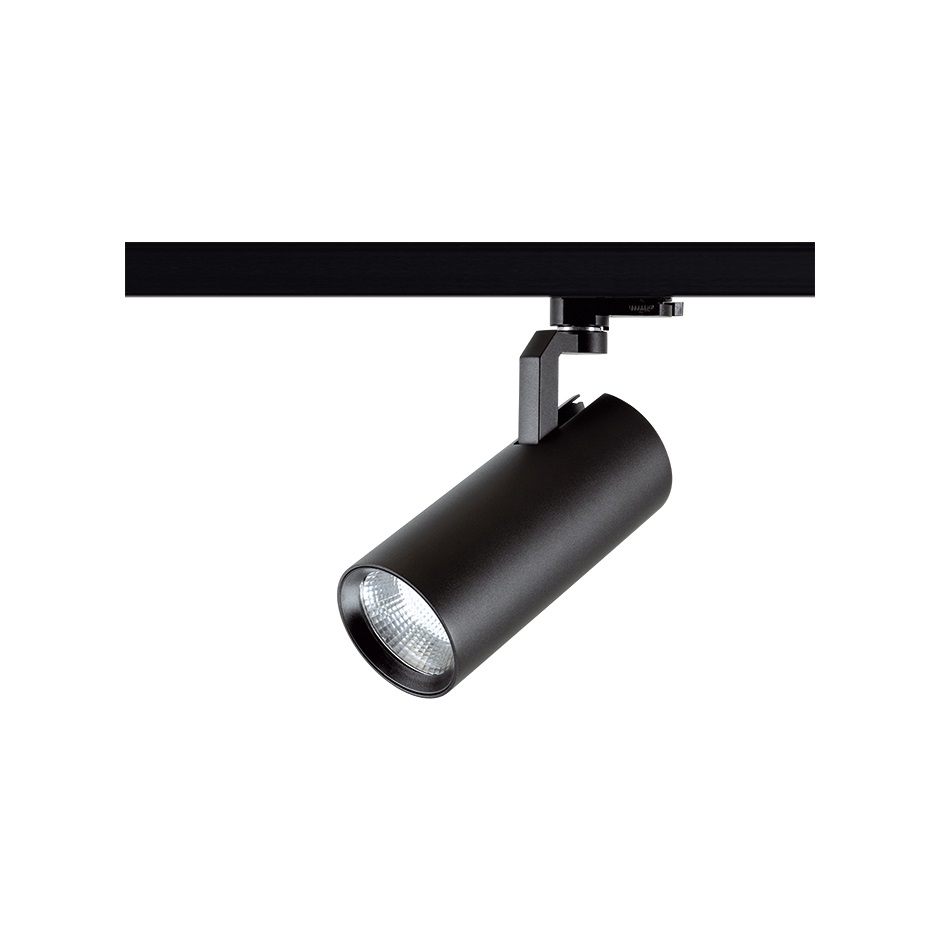

Spotlight 740.01 Rail 3000 K Flood CR90 Black

Price/Unit
€141.19
Discontinued
Packaging quantity
1 Unit
Outstanding Features
Series
Simon 740
Model
Spotlights
Range
740
Series Compatibility

Simon 740

Product Information

The Spotlight 740.01 Rail 3000K Flood CR90 Black is a spotlight, which stands out, especially for the high colour rendering index (CRI) that offers the purchaser, with a data 90 about 100. This number as high allows the use of the spotlight in spaces as delicate such as art galleries, museums, exhibitions, due to its high quality. A spotlight that it is easy to install thanks to its installation of type rail.

It is a spotlight that makes it possible to illuminate a general but also allows the organisation elements in a larger space. With this is intended to create areas with the light for certain elements stand out within the room, something very useful on all types of surfaces, the industry retail or restaurants. The colour temperature of 3000 K makes the spotlight issue a warm white light type very pleasant and ideal for creating an area comfortable with light.

It is of type Flood optics, which allows you to enjoy an angle of opening the light beam of at least 25 °, greater than other optics and the Spot. In terms of protection rating IP, the spotlight with data of 20.

Basic information
  • Lighting Description

    SIMON spotlight 740, cylindrical with diameter of 66mm. For installation on a three-phase rail, with LED technology consisting of high-power LEDs with 25° angle Flood optics, made of aluminium and painted textured black. Electronic control gear built into the luminaire, with ON/OFF control. Lumens available: 1780 lm / 3000 K and 1830 lm / 4000 K With total luminaire consumption of 20 W (actual system efficiency of up to 91.5 lm/W). CRI>80. Mains voltage 220-240 V AC. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: ø=66mm; height = 181mm. IP20. Luminaire weight 0.7 Kg. Photobiological safety: Exempt group. CE marking.

  • Model

    Spotlights

  • Range

    740

  • Application

    Accent lighting , General lighting

  • Remarks

    This version is only available on request. For information on terms please contact our commercial representatives.

Technical information
  • IP Rating

    IP20

Lighting Information
  • CRI

    90

  • Colour temperature (k)

    3000 K

  • Colour type

    WW

  • L70 (ºC)

    30,000 h at 25 °C

  • Lighting efficiency (lm/w)

    76 lm/W

  • Lúmenes (lm)

    1520 lm

  • Optics

    Flood

  • Photobiological classification

    Exempt category

  • Power (W)

    20 W

  • Service life

    30 000 h

Installation and maintenance
  • Installation type

    Rail

Logistics Information
  • Product net weight

    0.6 KGM

  • Product gross weight

    0.8 KGM

  • Packaging quantity

    1

  • Packaging height

    250 MMT

  • Packaging width

    136 MMT

  • Packaging length

    136 MMT

  • Packaging volume

    4624000 MMQ

  • Packaging net weight

    0.6 KGM

  • Packaging gross weight

    0.8 KGM

  • Packaging EAN

    8421053215593
