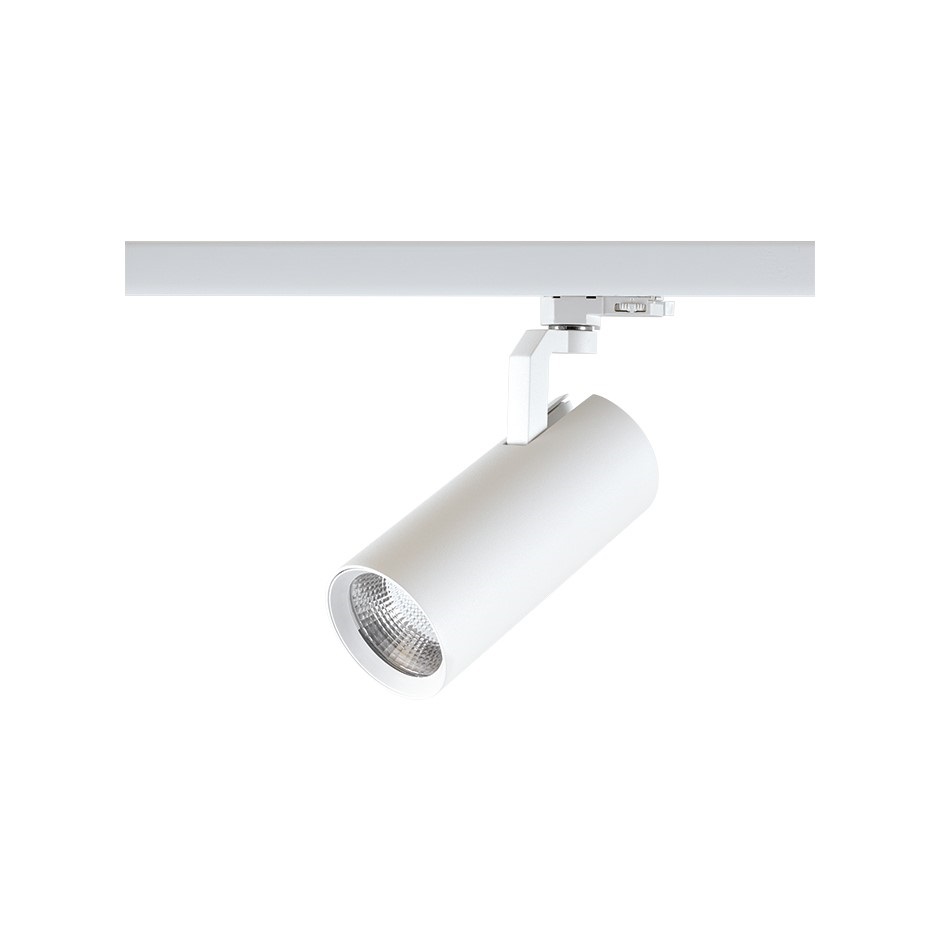

Spotlight 740.01 Rail 3000 K Flood CR90 White perspective view

Ref
74001030-393

Spotlight 740.01 Rail 3000 K Flood CR90 White

Price/Unit
Price on request
Discontinued
Packaging quantity
1 Unit

Available downloads

Technical specifications
74001030-393-datasheet-en.pdf
Installation manual

  1. Manual_Instalacion_Proyector_740.pdf [3MB]

Photometry

  1. 74001030-393-photometry.ldt [45KB]

  2. 740_3.zip [738KB]

Do you need advice?
Outstanding Features
Series
Simon 740
Model
Spotlights
Range
740
Series Compatibility

Simon 740

<p class=>Spotlight 640.00 Rail WW Wide Flood White perspective view</p>
Ref
64000030-483
Spotlight 640.00 Rail WW Wide Flood White
<p class=>Spotlight 740.01 Rail 4000K Flood White perspective view</p>
Ref
74001030-384
Spotlight 740.01 Rail 4000K Flood White
<p class=>Spotlight 640.10 Flush mount WW CRI92 Wide Flood Black perspective view</p>
Ref
64010038-493
Spotlight 640.10 Flush mount WW CRI92 Wide Flood Black
<p class=>Perspective view Spotlight 615 rail 4000 K Spot white</p>
Ref
61500030-284
Spotlight 615 rail 4000 K Spot white
Product Information
Downloads
Support

The Spotlight 740.01 Rail 3000K Flood CR90 White is a spotlight 740 of the range of Simon that stands out first due to the high colour rendering index that reaches in operation, with a data 90 about 100. This will located in the following ranking by spotlights with better CRI of the market. Its installation of type rail makes the installation of the spotlight, is carried out quickly and without any effort.

The IP rating of this spotlight is 20, which means that certain levels of dust does not affect its operation but the smallest contact with the water. By this must be far removed from any liquid to avoid to damage. The luminaire provides a long service life, which has to reach a minimum the 30000 hours of life at a constant temperature.

The light it emits the spotlight is a warm white light type that is very pleasant and eye-catching, something that is not be possible without the 3000 K of colour temperature that manages to reach the spotlight. It is of type Flood optics, which indicates that the angle of opening the light beam can reach the 25 ° opening.

Basic information

  • Lighting Description

    SIMON spotlight 740, cylindrical with diameter of 66mm. For installation on a three-phase rail, with LED technology consisting of high-power LEDs with 25° angle Flood optics, made of aluminium and painted textured white. Electronic control gear built into the luminaire, with ON/OFF control. Lumens available: 1780 lm / 3000 K and 1830 lm / 4000 K With total luminaire consumption of 20 W (actual system efficiency of up to 91.5 lm/W). CRI>90. Mains voltage 220-240 V AC. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: ø=66mm; height = 181mm. IP20. Luminaire weight 0.7 Kg. Photobiological safety: Exempt group. CE marking.

  • Model

    Spotlights

  • Range

    740

  • Application

    Accent lighting , General lighting

Technical information

  • IP Rating

    IP20

Lighting Information

  • CRI

    90

  • Colour temperature (k)

    3000 K

  • Colour type

    WW

  • L70 (ºC)

    30,000 h at 25 °C

  • Lighting efficiency (lm/w)

    76 lm/W

  • Lúmenes (lm)

    1520 lm

  • Optics

    Flood

  • Photobiological classification

    Exempt category

  • Power (W)

    20 W

  • Service life

    30 000 h

Installation and maintenance

  • Installation type

    Rail

Logistics Information

  • Product net weight

    0.6KGM

  • Product gross weight

    0.8KGM

  • Packaging quantity

    1

  • Packaging height

    250MMT

  • Packaging width

    136MMT

  • Packaging length

    136MMT

  • Packaging volume

    4624000MMQ

  • Packaging net weight

    0.6KGM

  • Packaging gross weight

    0.8KGM

  • Packaging EAN

    8421053215470
